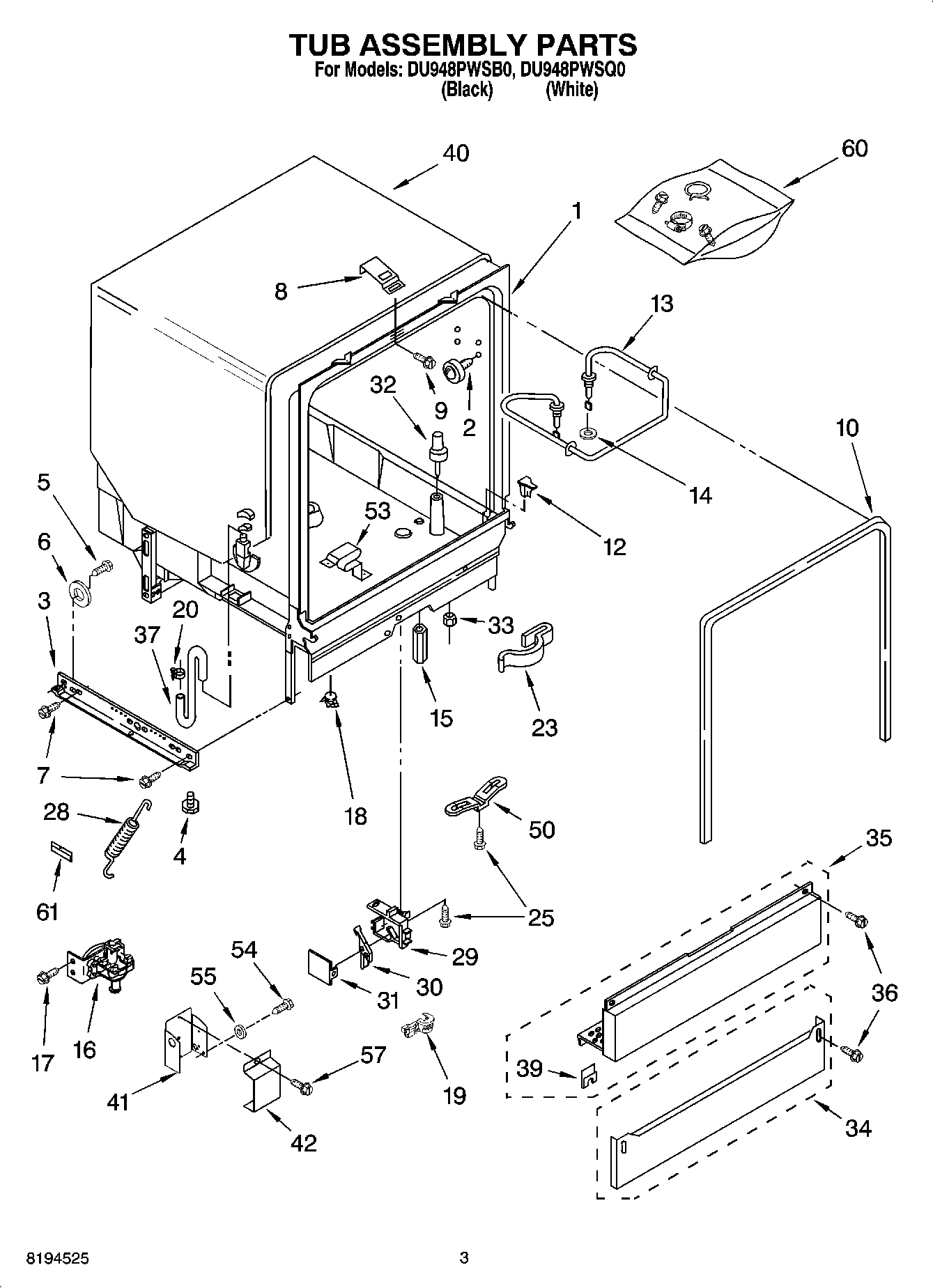

DU948PWSB0 03 – TUB ASSEMBLY PARTS

Products

PositionProduct
1Tub Assembly
2WP8528831 Whirlpool Dishwasher Mounting
3Runner (2)
48193716 Whirlpool Leveling Leg
5Screw (2)
6WP302819 Whirlpool Dishwasher Wheel
7SCREW
8Plate, Latch
9WP3374720 Whirlpool Dishwasher Screw
10WPW10509257 Whirlpool Door Gasket
12DEFLECTOR-DISHWASHER
13WPW10082896 Whirlpool Dishwasher Heater
14WP717273 Whirlpool Dishwasher Rubber Washer
15WPW10477552 Whirlpool Dishwasher Terminal Nut
16W10844024 Whirlpool Water Inlet Valve
17WP489069 Whirlpool Compactor Screw
18WP661566 Whirlpool High Limit Thermostat
19W11384788 Whirlpool Dishwasher Relief Strainer
20WP596669 Whirlpool Hose Clamp
23WP3400935 Whirlpool Dishwasher Clip
25WP304231 Whirlpool Dishwasher Screw
28WP3379383 Whirlpool Dishwasher Spring
29Housing, Float Switch
30Switch, Float
318318219 Whirlpool Dishwasher Cover Housing
32WP3376397 Whirlpool Dishwasher Float Assembly
33Nut
34WP3379921 Whirlpool Dishwasher Toe Panel
34WP3379920 Whirlpool Dishwasher Toe Panel
35Access Panel & Clip Assembly (Includes Items 11 & 12) (White Model)
35Access Panel & Clip Assembly (Includes Items 11 & 12) (Black Model)
36WP302868 Whirlpool Screw
37Hose, Inlet
39Clip, Grounding
40W11086533 Whirlpool Dishwasher Shield
41Terminal Box
42300068 Whirlpool Dishwasher Cover Assembly
50W10539489 Whirlpool Dishwasher Bracket-Stat
533379740 Whirlpool Dishwasher Heater Support
54WP3400014 Whirlpool Dishwasher Screw
55WP3378128 Whirlpool Dishwasher Washer
57Screw
60Miscellanous Parts Bag (Includes 2 Screws & 2 Hose Clamps)
61Friction Pad (Velcro)
