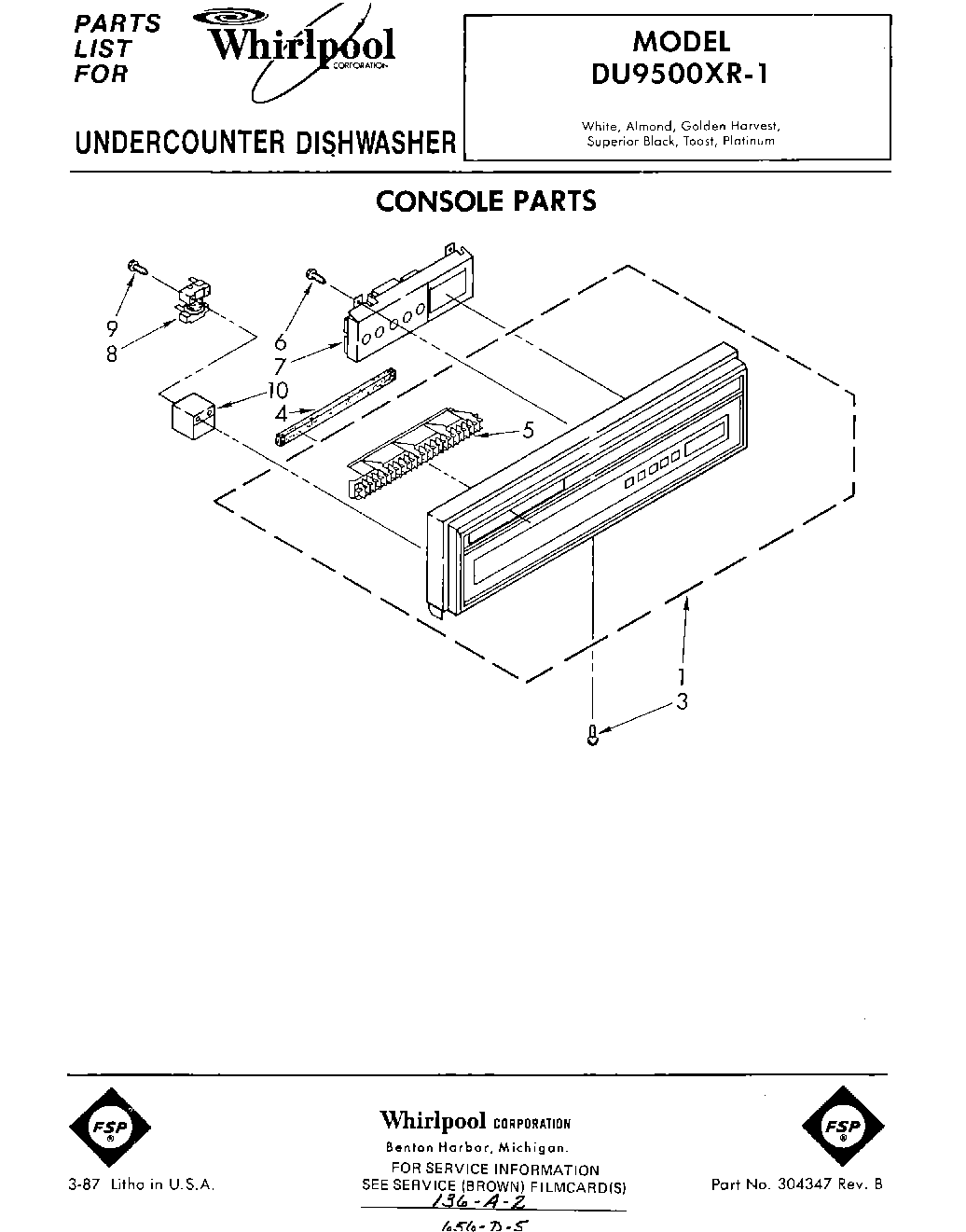

DU9500XR1 01 – CONSOLE

Written by

Products

Position	Product
1	Console
3	WP488729 Whirlpool Refrigerator Door Screw
4	Baffle
5	Grill, Vent (Includes Illus 11)
6	WP304231 Whirlpool Dishwasher Screw
7	Control, Electronic
8	Relay, Start
9	Screw, 7-18 x 1-3/8 Slot Hex Wash Hd
10	Barrier, Relay
