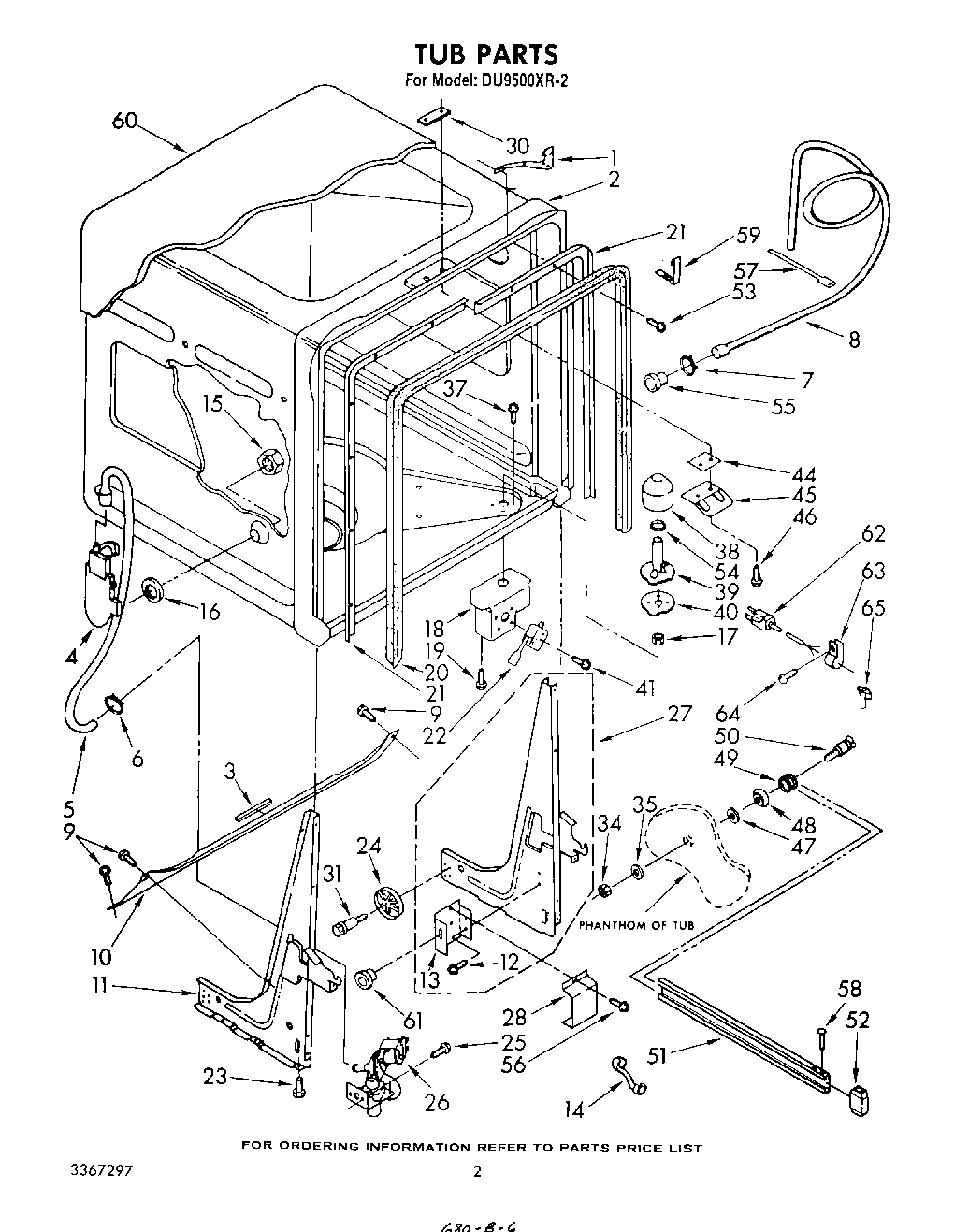

DU9500XR2 02 – TUB , LIT/OPTIONAL

DU9500XR2 02 – TUB , LIT/OPTIONAL

Written by

in

DU9500XR2 02 – TUB , LIT/OPTIONAL

Products

Position	Product
	WPL LIT3367228
	WPL LIT3367297
	WPL LIT304269
	WPL LIT304300
	WPL LIT3367559
1	Bracket, Mounting (2)
2	tub assembly
3	Edge Protector
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
9	WP302868 Whirlpool Screw
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Box, Terminal
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket
21	Retainer (L.H.)
21	Retainer (R.H.)
22	Switch, Pressure (Alternate)
22	Retainer-Main Top (2 Required)
22	Switch, Pressure (Alternate)
23	8193716 Whirlpool Leveling Leg
24	WP302819 Whirlpool Dishwasher Wheel
26	Valve, Water Inlet (Alternate)
26	Valve, Water Inlet (Alternate)
27	Leg & Hinge Assembly, R.H.
28	300068 Whirlpool Dishwasher Cover Assembly
30	Nut, Twin Spring
31	Screw, Shoulder
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	End Cap, Track (4)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
56	WP90767 Whirlpool Screw
57	WPW10144763 Whirlpool Tie Wire
58	WPL 303298
59	Clip, Gasket (2)
60	W11086533 Whirlpool Dishwasher Shield
61	WPL 302770
62	WPL 302764
63	Clamp, Strain Relief
64	WP489069 Whirlpool Compactor Screw
65	Toast
65	799344 Whirlpool Refrigerator Paint
65	Paint, Spray (13 Oz.) (Platinum)
65	72017 Whirlpool Appliance Touch-Up Paint White
65	Enamal, Toast (1 Qt. Uncut)
65	WPL 770754
65	350930 Whirlpool White Spray Paint
65	350956 Whirlpool Spray Assembly
65	Platinum (Uncut)
65	WPL 72112
65	350942 Whirlpool Spray Paint
65	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
65	72113 Whirlpool Touch-Up Paint
65	Kit, Epoxy Patch (White)
65	Vinyl Touch Up (Blue)
65	Golden Harvest (Uncut)
65	Almond (Uncut)
65	Leveler (Thinner)
65	WP72107 Whirlpool Touchup
65	Golden Harvest
65	285006 Whirlpool Spray
65	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
