DU9500XS0 05 – DISHRACK AND PANEL

DU9500XS0 05 – DISHRACK AND PANEL

Written by

in

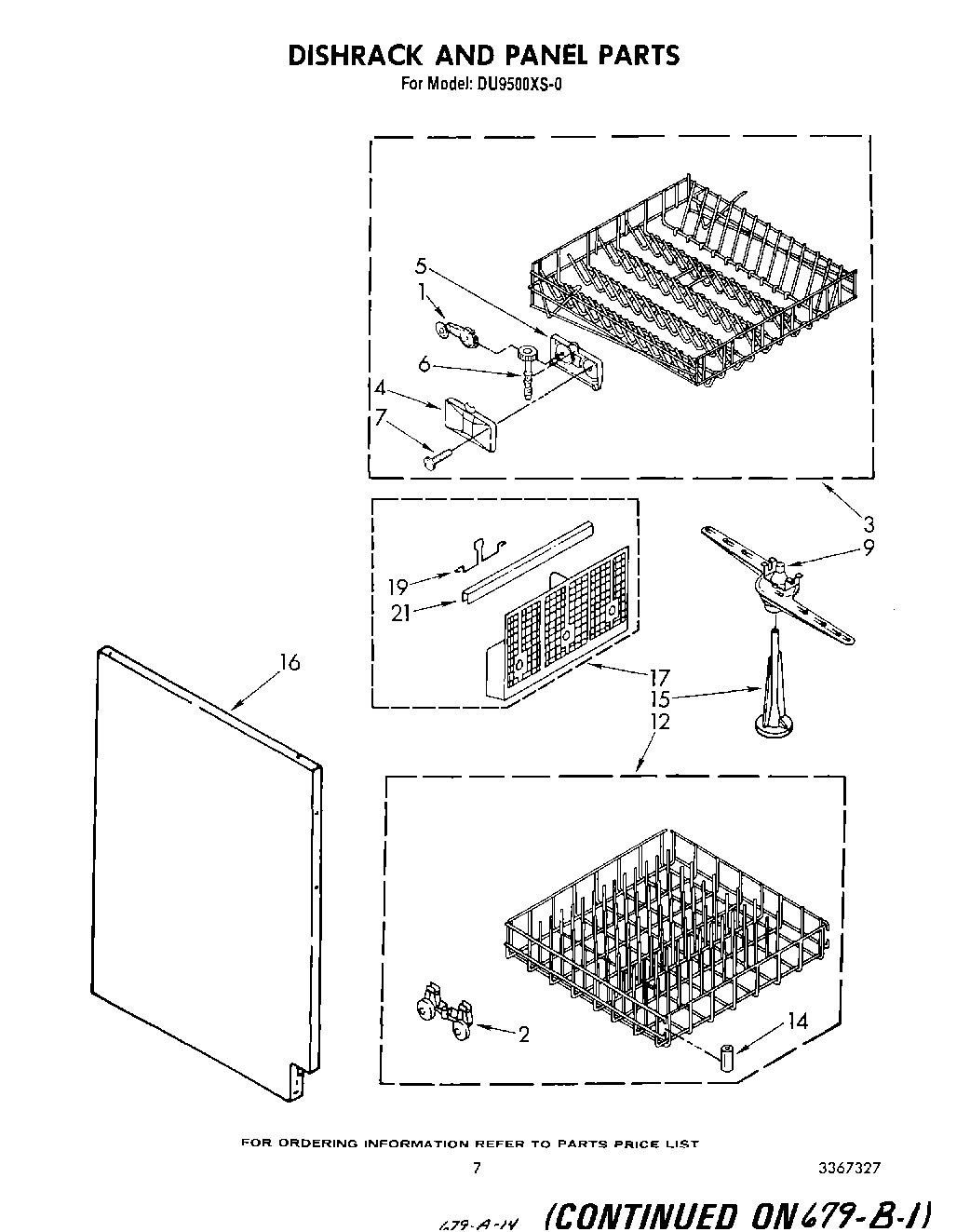

DU9500XS0 05 – DISHRACK AND PANEL

Products

PositionProduct
Panel, L.S.
1Wheel & Gear Assembly (4)
24317933 Whirlpool Lower Rack Wheels
3W11169039 Whirlpool Dishwasher Dish Rack
4Cover, Housing (2)
5Housing, Gear (2)
6Worm, Dishrack (2)
7WP9741232 Whirlpool Dishwasher Screw
9WP304204 Whirlpool Dishwasher Spray Arm
12W10311986 Whirlpool Dishwasher Lower Rack
14Bumper
15Tower
16Panel, R.S.
17Silverware Basket
19Handle, Basket
21Trim, Basket
