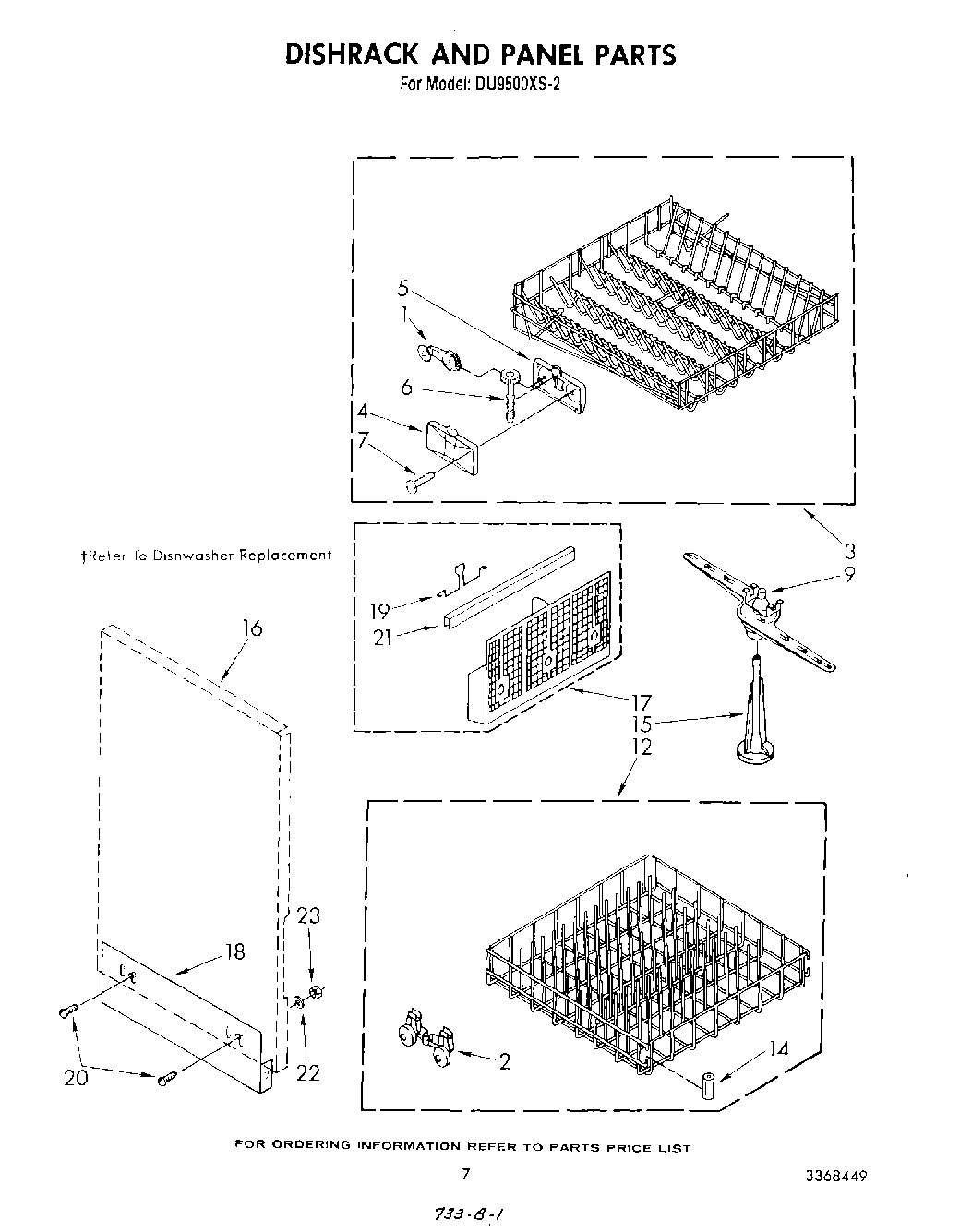

DU9500XS2 05 – DISHRACK AND PANEL

Products

Position	Product
1	Wheel & Gear Assembly (4)
2	4317933 Whirlpool Lower Rack Wheels
3	W11169039 Whirlpool Dishwasher Dish Rack
4	Cover, Housing (2)
5	Housing, Gear (2)
6	Worm, Dishrack (2)
7	WP9741232 Whirlpool Dishwasher Screw
9	WP304204 Whirlpool Dishwasher Spray Arm
12	W10311986 Whirlpool Dishwasher Lower Rack
14	Bumper
15	Tower
16	Panel, R.S.
17	Silverware Basket
18	Panel, Lower Side
19	Handle, Basket
20	Screw, Lower Side Panel Mounting (2)
21	Trim, Basket
22	W11089212 Whirlpool Washer
23	W10080180 Whirlpool Nut
