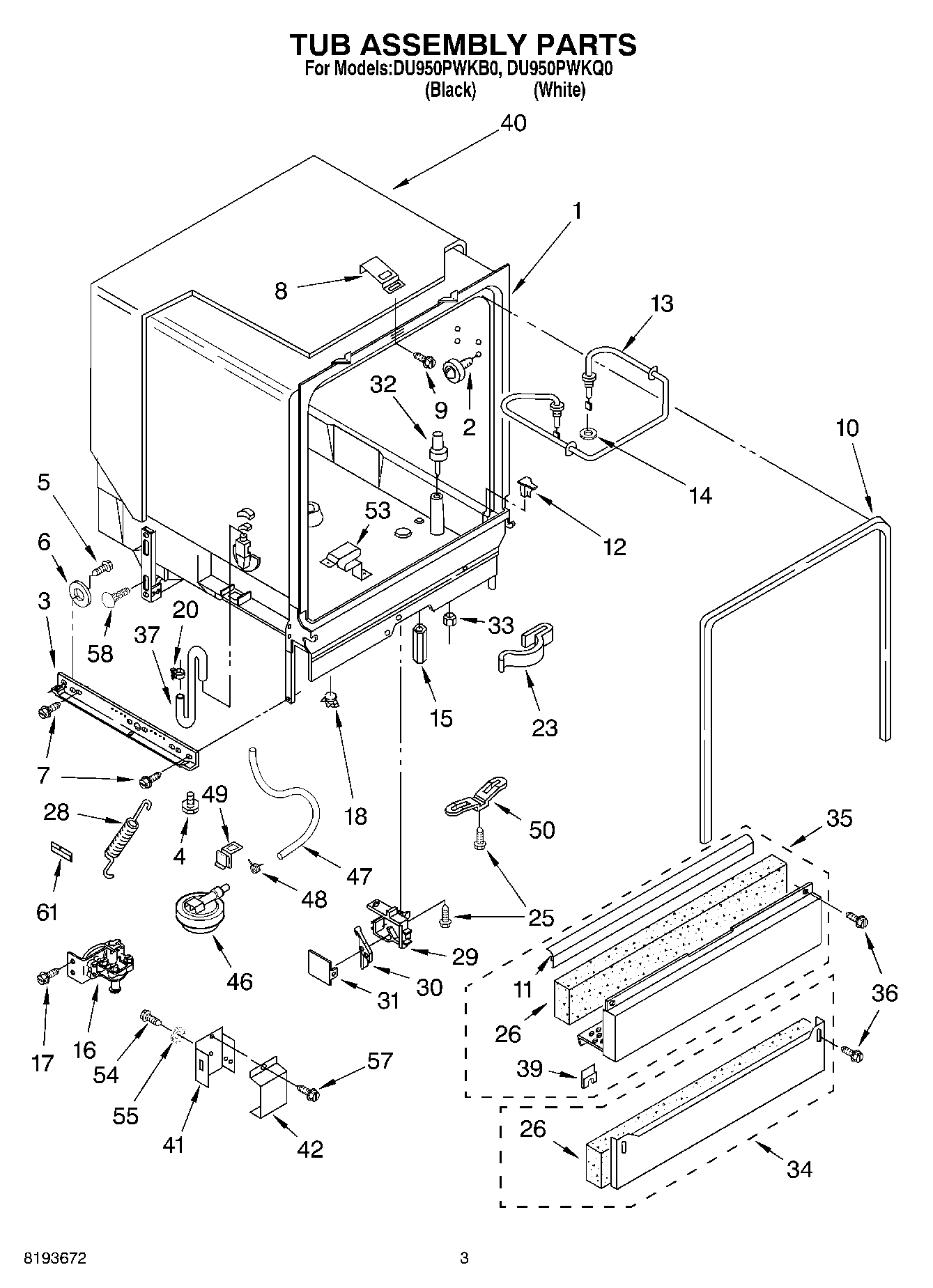

DU950PWKQ0 03 – TUB ASSEMBLY

Products

Position	Product
1	Tub Assembly
2	Tub, Wheel Assembly (8)
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	WP3374720 Whirlpool Dishwasher Screw
10	WPW10509257 Whirlpool Door Gasket
11	Barrier, Lower Vent
12	DEFLECTOR-DISHWASHER
13	WPW10082896 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	WPW10477552 Whirlpool Dishwasher Terminal Nut
16	W10844024 Whirlpool Water Inlet Valve
17	WP489069 Whirlpool Compactor Screw
18	WP661566 Whirlpool High Limit Thermostat
20	WP596669 Whirlpool Hose Clamp
23	WP3400935 Whirlpool Dishwasher Clip
25	WP304231 Whirlpool Dishwasher Screw
26	Insulation
28	WP3379383 Whirlpool Dishwasher Spring
29	Housing, Float Switch
30	Switch, Float
31	8318219 Whirlpool Dishwasher Cover Housing
32	WP3376397 Whirlpool Dishwasher Float Assembly
33	Nut
34	WP3379921 Whirlpool Dishwasher Toe Panel
34	WP3379920 Whirlpool Dishwasher Toe Panel
35	Panel, Access (Black)
35	Panel, Access
36	WP302868 Whirlpool Screw
37	Hose, Inlet
39	Clip, Grounding
40	W11086533 Whirlpool Dishwasher Shield
41	Terminal Box
42	300068 Whirlpool Dishwasher Cover Assembly
46	Switch, Pressure
47	Hose, Pressure Switch
48	Clamp, Hose (2)
49	Clip, Pressure Switch
50	W10539489 Whirlpool Dishwasher Bracket-Stat
53	3379740 Whirlpool Dishwasher Heater Support
54	WP3400014 Whirlpool Dishwasher Screw
55	WP3378128 Whirlpool Dishwasher Washer
57	Screw
58	WP304666 Whirlpool Dishwasher Retainer
61	Friction Pad (Velcro)
