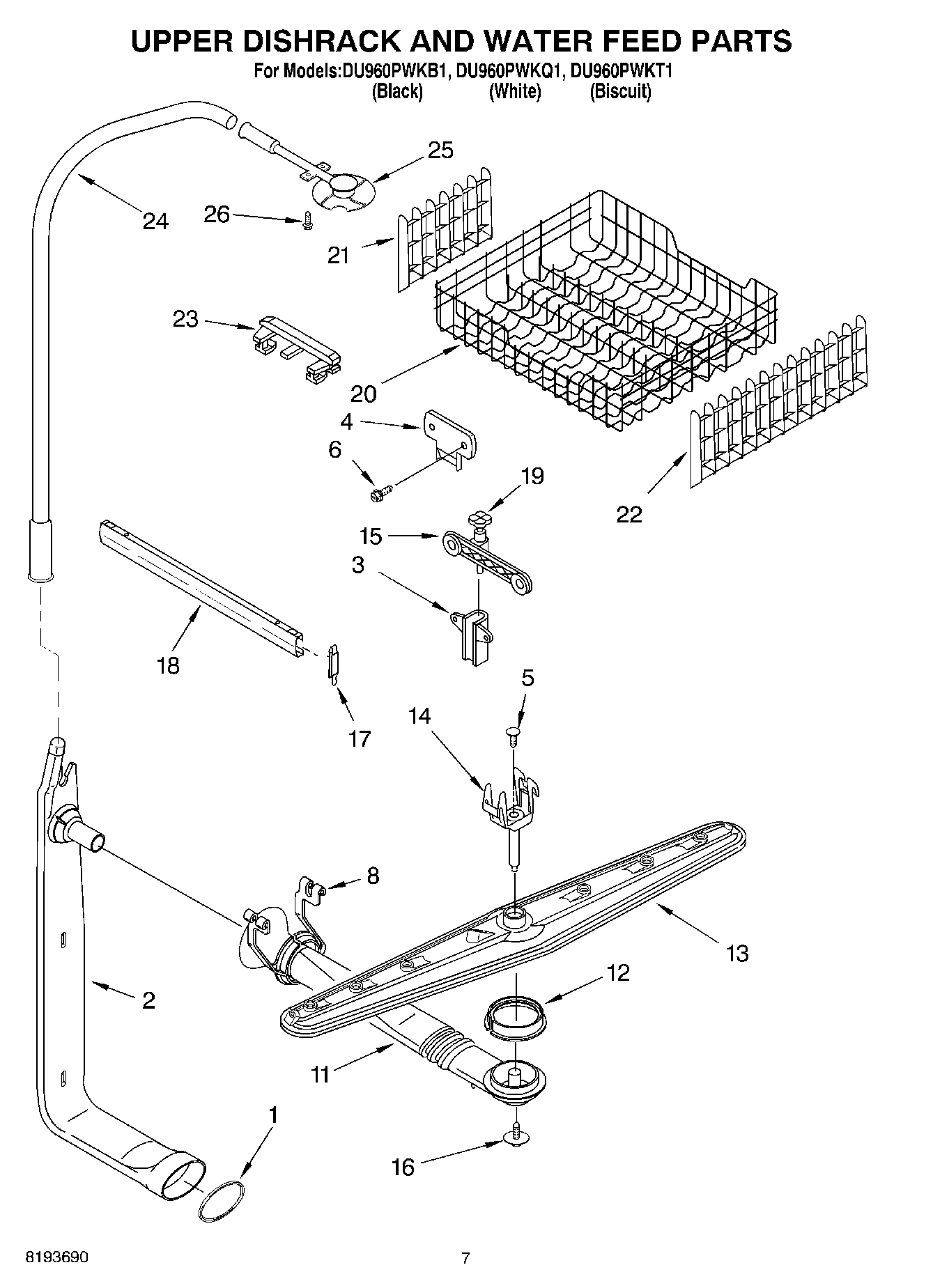

DU960PWKB1 05 – UPPER DISHRACK AND WATER FEED

Products

PositionProduct
1Seal, Tube
2661651 Whirlpool Dishwasher Tube
3Housing Adjuster
4Plate Mtg. (Adjuster)
5WP3400919 Whirlpool Dishwasher Screw Cover
6WP9741232 Whirlpool Dishwasher Screw
8WP3385160 Whirlpool Dishwasher Holder
11WPW10258149 Whirlpool Dishwasher Manifold
12WP3376846 Whirlpool Seal
13WP8519604 Whirlpool Dishwasher Spray Arm
14WP3385159 Whirlpool Dishwasher Mount
15Arm Assembly (Includes Item 19) (Right Side)
15Arm Assembly (Includes Item 19) (Left Side)
16WPW10349488 Whirlpool Screw
17WP3379941 Whirlpool Dishwasher Stop
18WP3385089 Whirlpool Track
19Worm
20W11169039 Whirlpool Dishwasher Dish Rack
21WP8268828 Whirlpool Dishwasher Shelf
22Cupshelf, Large
238268826 Whirlpool Dishwasher Cup Holder
24Tube (3rd Level)
25WP3379369 Whirlpool Dishwasher Wash Assembly
26WP489443 Whirlpool Refrigerator Screw
