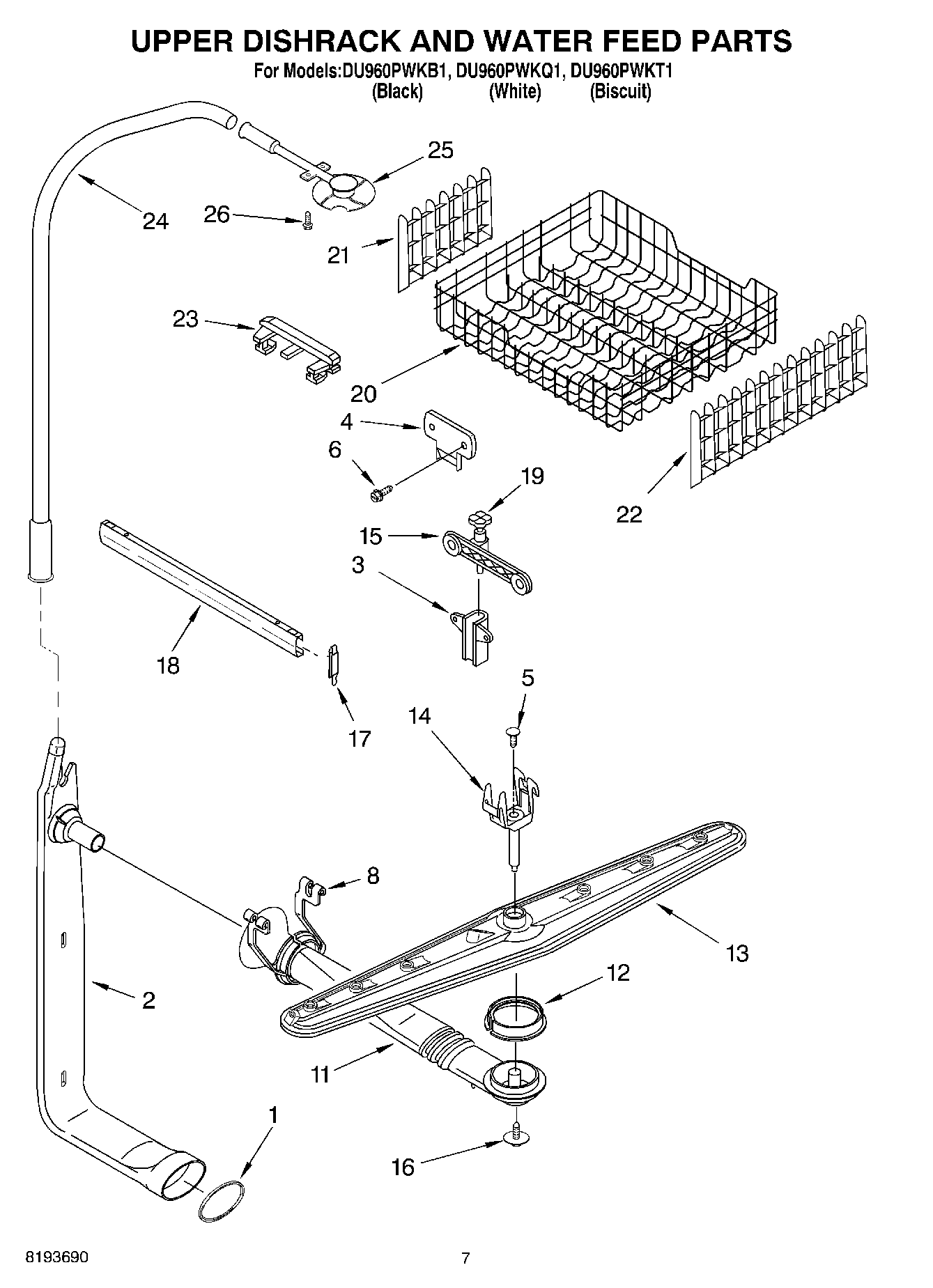

DU960PWKT1 05 – UPPER DISHRACK AND WATER FEED

Products

Position	Product
1	Seal, Tube
2	661651 Whirlpool Dishwasher Tube
3	Housing Adjuster
4	Plate Mtg. (Adjuster)
5	WP3400919 Whirlpool Dishwasher Screw Cover
6	WP9741232 Whirlpool Dishwasher Screw
8	WP3385160 Whirlpool Dishwasher Holder
11	WPW10258149 Whirlpool Dishwasher Manifold
12	WP3376846 Whirlpool Seal
13	WP8519604 Whirlpool Dishwasher Spray Arm
14	WP3385159 Whirlpool Dishwasher Mount
15	Arm Assembly (Includes Item 19) (Right Side)
15	Arm Assembly (Includes Item 19) (Left Side)
16	WPW10349488 Whirlpool Screw
17	WP3379941 Whirlpool Dishwasher Stop
18	WP3385089 Whirlpool Track
19	Worm
20	W11169039 Whirlpool Dishwasher Dish Rack
21	WP8268828 Whirlpool Dishwasher Shelf
22	Cupshelf, Large
23	8268826 Whirlpool Dishwasher Cup Holder
24	Tube (3rd Level)
25	WP3379369 Whirlpool Dishwasher Wash Assembly
26	WP489443 Whirlpool Refrigerator Screw
