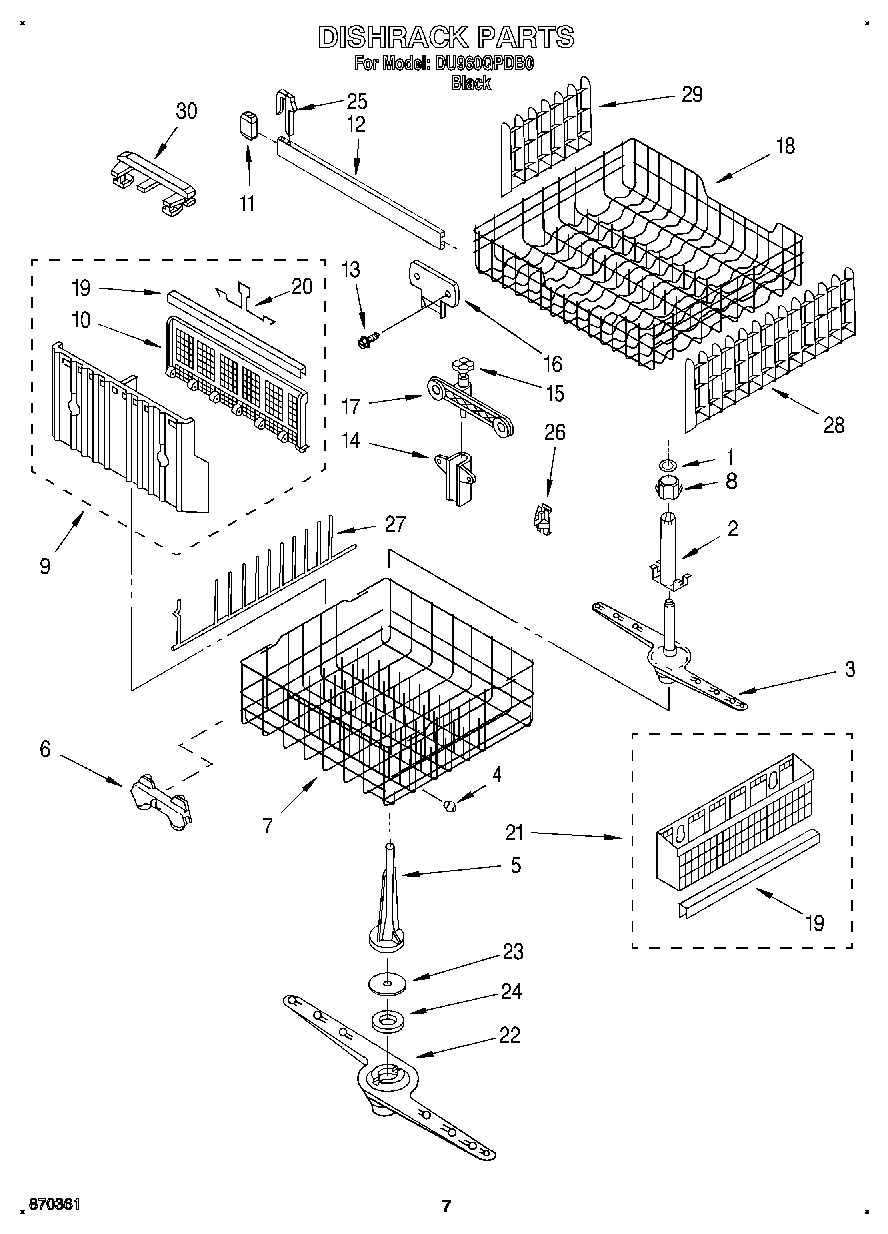

DU960QPDB0 05 – DISHRACK, LIT/OPTIONAL

DU960QPDB0 05 – DISHRACK, LIT/OPTIONAL

Written by

in

DU960QPDB0 05 – DISHRACK, LIT/OPTIONAL

Products

Position	Product
	Do-It Yourself Manual
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	WPL LIT3369685
	WPL LIT3374766
	WPL LIT3374754
	Energy Guide
	WPL LIT3373754
1	Clip
2	Support, Arm
3	Spray Arm, Upper
4	WP3385142 Whirlpool Dishwasher Bumper
5	Tower, Pressure
6	WP3376961 Whirlpool Dishwasher Wheel
7	W10311986 Whirlpool Dishwasher Lower Rack
8	Support, Lock Spray Arm
9	Silverware Basket Assembly
10	Cover, Basket
11	Endcap, Front or Rear (2)
12	Track, Rack
13	WP9741232 Whirlpool Dishwasher Screw
14	WP3369980 Whirlpool Dishwasher Housing
15	Worm (2)
16	WP3369979 Whirlpool Dishwasher Plate
17	675791 Whirlpool Dishwasher ARM Assembly
18	W11169039 Whirlpool Dishwasher Dish Rack
19	Trim, Basket
20	Handle, Basket
21	Basket, Utensil (Includes Item 19)
22	WP3376848 Whirlpool Dishwasher Spray Arm
23	Cap, Nozzle
24	WP719576 Whirlpool Dishwasher Bearing
25	Stop, Track (2)
26	WP3368629 Whirlpool Dishwasher Retainer
27	W10728160 Whirlpool Tine Assembly
28	Cupshelf, Large (2)
29	WP8268828 Whirlpool Dishwasher Shelf
30	WP676455 Whirlpool Dishwasher Touch-Up
30	WP676453 Whirlpool Dishwasher Touch-Up
30	72032 Whirlpool Touch Up Paint Black
30	285006 Whirlpool Spray
30	Enamel, Black (1 Qt. Uncut)
30	350942 Whirlpool Spray Paint
30	Almond (Uncut)
30	WP72107 Whirlpool Touchup
30	8268826 Whirlpool Dishwasher Cup Holder
30	350956 Whirlpool Spray Assembly
30	DOOR SPRING KIT: (HEAVY DUTY)
30	Side Panel Kit: (Almond)
30	Side Panel Kit (White)
30	W10840471 Whirlpool Dishwasher Touch Up
30	676458 Whirlpool Dishwasher Tine Tip
30	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
30	Avocado
30	Gold
30	Toast
30	Platinum
30	675679 Whirlpool Dishwasher White Tip Tines
30	72017 Whirlpool Appliance Touch-Up Paint White
