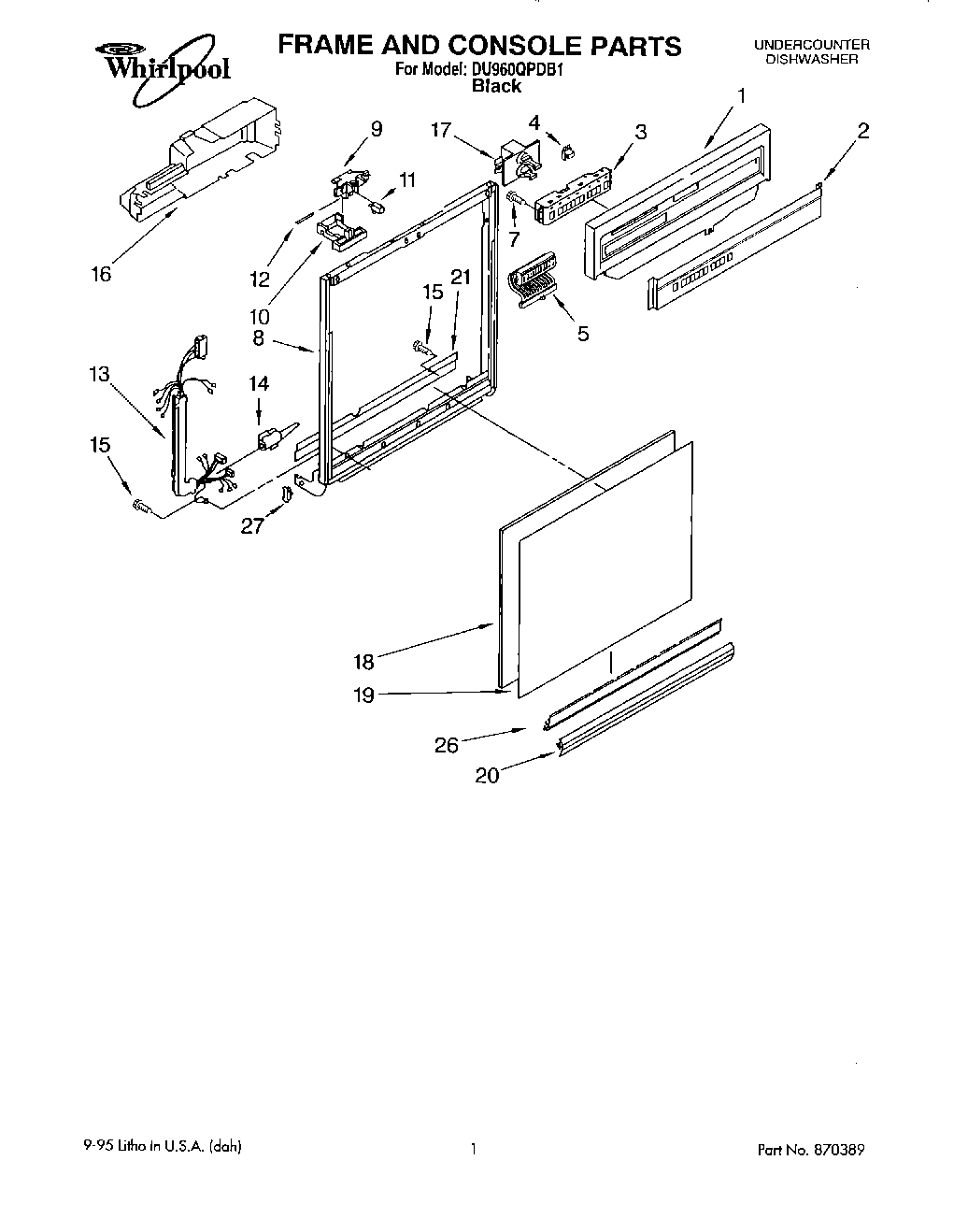

DU960QPDB1 01 – FRAME AND CONSOLE

DU960QPDB1 01 – FRAME AND CONSOLE

Written by

in

DU960QPDB1 01 – FRAME AND CONSOLE

Products

PositionProduct
1Console (Includes Item 2)
2Insert, Console
3Control, Electronic
4675813 Whirlpool Thermal Fuse Kit
5Switch, Display
7WP304231 Whirlpool Dishwasher Screw
83374711 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP488234 Whirlpool Air Conditioner Screw
16Cover Timer
17Motor, Dual
18Door, Sound Absorber
19WP3369769 Whirlpool Dishwasher Panel
20Retainer, Panel
21Barrier, Lower Vent
26WP3374716 Whirlpool Dishwasher Channel
27WP3373234 Whirlpool Dishwasher Bearing
