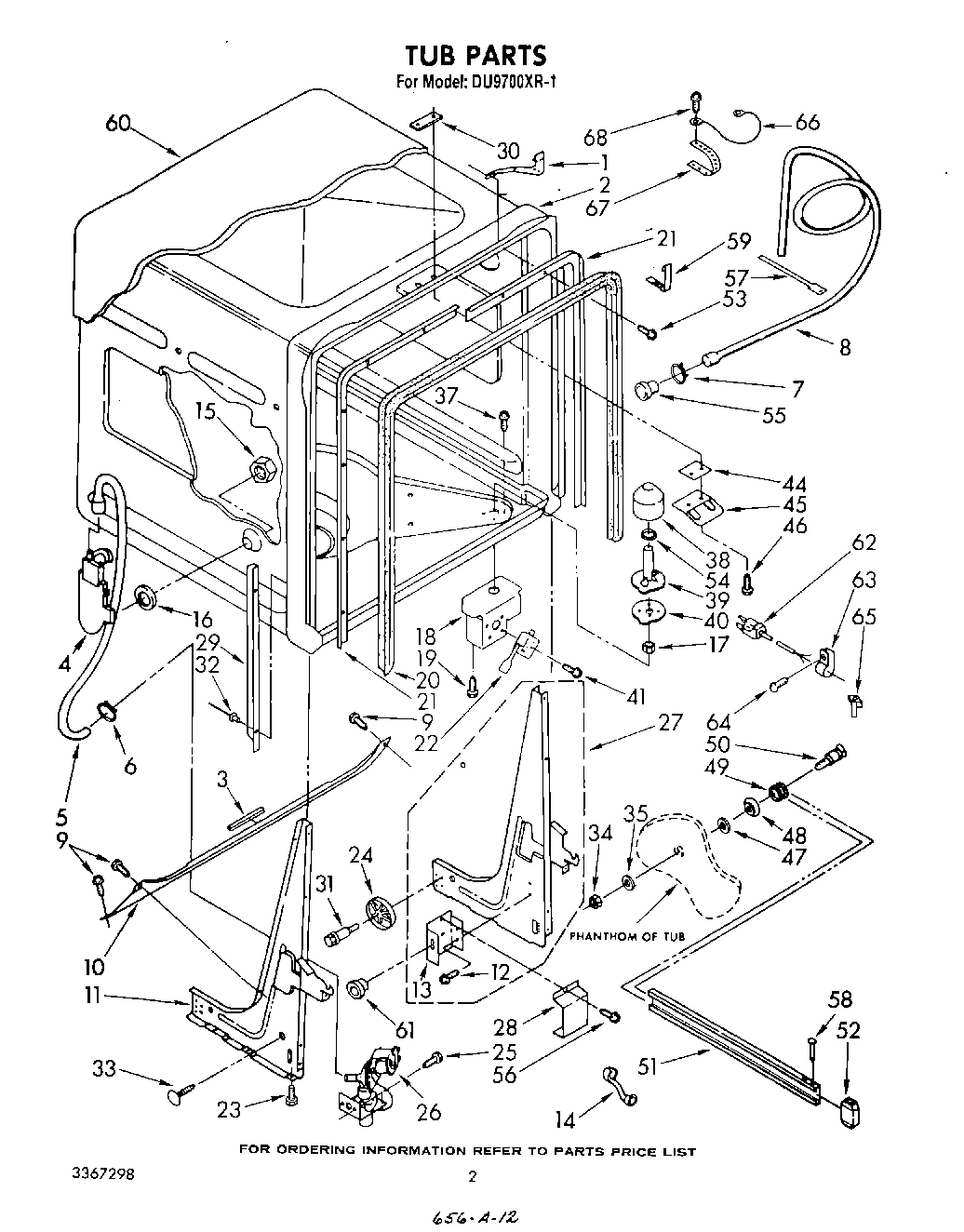

DU9700XR1 02 – TUB, LITERATURE AND OPTIONAL

DU9700XR1 02 – TUB, LITERATURE AND OPTIONAL

Written by

in

DU9700XR1 02 – TUB, LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT3367629
WPL LIT304300
WPL LIT304270
WPL LIT304416
WPL LIT3367298
1Bracket, Mounting (2)
2Tub Assembly
3Edge Protector
4Inlet, Water
5Hose, Inlet
6WP596669 Whirlpool Hose Clamp
7WP356138 Whirlpool Hose Clamp
8675544 Whirlpool Drain Hose
9WP302868 Whirlpool Screw
10Brace
11Leg & Hinge Assembly, L.H.
12Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13Box, Terminal
14Relief, Strain
15Nut, 7/18-16
16Gasket
17Nut
18Bracket, Overflow Switch
19Screw, 8 x 1/2 (3)
20Gasket (Alternate)
20Gasket (Alternate)
21Retainer (R.H.)
21Retainer (L.H.)
22Retainer-Main Top (2 Required)
22Switch, Pressure (Alternate)
22Switch, Pressure (Alternate)
238193716 Whirlpool Leveling Leg
24WP302819 Whirlpool Dishwasher Wheel
26Valve, Water Inlet (Alternate)
26Valve, Water Inlet (Alternate)
27Leg & Hinge Assembly, R.H.
28300068 Whirlpool Dishwasher Cover Assembly
29Retainer, Sound Shield
30Nut, Twin Spring
31Screw, Shoulder
32Rivet
33WP304666 Whirlpool Dishwasher Retainer
34Nut, Lock
35Washer (8)
37WP488729 Whirlpool Refrigerator Door Screw
38Float
39Standpipe, Overflow
40Gasket, Overflow
41Screw, 4-40 x 3/4
44Shim
45Strike
46WP308685 Whirlpool Microwave Screw
47Washer (8)
48Washer, Cup
49Roller, Rack Track
50Screw, Shoulder (8)
51Track (2)
52End Cap, Track (4)
53Screw, 8-18 x 5/8 (10)
54Gasket, Standpipe (2)
55WPL 301656
56WP90767 Whirlpool Screw
57WPW10144763 Whirlpool Tie Wire
58WPL 303298
59Clip, Gasket (2)
60W11086533 Whirlpool Dishwasher Shield
61WPL 302770
62WPL 302764
63Clamp, Strain Relief
64WP489069 Whirlpool Compactor Screw
65WPL 770754
66WPL 303485
67Strap, Ground
68W10840471 Whirlpool Dishwasher Touch Up
68Kit, Epoxy Patch (White)
68Almond (Uncut)
68Leveler (Thinner)
68Enamal, Toast (1 Qt. Uncut)
68WP72107 Whirlpool Touchup
68799344 Whirlpool Refrigerator Paint
6872017 Whirlpool Appliance Touch-Up Paint White
68350956 Whirlpool Spray Assembly
68285006 Whirlpool Spray
68Paint, Spray (13 Oz.) (Platinum)
68350942 Whirlpool Spray Paint
68Toast
68Golden Harvest (Uncut)
68Golden Harvest
6872113 Whirlpool Touch-Up Paint
6872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
68Screw, Ground (10-24 x 1)
68350930 Whirlpool White Spray Paint
68Platinum (Uncut)
68WPL 72112
68Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
