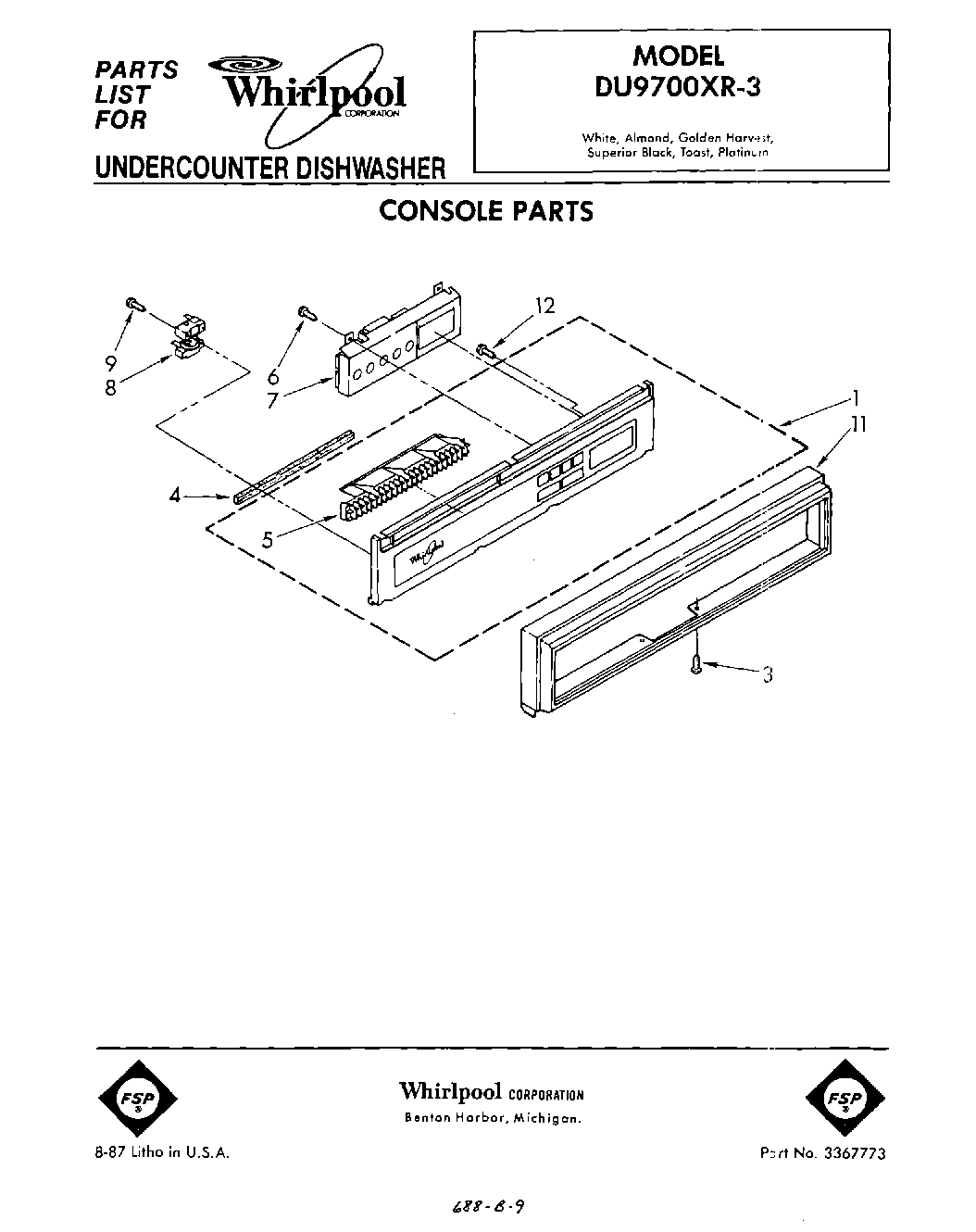

DU9700XR3 01 – CONSOLE

Products

Position	Product
1	Console
3	W11693756 Whirlpool Screw Assembly
4	Baffle
5	Grill, Vent
6	WP304231 Whirlpool Dishwasher Screw
7	Control, Electronic
8	Relay, Start
9	WPL 301588
11	Bezel, Console
12	Screw, 6-19 x3/8 Torx Pan Hd (4)
