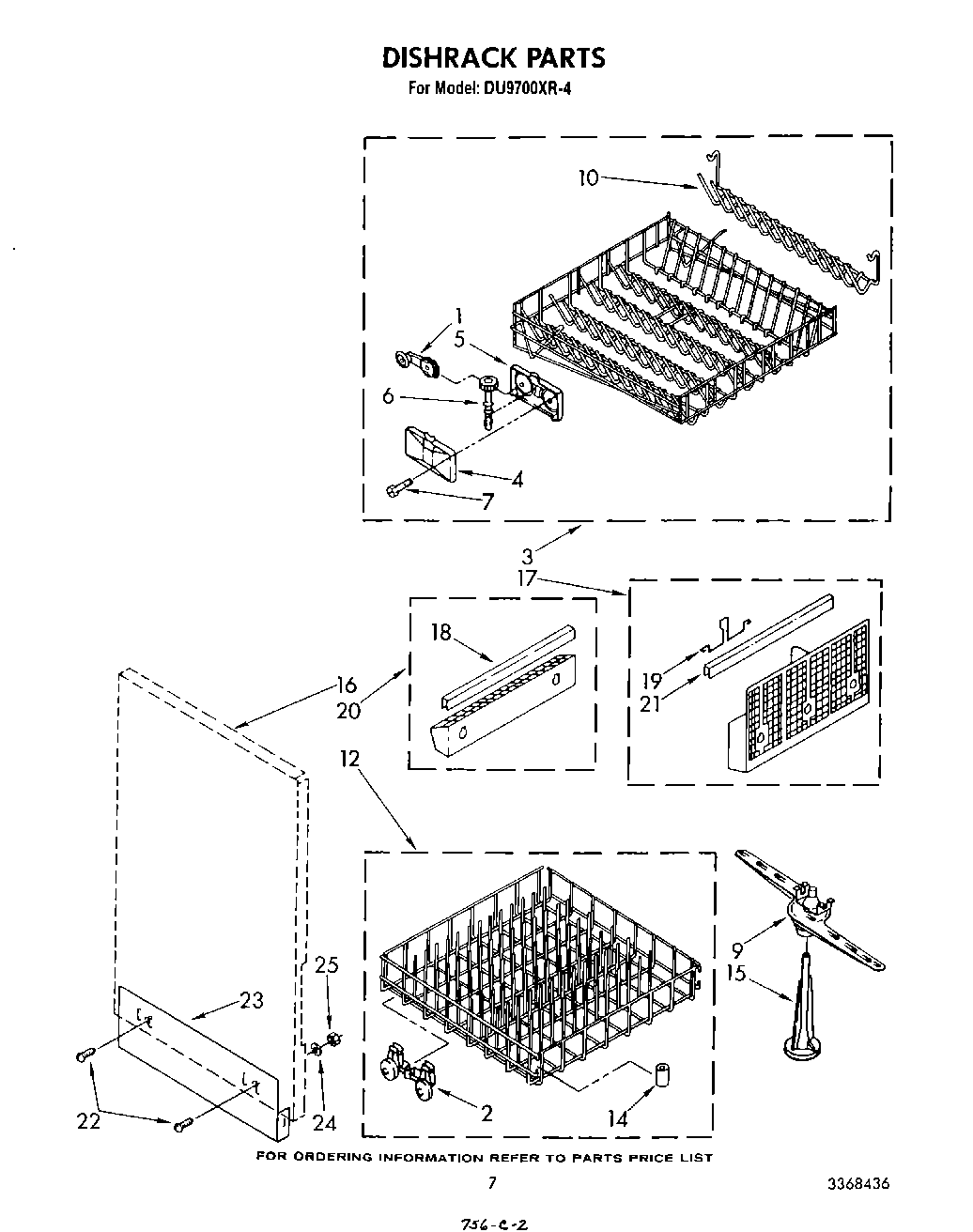

DU9700XR4 05 – DISHRACK

DU9700XR4 05 – DISHRACK

Written by

in

DU9700XR4 05 – DISHRACK

Products

PositionProduct
1Wheel & Gear Assembly (4)
24317933 Whirlpool Lower Rack Wheels
3W11169039 Whirlpool Dishwasher Dish Rack
4Cover, Housing (2)
5Housing, Gear (2)
6Worm, Dishrack (2)
7WP9741232 Whirlpool Dishwasher Screw
9WP304204 Whirlpool Dishwasher Spray Arm
10Shelf, Cup
12W10311986 Whirlpool Dishwasher Lower Rack
14Bumper
15Tower
16Panel, R.S. Panel, L.S.
17Silverware Basket
19Handle, Basket
20Utinsil, Basket
21Trim, Basket
22Screw, Lower Side Panel Mounting (2)
23Panel, Lower Side
24W11089212 Whirlpool Washer
25W10080180 Whirlpool Nut
