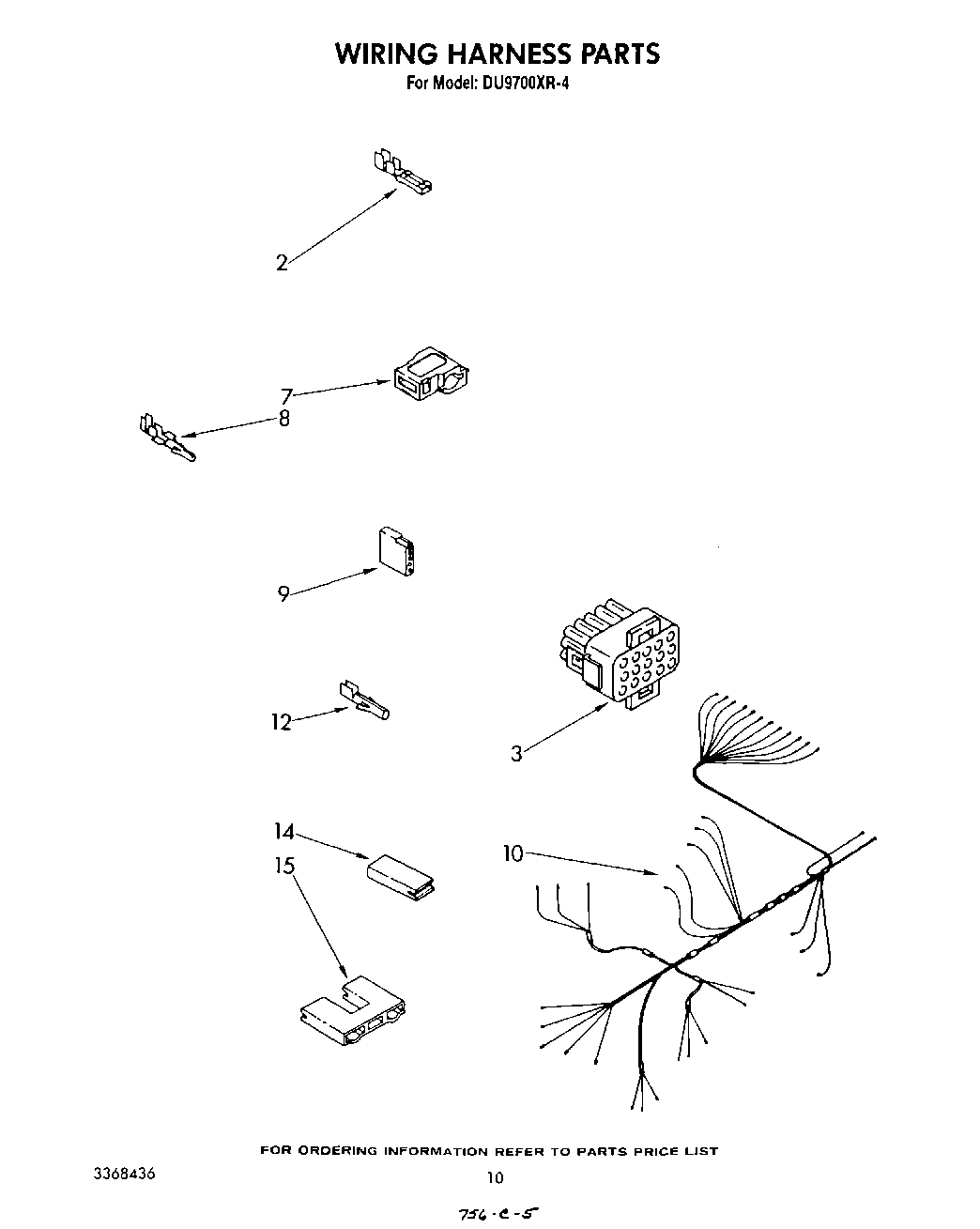

DU9700XR4 07 – WIRING HARNESS – Aparts

DU9700XR4 07 – WIRING HARNESS

Products

Position	Product
2	Terminal, Female
3	Disconnect Block, Timer
7	Insulator, Terminal
8	WP596797 Whirlpool Terminal
9	Receptacle (5-Circuit)
10	Harness, Wiring
12	Terminal
14	Connector Block
14	Insulator, Terminal
15	Connector Block (Alternate)
15	Terminal Insulator
