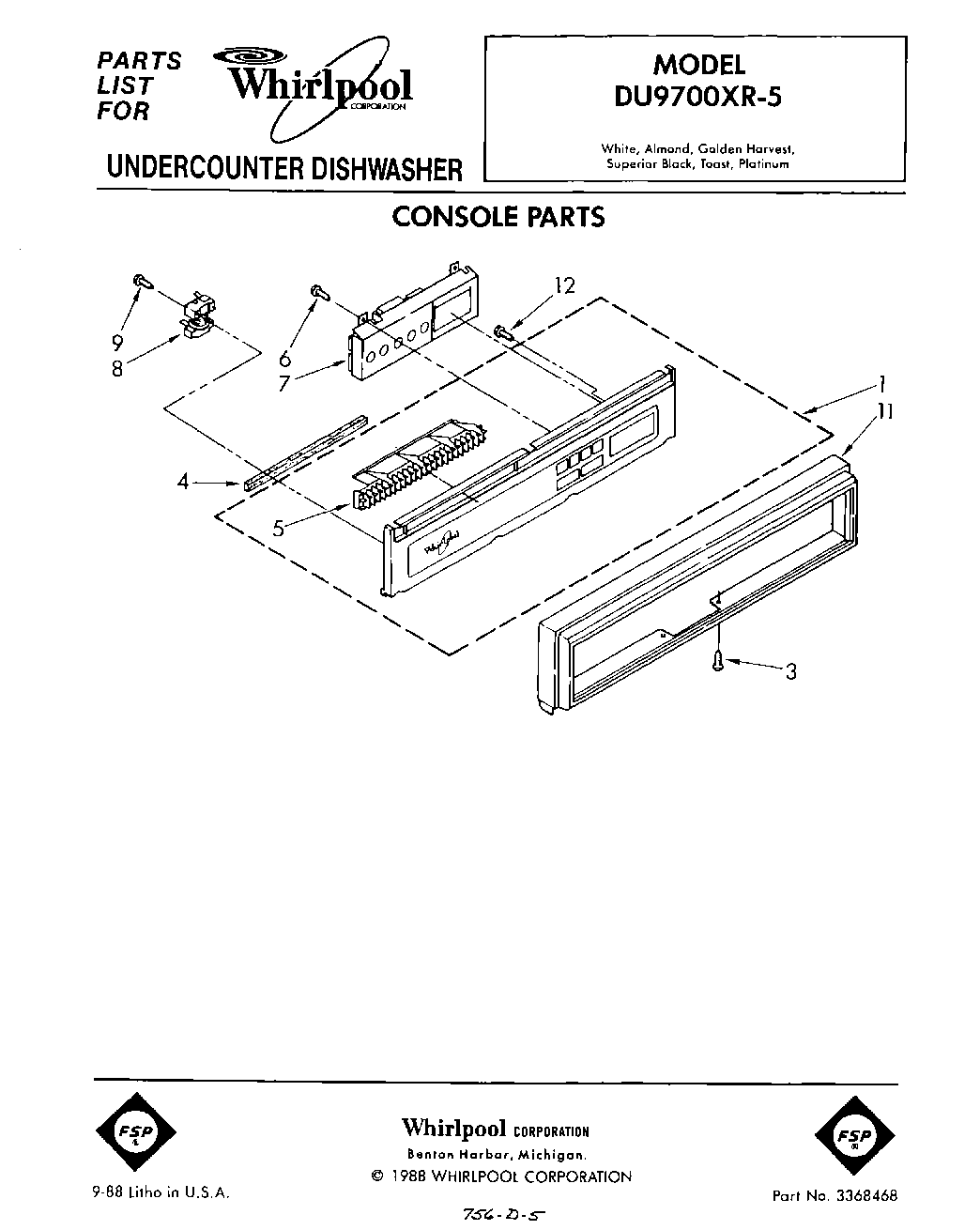

| 1 | Console |
| 3 | W11693756 Whirlpool Screw Assembly |
| 4 | Foam, Seal |
| 5 | Grill, Vent |
| 6 | WP304231 Whirlpool Dishwasher Screw |
| 7 | Control, Electronic (Alt.) |
| 7 | Control, Electronic |
| 7 | Control, Electronic |
| 8 | Relay, Start |
| 9 | WPL 301588 |
| 11 | Bezel, Console |
| 12 | Screw, 6-19 x3/8 Torx Pan Hd (4) |
