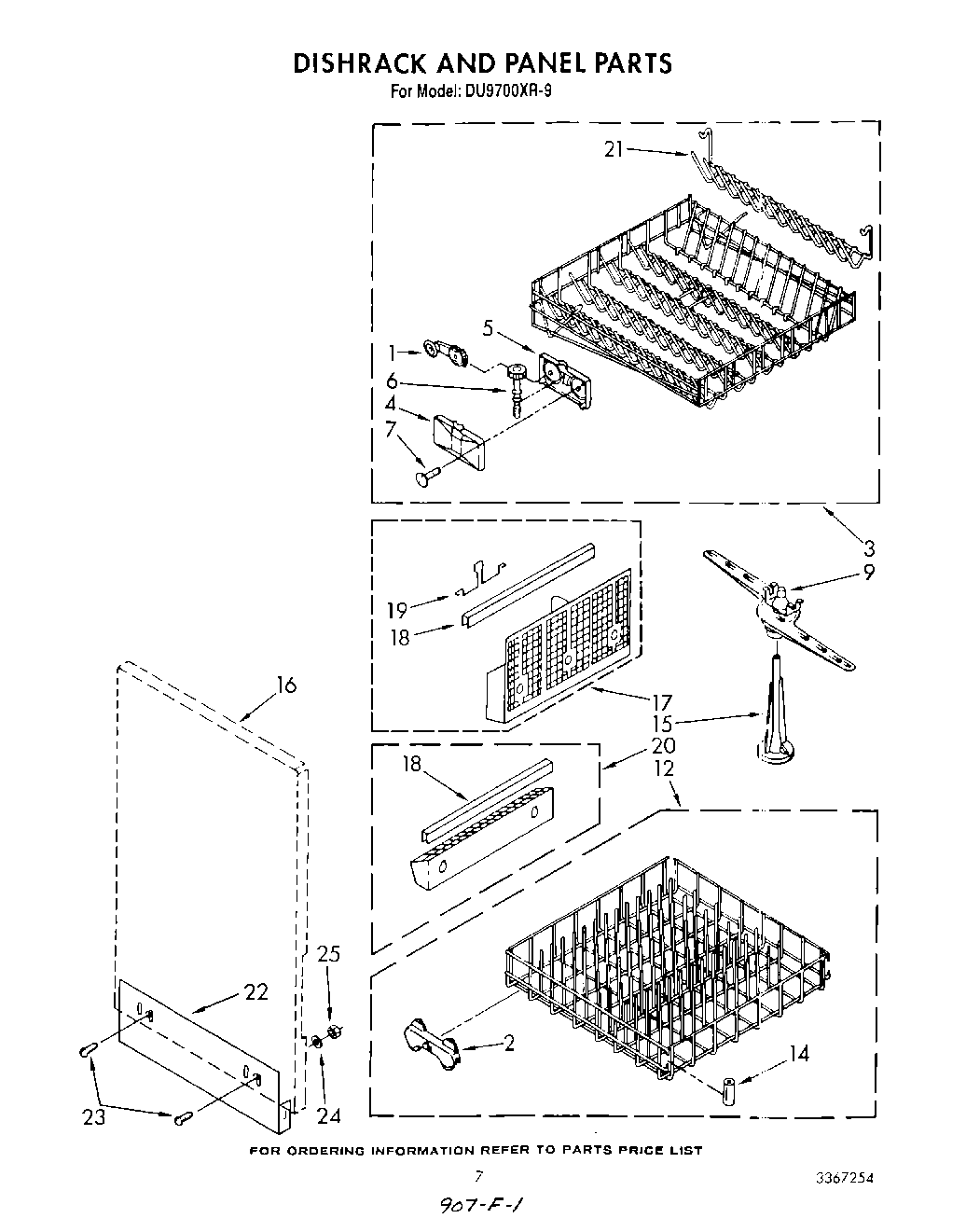

DU9700XR9 05 – DISH RACK AND PANEL

Products

PositionProduct
1Wheel & Gear Assembly (4)
2WP3376961 Whirlpool Dishwasher Wheel
3W11169039 Whirlpool Dishwasher Dish Rack
4Cover, Housing (2)
5Housing, Gear (2)
6Worm, Dishrack (2)
7WP9741232 Whirlpool Dishwasher Screw
9WP304204 Whirlpool Dishwasher Spray Arm
12W10311986 Whirlpool Dishwasher Lower Rack
14Bumper
15Tower
16Panel, Reversible Side
17Silverware Basket
18Trim, Basket
19Handle, Basket
20Utinsil, Basket
21Shelf, Cup
22Panel, Lower Side
23Screw, Lower Side Panel Mounting (2)
24W11089212 Whirlpool Washer
25W10080180 Whirlpool Nut
