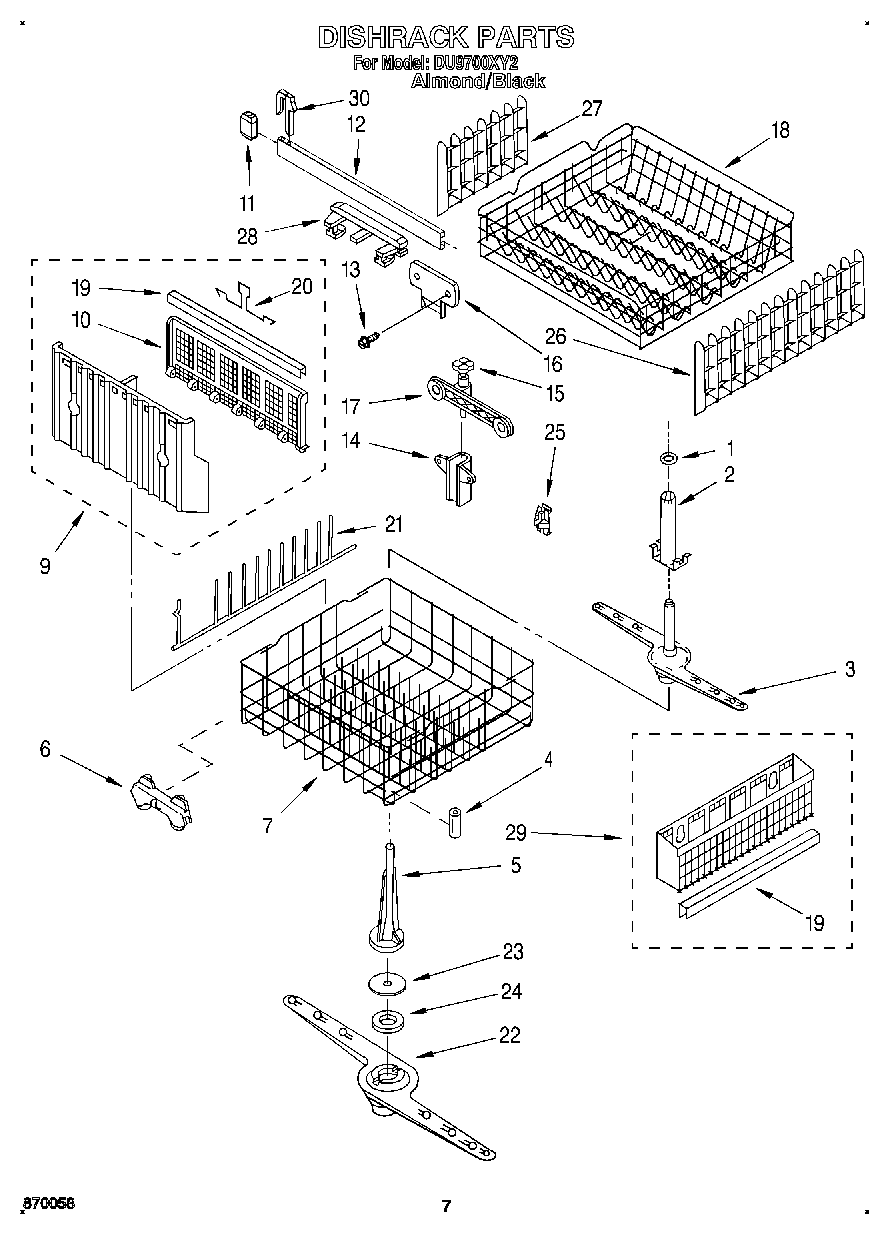

DU9700XY2 05 – DISHRACK, LIT/OPTIONAL

DU9700XY2 05 – DISHRACK, LIT/OPTIONAL

Written by

in

DU9700XY2 05 – DISHRACK, LIT/OPTIONAL

Products

Position	Product
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	WPL LIT3370539
	WPL LIT3369263
	Energy Guide
	Do-It Yourself Manual
	WPL LIT3374368
	WPL LIT3370471
1	Clip
2	Support, Arm
3	Spray Arm, Upper
4	WP3385142 Whirlpool Dishwasher Bumper
5	Tower, Pressure
6	WP3376961 Whirlpool Dishwasher Wheel
7	W10311986 Whirlpool Dishwasher Lower Rack
9	Silverware Basket Assembly
10	Cover, Basket
11	Endcap, Front or Rear (2)
12	Track, Rack
13	WP9741232 Whirlpool Dishwasher Screw
14	WP3369980 Whirlpool Dishwasher Housing
15	Worm (2)
16	WP3369979 Whirlpool Dishwasher Plate
17	675791 Whirlpool Dishwasher ARM Assembly
18	W11169039 Whirlpool Dishwasher Dish Rack
19	Trim, Basket
20	Handle, Basket
21	W10728160 Whirlpool Tine Assembly
22	WP3376848 Whirlpool Dishwasher Spray Arm
23	Cap, Nozzle
24	WP719576 Whirlpool Dishwasher Bearing
25	WP3368629 Whirlpool Dishwasher Retainer
26	Cupshelf, Large (2)
27	WP8268828 Whirlpool Dishwasher Shelf
28	8268826 Whirlpool Dishwasher Cup Holder
29	Basket, Utensil (Includes Item 19)
30	285006 Whirlpool Spray
30	WP676453 Whirlpool Dishwasher Touch-Up
30	350942 Whirlpool Spray Paint
30	Enamel, Black (1 Qt. Uncut)
30	WPL 72112
30	Almond (Uncut)
30	Leveler (Thinner)
30	WP72107 Whirlpool Touchup
30	72017 Whirlpool Appliance Touch-Up Paint White
30	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
30	WP676455 Whirlpool Dishwasher Touch-Up
30	Toast
30	Side Panel Kit: (Almond)
30	Side Panel Kit (White)
30	W10840471 Whirlpool Dishwasher Touch Up
30	Stop, Track (2)
30	676458 Whirlpool Dishwasher Tine Tip
30	675679 Whirlpool Dishwasher White Tip Tines
30	350956 Whirlpool Spray Assembly
30	DOOR SPRING KIT: (HEAVY DUTY)
30	Avocado
30	Gold
30	Platinum
