DU9750XY0 06 – DISHRACK, LIT/OPTIONAL

DU9750XY0 06 – DISHRACK, LIT/OPTIONAL

Written by

in

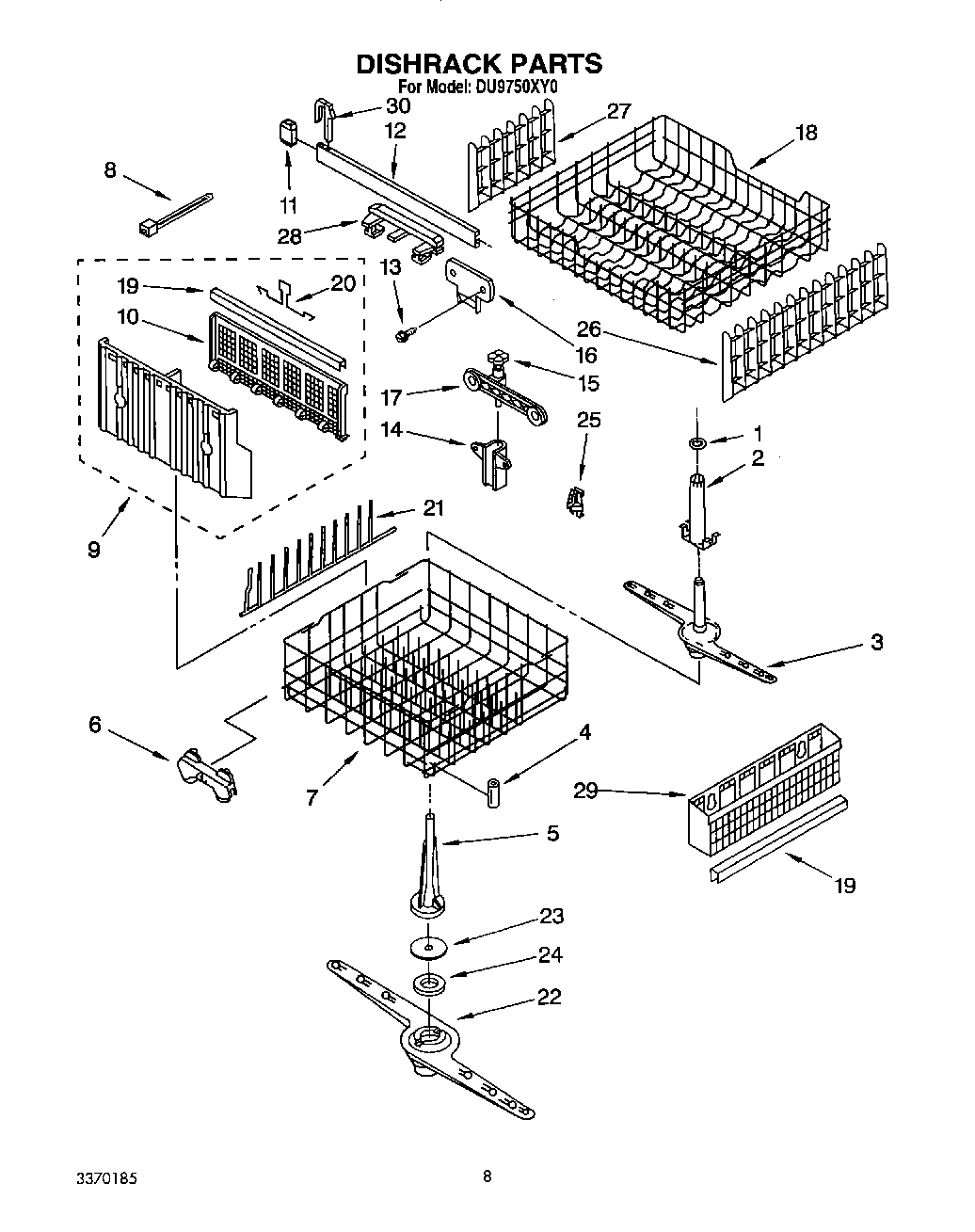

DU9750XY0 06 – DISHRACK, LIT/OPTIONAL

Products

Position	Product
	Instructions, Installation
	WPL LIT3370539
	Energy Guide
	WPL LIT3370185
	WPL LIT3369263
	Instructions, Installation (Supplement) (Locating Your Water Supply)
1	Clip
2	Support, Arm
3	Spray Arm, Upper
4	WP3385142 Whirlpool Dishwasher Bumper
5	Tower, Pressure
6	WP3376961 Whirlpool Dishwasher Wheel
7	W10311986 Whirlpool Dishwasher Lower Rack
8	Clip, Strap
9	Silverware Basket Assembly
10	Cover, Basket
11	Endcap, Front or Rear (2)
12	Track, Rack
13	WP9741232 Whirlpool Dishwasher Screw
14	WP3369980 Whirlpool Dishwasher Housing
15	Worm (2)
16	WP3369979 Whirlpool Dishwasher Plate
17	675791 Whirlpool Dishwasher ARM Assembly
18	W11169039 Whirlpool Dishwasher Dish Rack
19	Trim, Basket
20	Handle, Basket
21	W10728160 Whirlpool Tine Assembly
22	WP3376848 Whirlpool Dishwasher Spray Arm
23	Cap, Nozzle
24	WP719576 Whirlpool Dishwasher Bearing
25	WP3368629 Whirlpool Dishwasher Retainer
26	Cupshelf, Large (2)
27	WP8268828 Whirlpool Dishwasher Shelf
28	8268826 Whirlpool Dishwasher Cup Holder
29	Basket, Utensil (Includes Item 19)
30	350942 Whirlpool Spray Paint
30	WP72107 Whirlpool Touchup
30	WP676455 Whirlpool Dishwasher Touch-Up
30	Leveler (Thinner)
30	WP676453 Whirlpool Dishwasher Touch-Up
30	285006 Whirlpool Spray
30	Almond (Uncut)
30	WPL 72112
30	Enamel, Black (1 Qt. Uncut)
30	350956 Whirlpool Spray Assembly
30	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
30	Stop, Track (2)
30	Side Panel Kit (White)
30	W10840471 Whirlpool Dishwasher Touch Up
30	676458 Whirlpool Dishwasher Tine Tip
30	675679 Whirlpool Dishwasher White Tip Tines
30	Side Panel Kit: (Almond)
30	Avocado
30	Gold
30	Toast
30	Platinum
30	72017 Whirlpool Appliance Touch-Up Paint White
