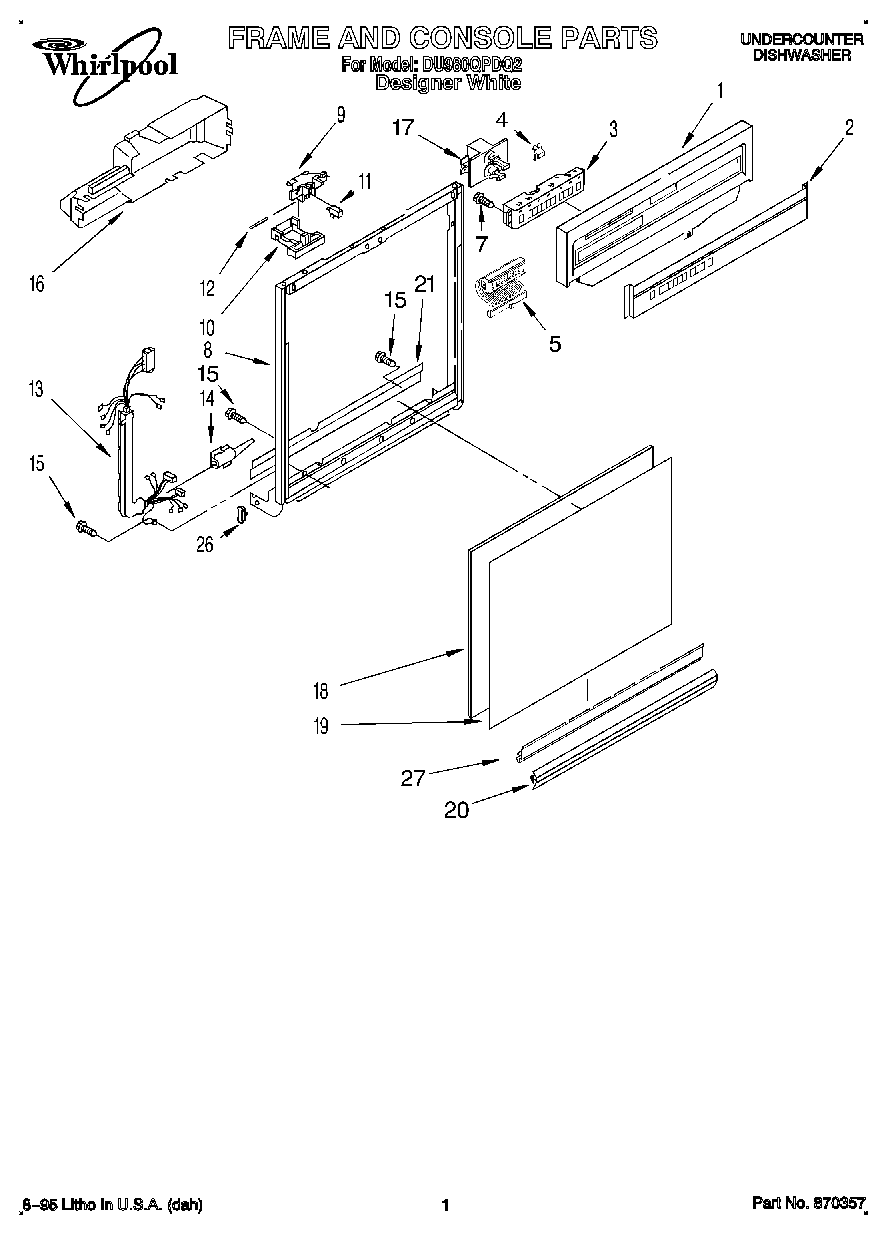

DU980QPDQ2 01 – FRAME AND CONSOLEadmin2025-04-26T11:44:05+00:00DU980QPDQ2 01 – FRAME AND CONSOLE
Products
| Position | Product |
|---|
| 1 | Console (Includes Item 2) |
| 2 | Insert, Console |
| 3 | Control, Electronic |
| 4 | 675813 Whirlpool Thermal Fuse Kit |
| 5 | Switch, Display |
| 7 | WP304231 Whirlpool Dishwasher Screw |
| 8 | Door Frame (Includes Item 24) (White) |
| 9 | WP3380854 Whirlpool Door Latch Bolt |
| 10 | Lever, Latch White |
| 11 | Shield, Switch |
| 12 | Pin, Switch (2) |
| 13 | Harness and Protector |
| 14 | 3376405 Whirlpool Dishwasher Elbow |
| 15 | WP488234 Whirlpool Air Conditioner Screw |
| 16 | Cover Timer |
| 17 | Motor, Dual |
| 18 | Door, Sound Absorber |
| 19 | WP3369769 Whirlpool Dishwasher Panel |
| 20 | Retainer, Panel (White) |
| 21 | Barrier, Lower Vent |
| 26 | WP3373234 Whirlpool Dishwasher Bearing |
| 27 | WP3374716 Whirlpool Dishwasher Channel |
