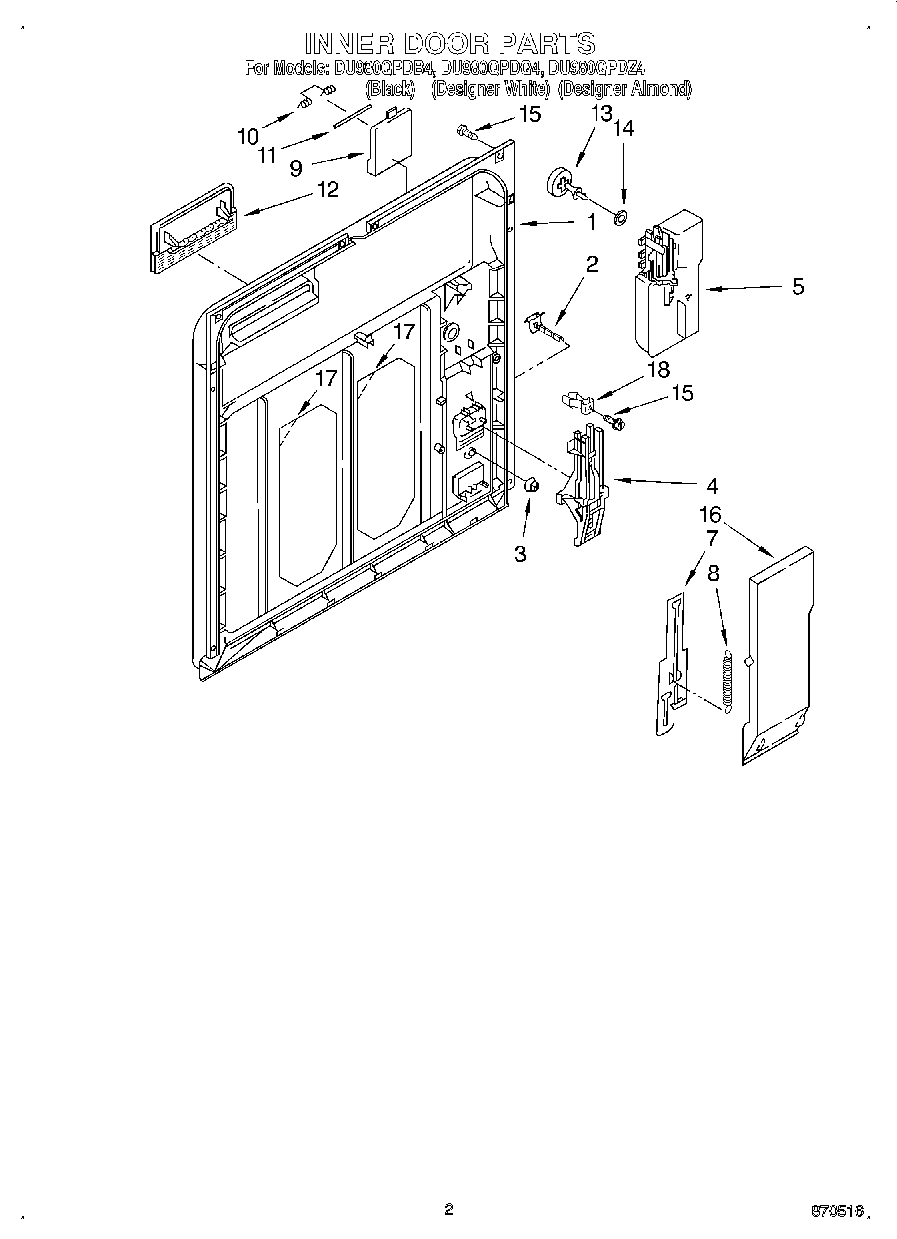

DU980QPDZ4 02 – INNER DOOR

Products

Position	Product
1	Inner Door (Also Order Latch Door Kit 676413)
3	LATCH KIT
4	WP3369505 Whirlpool Dishwasher Actuator
5	WP8052028 Whirlpool Dishwasher Dispenser
7	DRAW BAR (LOWER DISPENSER)
8	WP3368999 Whirlpool Dishwasher Spring
9	WP3378138 Whirlpool Cover Assembly
10	WP8066018 Whirlpool Spring Assembly
11	WP3372028 Whirlpool Hinge Pin
12	WP3371710 Whirlpool Dishwasher Screen
14	WP3378134 Whirlpool Dishwasher Cap
15	WPW10348409 Whirlpool Screw
16	Cover, Drip
17	Damper, Door (2)
18	Clip, Console Door Retainer
