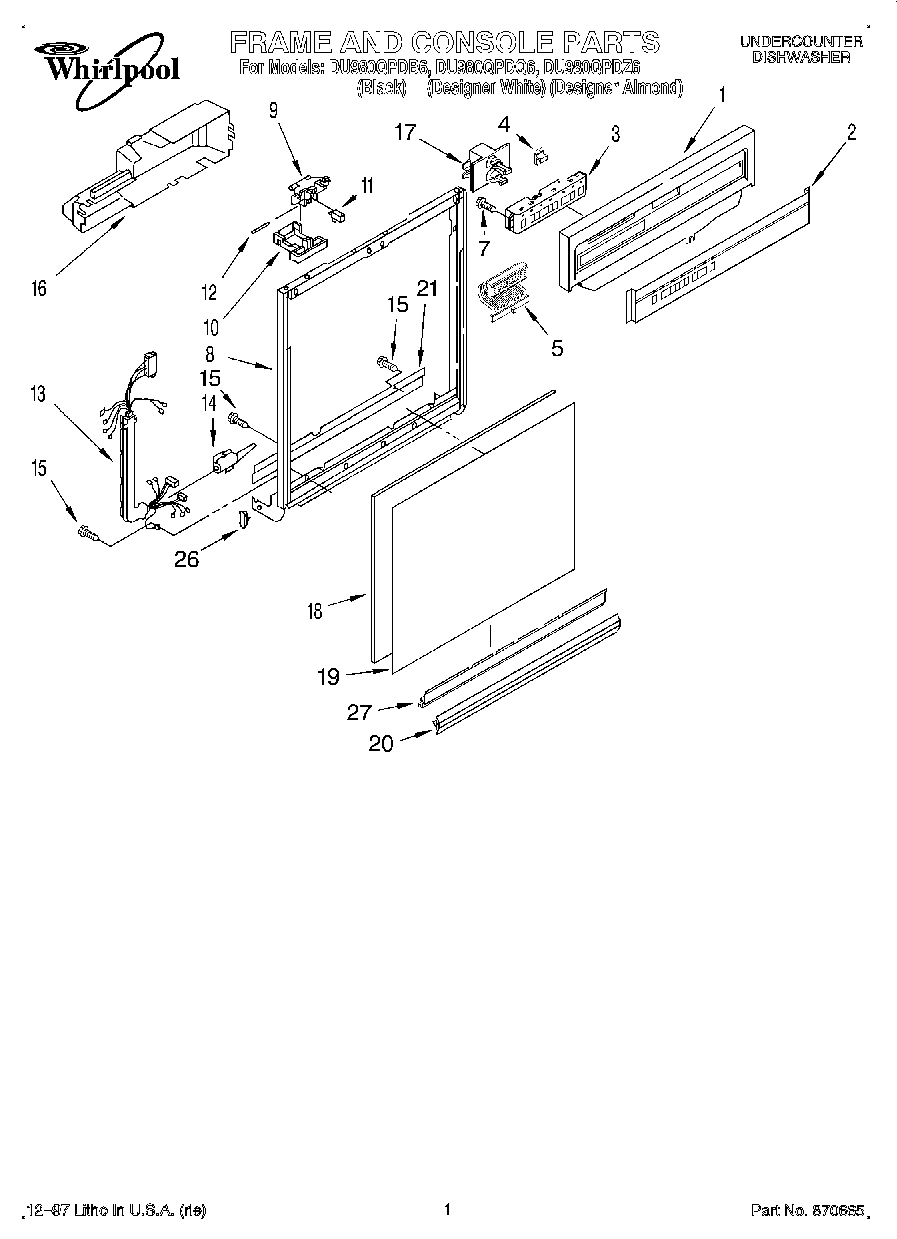

DU980QPDZ6 01 – FRAME AND CONSOLE

DU980QPDZ6 01 – FRAME AND CONSOLE

Written by

in

DU980QPDZ6 01 – FRAME AND CONSOLE

Products

PositionProduct
1Console (Includes Item 2) (Black)
1Console (Includes Item 2) (Almond)
1Console (Includes Item 2)
2Insert, Console (Almond)
2Insert, Console
2Insert, Console (Black)
3Control, Electronic
4675813 Whirlpool Thermal Fuse Kit
5Switch, Display
7WP304231 Whirlpool Dishwasher Screw
8Door Frame (Includes Item 21) (Almond)
8Door Frame (Includes Item 24) (White)
83374711 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch White
10Lever, Latch
10Lever, Latch (Almond)
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP488234 Whirlpool Air Conditioner Screw
16Cover Timer
17Motor, Dual
18Door, Sound Absorber
19WP3369769 Whirlpool Dishwasher Panel
20Retainer, Panel (Almond)
20Retainer, Panel (White)
20Retainer, Panel
21Barrier, Lower Vent
26WP3373234 Whirlpool Dishwasher Bearing
27WP3374716 Whirlpool Dishwasher Channel
