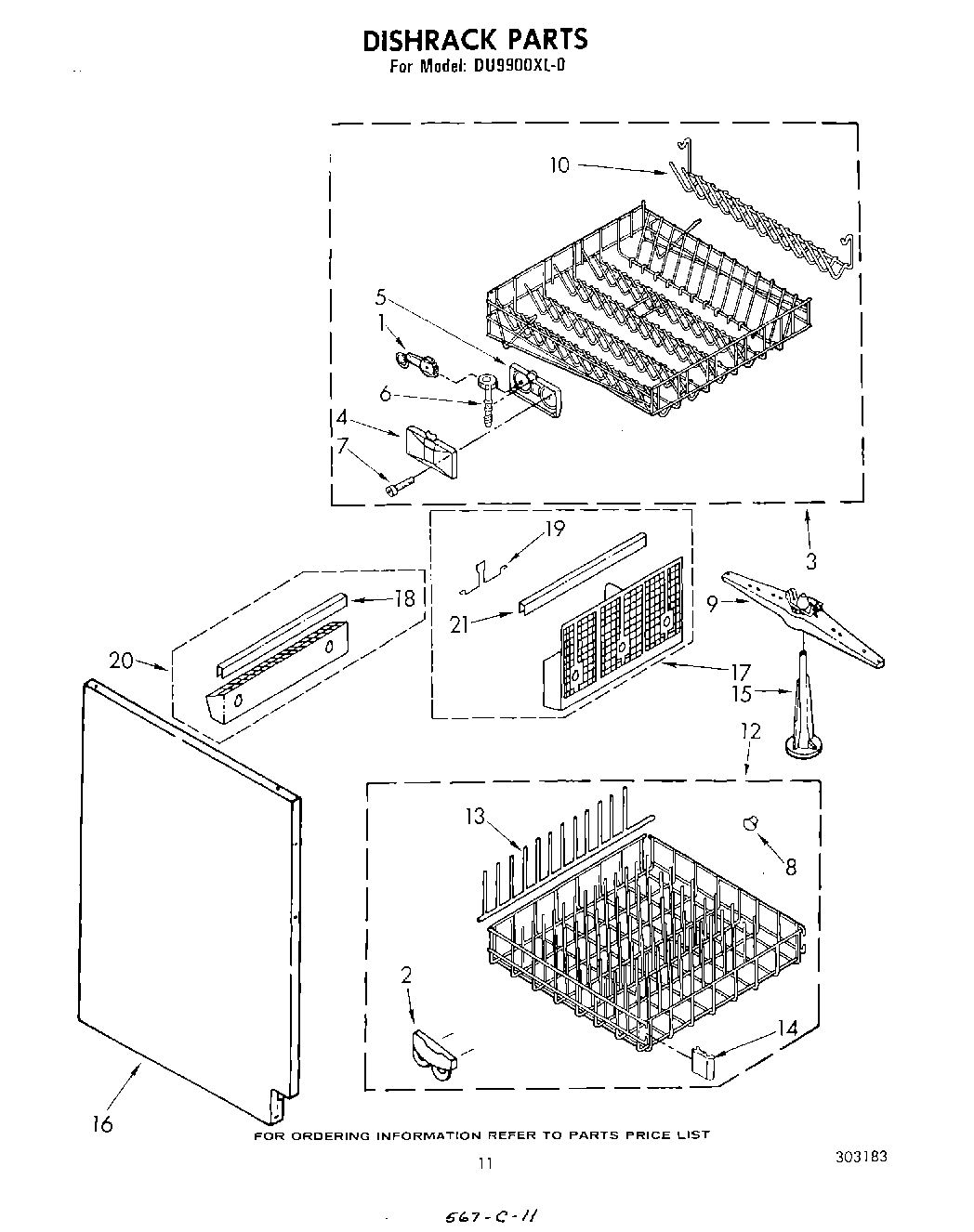

DU9900XL0 07 – DISHRACK

Products

Position	Product
1	Wheel & Gear Assembly (4)
2	4317933 Whirlpool Lower Rack Wheels
3	W11169039 Whirlpool Dishwasher Dish Rack
4	Cover, Housing (2)
5	Housing, Gear (2)
6	Worm, Dishrack (2)
7	WP9741232 Whirlpool Dishwasher Screw
8	SCREW 8A
9	WP304204 Whirlpool Dishwasher Spray Arm
10	Shelf, Cup
12	W10311986 Whirlpool Dishwasher Lower Rack
13	Adapter, Rack
14	Bumper (2)
15	Tower
16	Panel, R.S.
17	Silverware Basket Assembly
19	Handle, Basket
20	Utensil Basket Assembly
21	Trim, Basket
