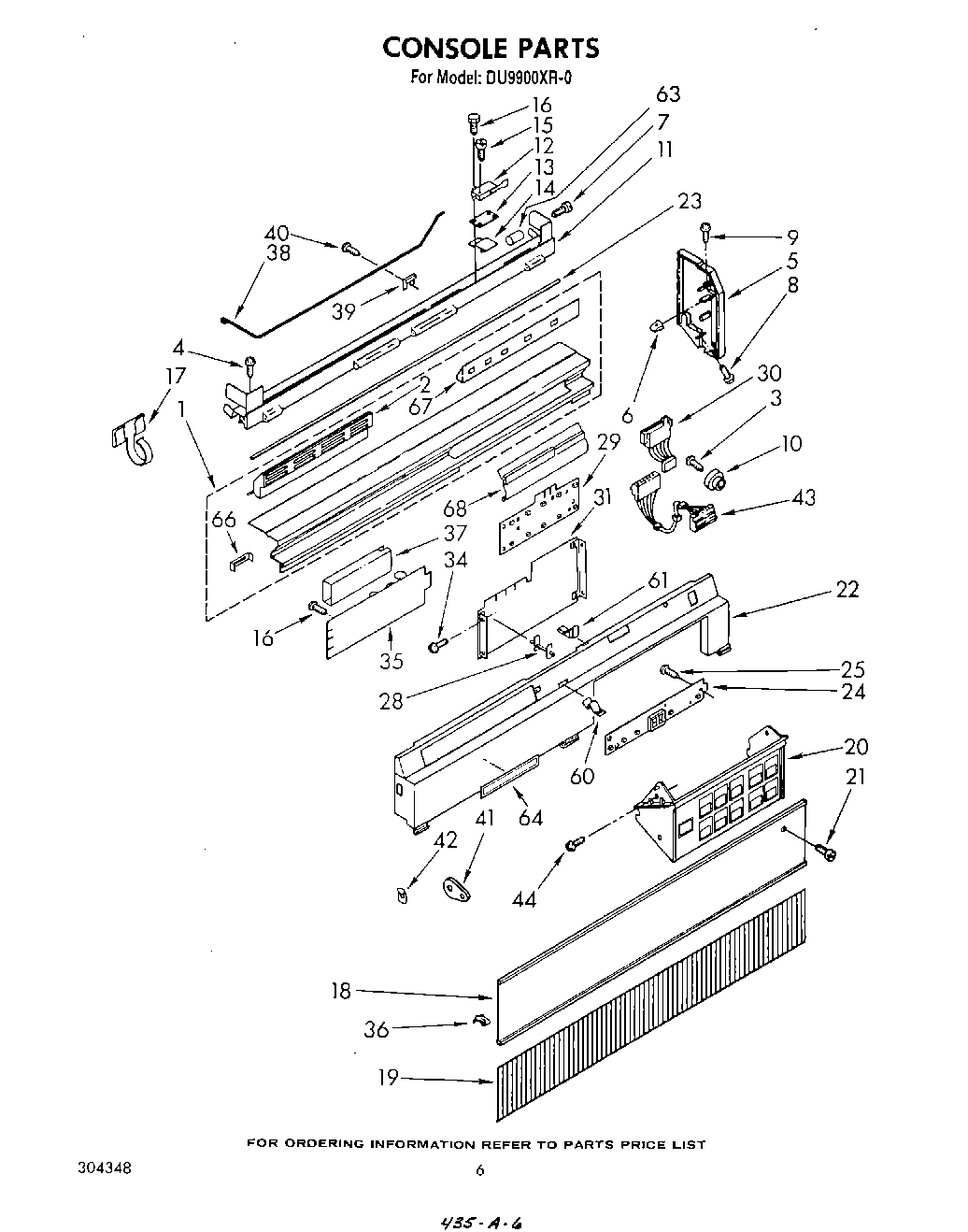

DU9900XR0 04 – CONSOLE , LITERATURE AND OPTIONAL

DU9900XR0 04 – CONSOLE , LITERATURE AND OPTIONAL

Written by

in

DU9900XR0 04 – CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Platinum (Uncut)
WPL 72112
350942 Whirlpool Spray Paint
WPL LIT304348
285006 Whirlpool Spray
WPL LIT304280
Vinyl Touch Up (Blue)
Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
Kit, Epoxy Patch (White)
WPL LIT304674
WPL LIT303310
WPL LIT304157
Enamal, Toast (1 Qt. Uncut)
Paint, Spray (13 Oz.) (Platinum)
Toast
72017 Whirlpool Appliance Touch-Up Paint White
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
350956 Whirlpool Spray Assembly
72113 Whirlpool Touch-Up Paint
Golden Harvest
Golden Harvest (Uncut)
799344 Whirlpool Refrigerator Paint
1Bezel Assembly
2Grille, Vent
5End Cap, L.H.
5End Cap, R.H.
6WPL 302267
7WP488787 Whirlpool Refrigerator Screw
8W11693756 Whirlpool Screw Assembly
9Screw, 12 x 7/8 (2)
10Bumper, Rubber
11Handrail, Hinge Assembly
12Switch, Micro
13Insulator, Terminal
14Bracket, Switch Mounting
15Screw, 4-40 x 3/4
16WP488234 Whirlpool Air Conditioner Screw
17Clip, Cable
18Door, Tiltout
19Insert, Corduroy
20Touch Module
21Screw, 8 x 5/8 (Hil) (4)
22Control Panel Assembly
23Rod, Hinge
24Display L.E.D.
25Screw, 8-18 x 3/8 (2)
28Standoff (4)
29Indicator, L.E.D.
30Harness, Ind/Main
31Microcomputer Assembly
35Control, Power Supply
36Clip, Panel Retainer (2)
37Barrier, Power Supply
38Spring, Door
39Retainer, Spring (2)
40WP489128 Whirlpool Refrigerator Screw
41Arm, Linkage
42Pushnut
43Harness, Display/Main
44Screw, 8-32 x 3/8 (4)
60Clip, Mounting
61Hanger, Cable
63675679 Whirlpool Dishwasher White Tip Tines
64Label, Solid State
66Silverware
67Lens, Indicator
68Barrier, Water
