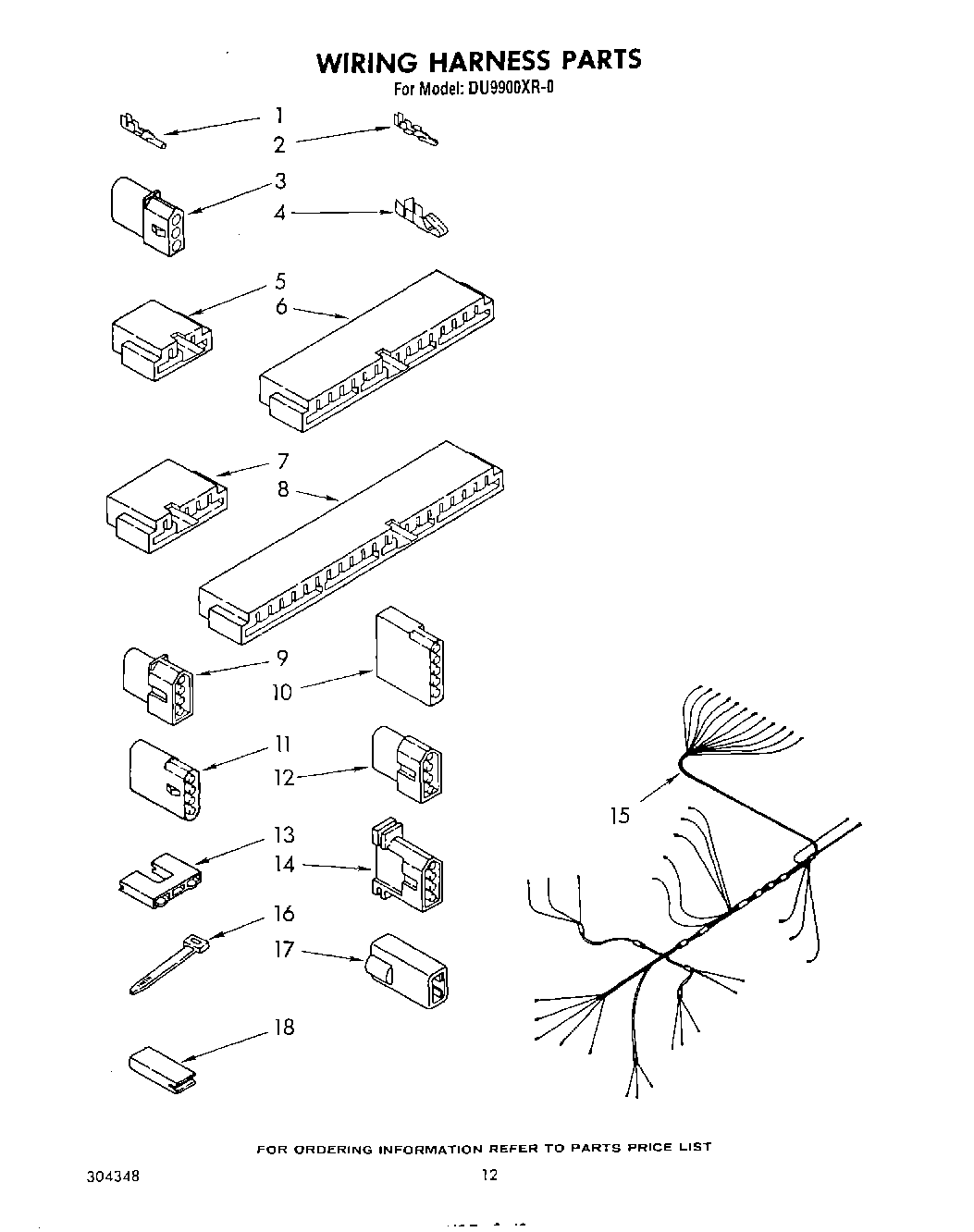

DU9900XR0 08 – WIRING HARNESS

Products

Position	Product
1	WP94614 Whirlpool Terminal
2	WP596797 Whirlpool Terminal
3	353424 Whirlpool Connector
4	Terminal
5	Connector (3-Circuit)
6	Connector
7	WPL 60671
8	Connector (21-Circuit)
9	Connector (Door Switch)
10	Receptacle (5-Circuit)
11	WPL 717315
12	Plug
13	Terminal Insulator
13	Connector Block (Alternate)
14	Plug, Terminal
15	Harness, Wiring
16	WPW10339879 Whirlpool Wire Tie
16	Wire, Tie (Red, 4“)
17	Insulator, Terminal
18	Connector Block
