DU9903XL0 02 – TUB , LITERATURE AND OPTIONAL

DU9903XL0 02 – TUB , LITERATURE AND OPTIONAL

Written by

in

DU9903XL0 02 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT303817
	Platinum (Uncut)
	WPL 72112
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	WPL LIT677967
	Vinyl Touch Up (Blue)
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Kit, Epoxy Patch (White)
	Washer (Belt Drive)
	WPL LIT303547
	WPL LIT303420
	WPL LIT303310
	WPL LIT303289
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)
	Leveler (Thinner)
	Dryer
	799344 Whirlpool Refrigerator Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	WP72107 Whirlpool Touchup
	72017 Whirlpool Appliance Touch-Up Paint White
	Almond (Uncut)
	72113 Whirlpool Touch-Up Paint
	Golden Harvest (Uncut)
	Golden Harvest
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	Toast

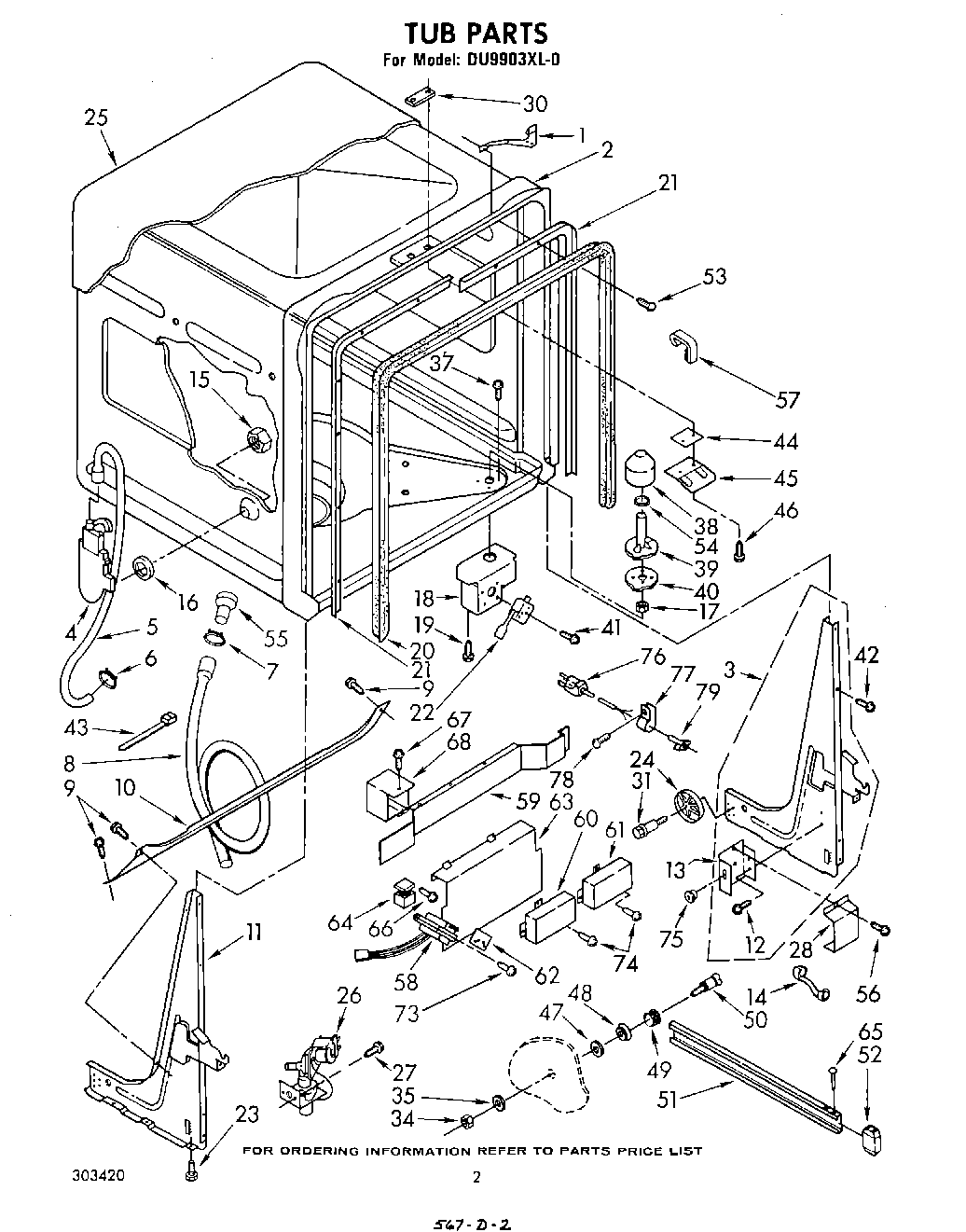

1	Bracket, Mounting (2)
2	Tub Assembly
3	Leg & Hinge Assembly, R.H.
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
9	WP302868 Whirlpool Screw
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Box, Terminal
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket (Alternate)
20	Gasket (Alternate)
21	Retainer (L.H.)
21	Retainer (R.H.)
22	Retainer-Main Top (2 Required)
22	Switch, Pressure (Alternate)
23	8193716 Whirlpool Leveling Leg
24	WP302819 Whirlpool Dishwasher Wheel
25	W11086533 Whirlpool Dishwasher Shield
26	Valve, Water Inlet (Alternate)
28	300068 Whirlpool Dishwasher Cover Assembly
30	Nut, Twin Spring
31	Screw, Shoulder
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
43	WPW10144763 Whirlpool Tie Wire
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	End Cap, Track (4)
54	Gasket, Standpipe (2)
55	WPL 301656
57	Clip, Gasket (2)
58	Transformer
59	Bracket, Mounting
60	Relay, 3-Coil (Main) (“A“)
61	Relay, 3-Coil (Motor) (“B“)
62	Barrier, Transformer
63	Barri
64	Relay, Start
65	WPL 303298
66	WPL 301588
67	Rivet, Serial Nameplate
68	WPL 302332
74	WP90767 Whirlpool Screw
75	WPL 302770
76	WPL 302764
77	Clamp, Strain Relief
78	Screw, 8-18 x 5/8 (10)
79	WPL 770754
