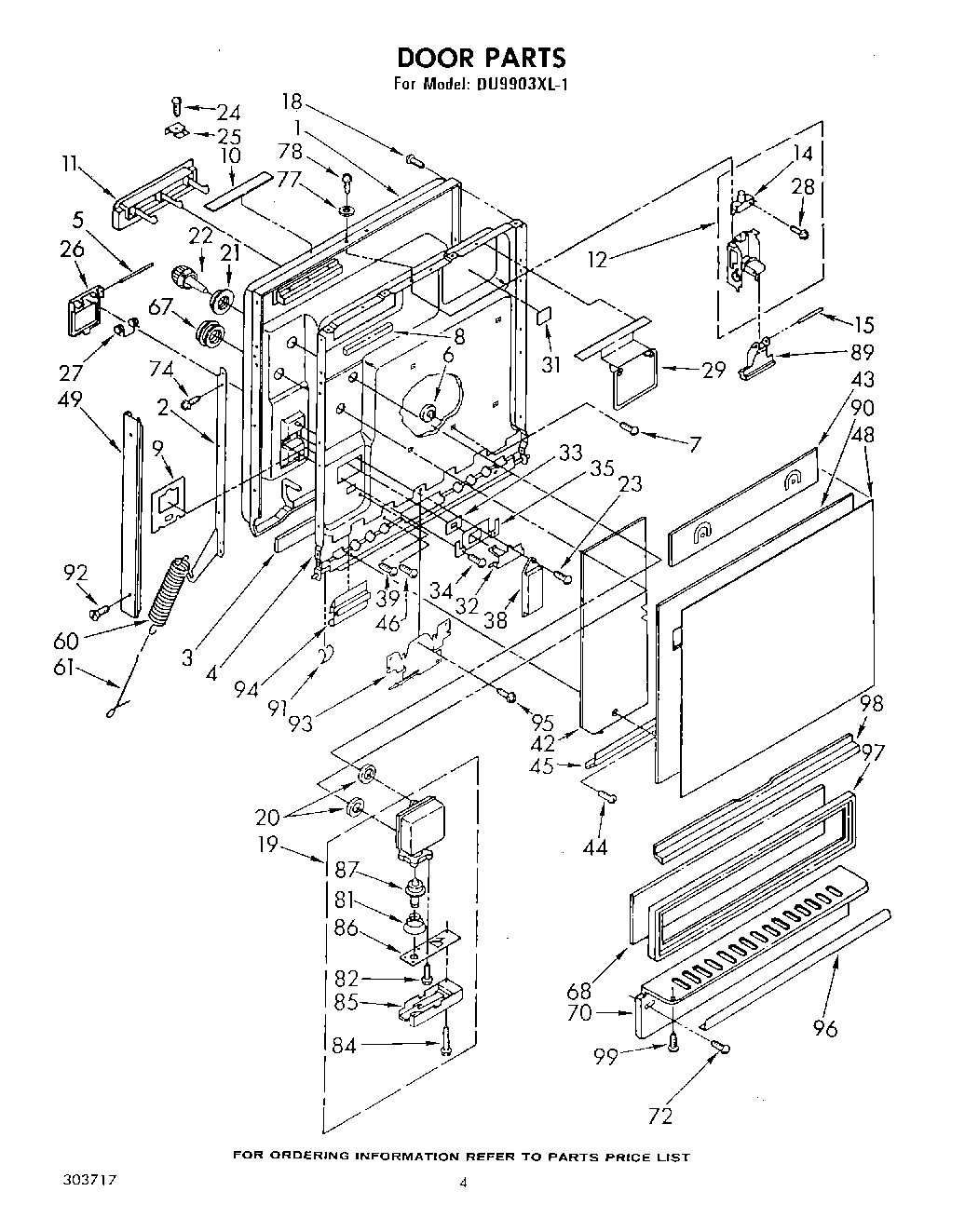

DU9903XL1 03 – DOOR

Products

Position	Product
1	Door, Inner (Includes Illus.4)
2	Support, Door (R.H.)
2	Support Door (L.H.)
3	Gasket, Door
4	Liner, Door
5	4387043 Whirlpool Door Latch Kit
6	Button, Retainer (3)
7	Screw, 8-18 x 3/8 (3)
8	Baffle
9	Barrier
10	Label, User Guide
11	Screen, Vent
12	Latch Assembly
14	Switch, Interlock
15	Pin, Pivot
18	WP488729 Whirlpool Refrigerator Door Screw
19	Dispenser, Wetting Agent
20	Washer
21	Nut, 1-14
22	Indicator, Level
25	Bracket, Mounting (2)
27	WP8066018 Whirlpool Spring Assembly
28	Screw, 6-32 x 1
29	Gravity Latch Assembly
31	Pad, Rubber
32	Lever, Catch
33	Seal, Lever
35	Retainer
38	Actuator
39	Screw, 8 x 1/2 (3)
42	Barrier, Door
43	Barrier, Console
44	W11693756 Whirlpool Screw Assembly
45	Edging, Panel
48	xxPanel, Front
49	Trim, Door (2)
60	674744 Whirlpool Dishwasher Door Spring 3 3/4"
61	WP716401 Whirlpool Dishwasher Retainer
67	Cap, Drip
68	xxPanel, Access
70	Plate, Toe
72	WP302868 Whirlpool Screw
74	WP488627 Whirlpool Refrigerator Screw
77	Washer (2)
78	WP90767 Whirlpool Screw
81	WPL 718592
82	WP98165 Whirlpool Screw
84	WP488163 Whirlpool Refrigerator Screw
85	Acutator Assembly
86	Plate
87	Diaphrag
89	Lever, Release
90	Spacer, Panel
91	Clip, Wire
92	302251 Whirlpool Dishwasher Screw
93	Shield, Harness
94	Retainer, Clip
95	Screw, 8-18 x 5/8
96	WPL 301815
97	WPL 301814
98	WPL 301816
99	WP965173 Whirlpool Dishwasher Screw
