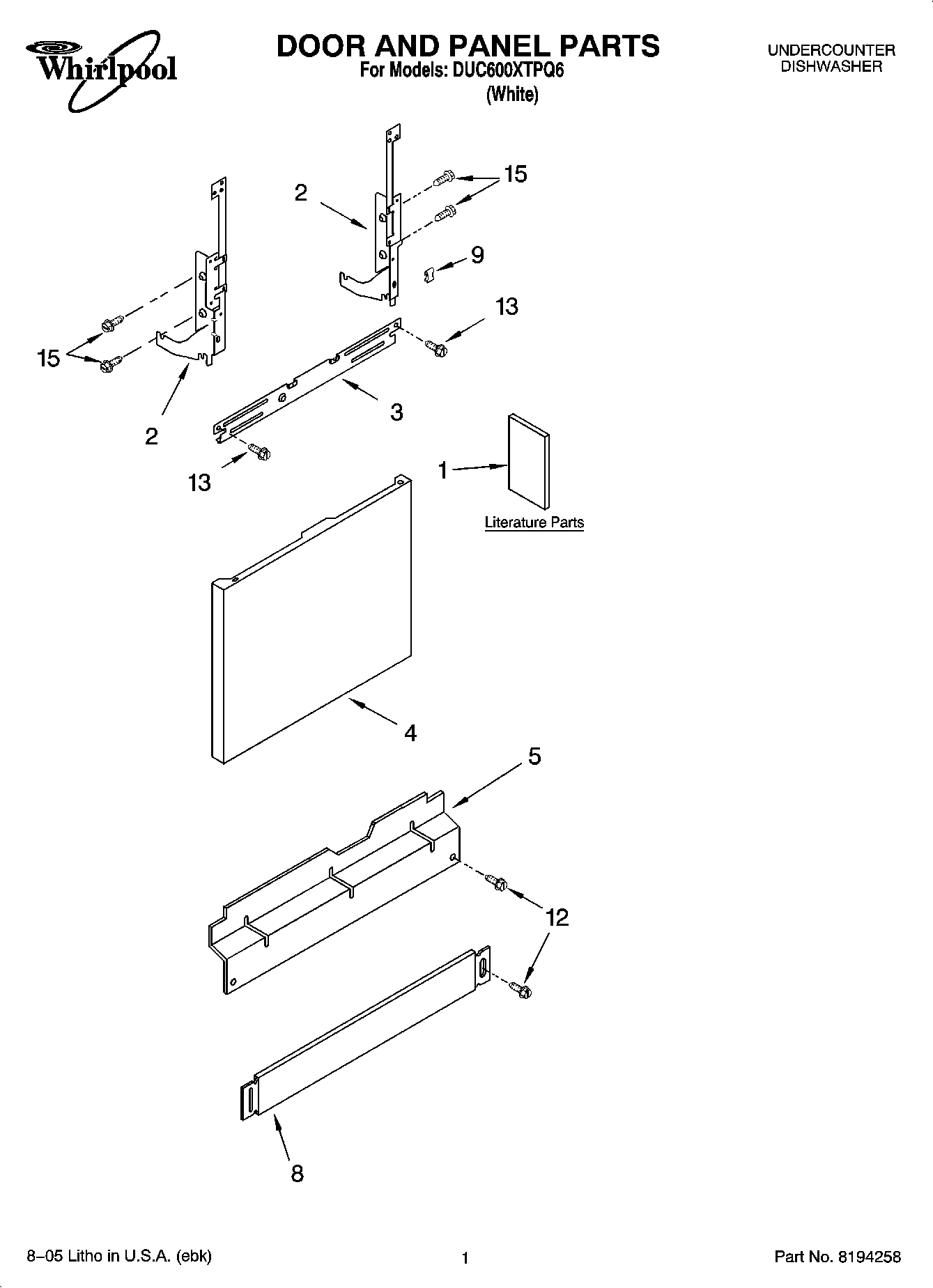

DUC600XTPQ6 01 – DOOR AND PANEL PARTS

DUC600XTPQ6 01 – DOOR AND PANEL PARTS

Written by

in

DUC600XTPQ6 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1English/French
1Instructions, Installation
1Energy Guide
1Guide, Use & Care Tech Sheet
2W11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3Stiffener, Door
4Panel Front (White)
5W10909066 Whirlpool Dishwasher Panel
8WPW10586591 Whirlpool Dishwasher Toe Panel
9Clip, Grounding
12WPW10503549 Whirlpool Dishwasher Retainer Clip
13SCREW
15Screw 10-16, Hi-Lo (4)
