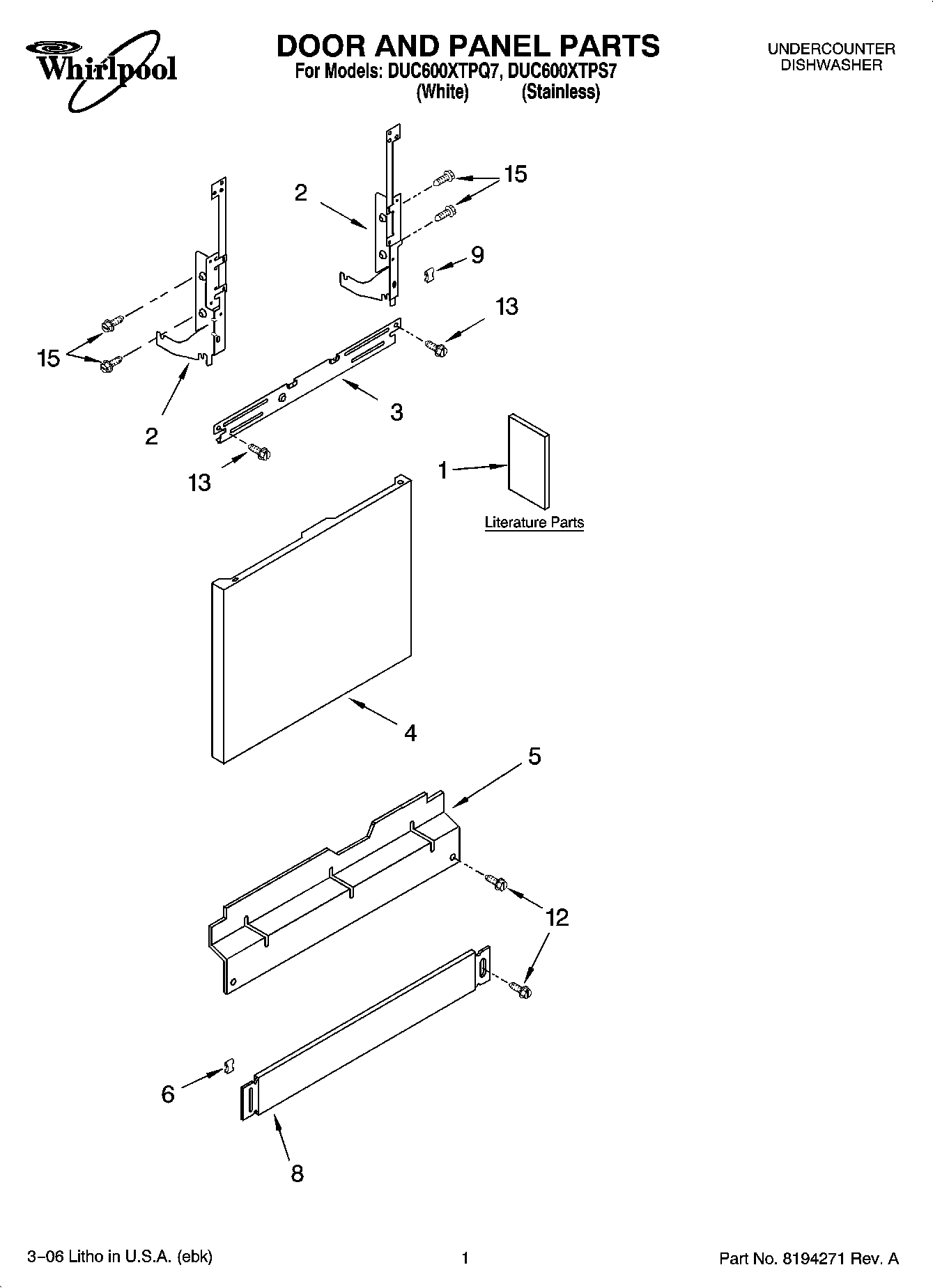

DUC600XTPS7 01 – DOOR AND PANEL PARTS

DUC600XTPS7 01 – DOOR AND PANEL PARTS

Written by

in

DUC600XTPS7 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Energy Guide
1Instructions, Installation
1Guide, Use & Care Tech Sheet
1Tech Sheet
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4Panel Front (Stainless)
4Panel Front (White)
5W10909066 Whirlpool Dishwasher Panel
5W10909064 Whirlpool Dishwasher Black Access Panel
6WP8269016 Whirlpool Clip Assembly
8WP8573287 Whirlpool Dishwasher Toe Panel
9Clip, Grounding
12WP302868 Whirlpool Screw
12WPW10503549 Whirlpool Dishwasher Retainer Clip
13SCREW
15WPW10109200 Whirlpool Screw
