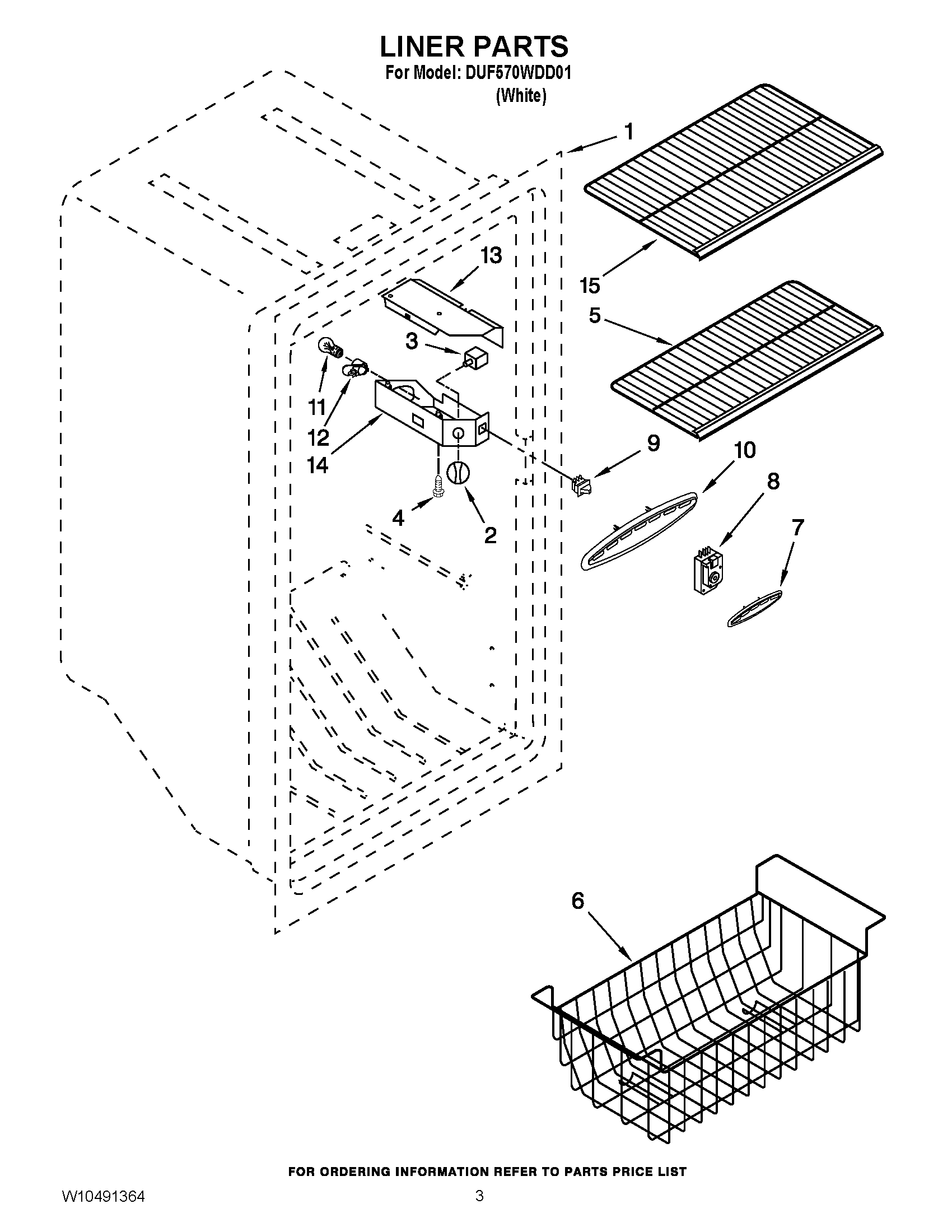

DUF570WDD01 02 – LINER PARTS

Written by

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	KNOB, CONTROL
3	THERMOSTAT
4	SCREW
5	SHELF, LOWER WIRE
6	BASKET, WIRE
7	AIR DIFFUSER, SHORT
8	TIMER, DEFROST
9	SWITCH, LIGHT
10	AIR DIFFUSER, LONG
11	BULB, LIGHT
12	4387478 Whirlpool Refrigerator Light Socket
13	SHIELD, LIGHT
14	BOX, CONTROL
15	SHELF, UPPER WIRE
