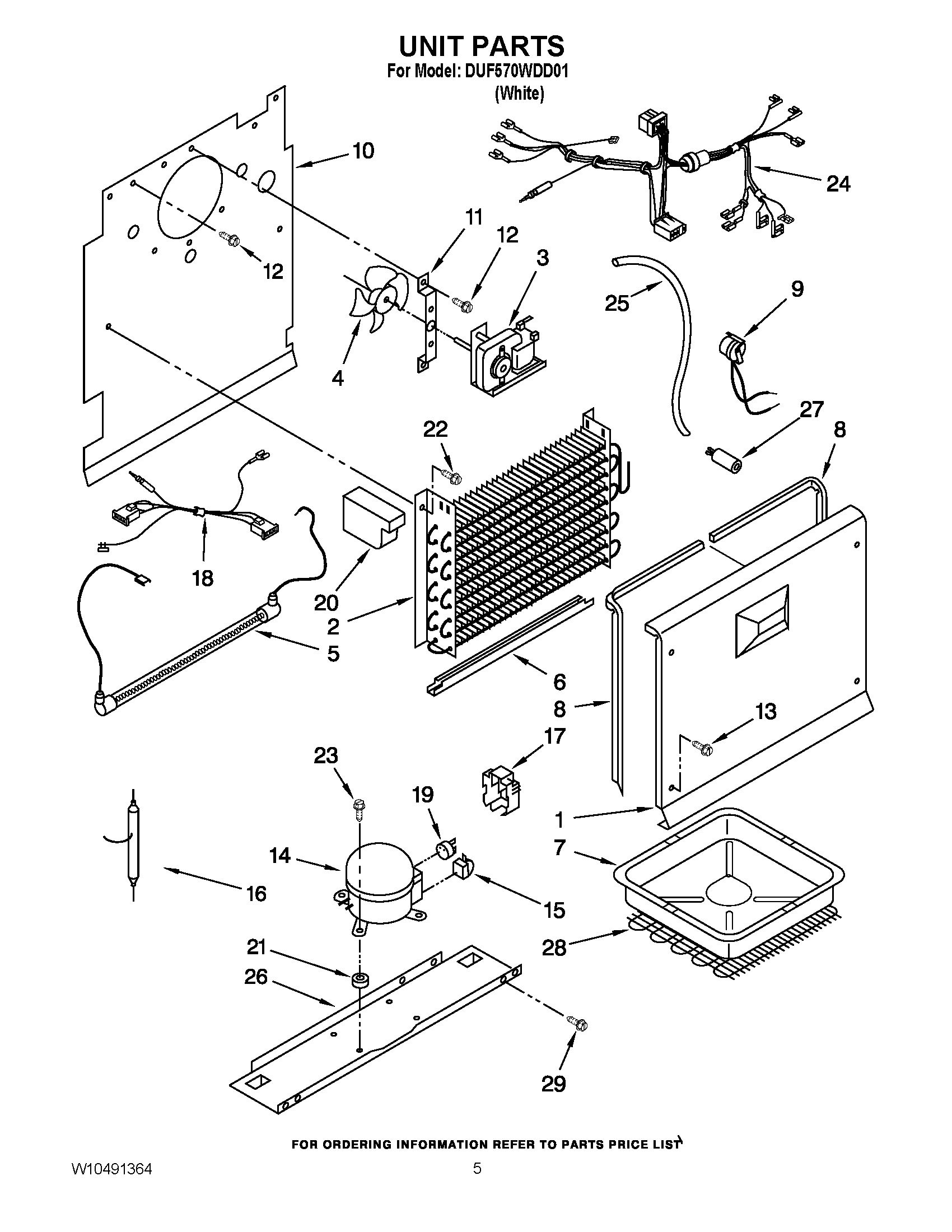

DUF570WDD01 03 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1COVER, EVAPORATOR
2EVAPORATOR
3MOTOR, FAN
4BLADE-FAN
5HEATER, DEFROST
6SHIELD, HEATER
7PAN, DRAIN
8GASKET, COVER EVAPORATOR (RIGHT SIDE)
8GASKET, COVER EVAPORATOR (LEFT SIDE)
9BI-METAL DEFROST
10PLATE, EVAPORATOR MOUNT
11BRACKET, MOTOR
12SCREW
13SCREW
14COMPRESSOR
15RELAY
16DRIER
17COVER
18HARNESS, FAN
19OVERLOAD
20BLOCK, FOAM
21WP2163786 Whirlpool Refrigerator Grommet
22SCREW
23BOLT, COMPRESSOR
24HARNESS, FF, LT
25EXCHANGER, HEAT
26WPW10470133 Whirlpool Compressor Pan
27GROMMET
28CONDENSER
29SCREW
