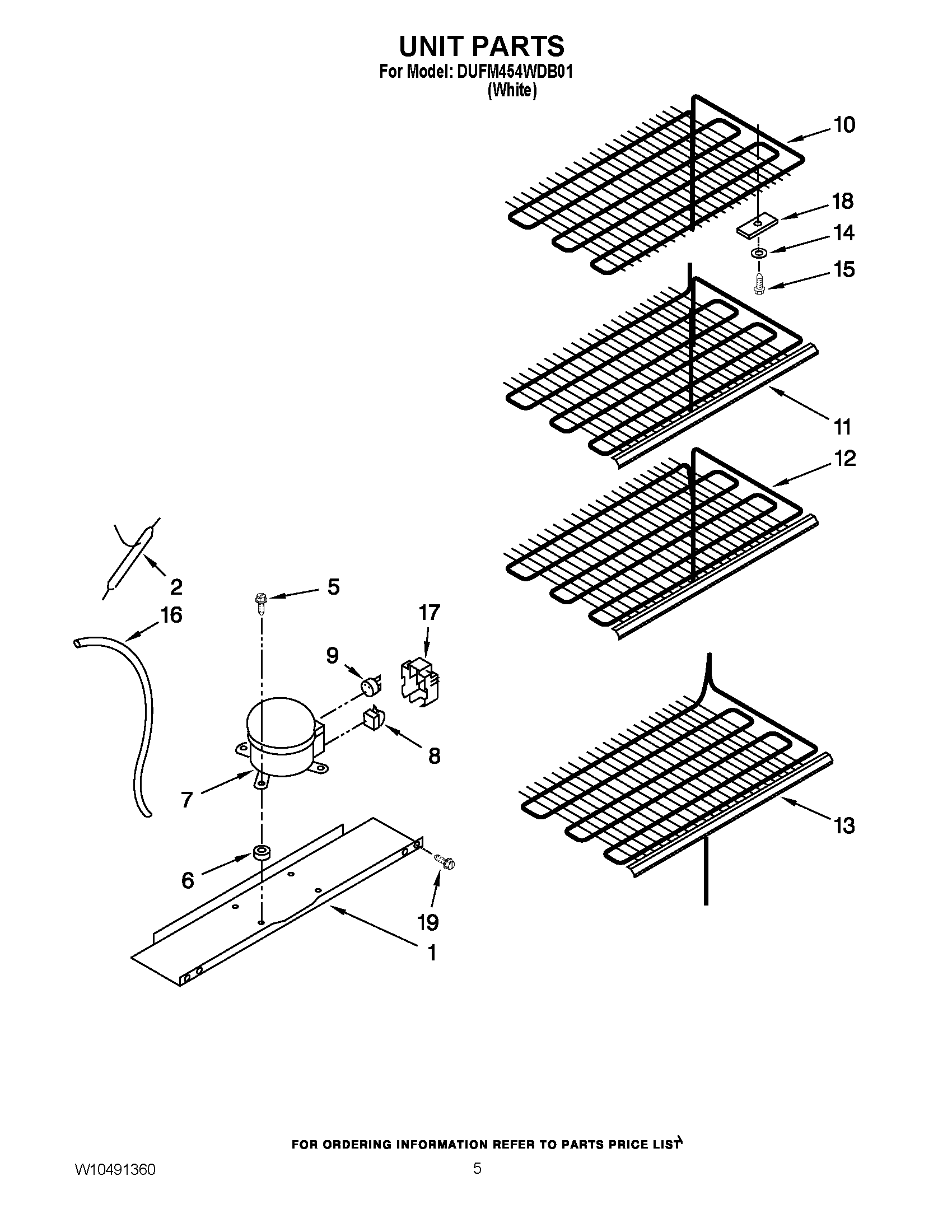

DUFM454WDB01 03 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1WPW10470130 Whirlpool Compressor Pan
2W10843121 Whirlpool Refrigerator Tube
5BOLT, COMPRESSOR
6WP2163786 Whirlpool Refrigerator Grommet
7COMPRESSOR (INCLUDES ITEMS 2, 3, 4, 5, 6 & 8)
8RELAY
9OVERLOAD
10EVAPORATOR TOP
11EVAPORATOR SHELF
12EVAPORATOR SHELF
13EVAPORATOR BOTT
14WASHER
15SCREW, EVAPORATOR MOUNTING
16HEAT EXCHANGER
17COVER
18CLAMP
19SCREW
