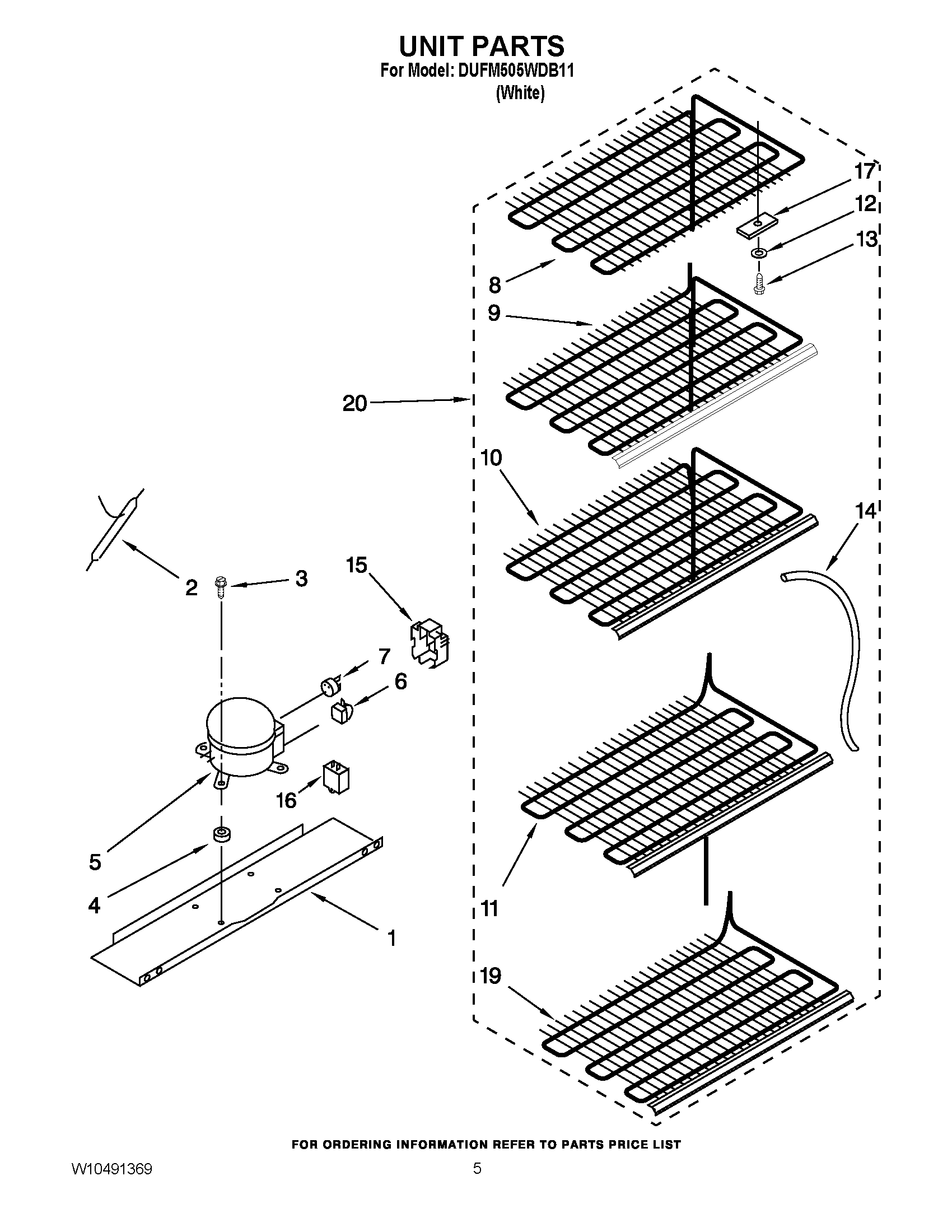

DUFM505WDB11 03 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	WPW10470130 Whirlpool Compressor Pan
2	W10843121 Whirlpool Refrigerator Tube
3	SCREW
4	WP2163786 Whirlpool Refrigerator Grommet
5	COMPRESSOR (INCLUDES ITEMS 4, 6, 7, & 15)
6	WPW10466655 Whirlpool Refrigerator Start Relay
7	OVERLOAD
8	EVAPORATOR, TOP
9	EVAPORATOR SHELF
10	EVAPORATOR SHELF
11	EVAPORATOR SHELF
12	WASHER
13	SCREW, EVAPORATOR MOUNTING
14	HEAT EXCHANGER
15	WP61002138 Whirlpool Refrigerator Terminal Cover
16	CAPACITOR
17	CLAMP
19	EVAPORATOR SHELF, BOTTOM
20	EVAPORATOR ASSY
