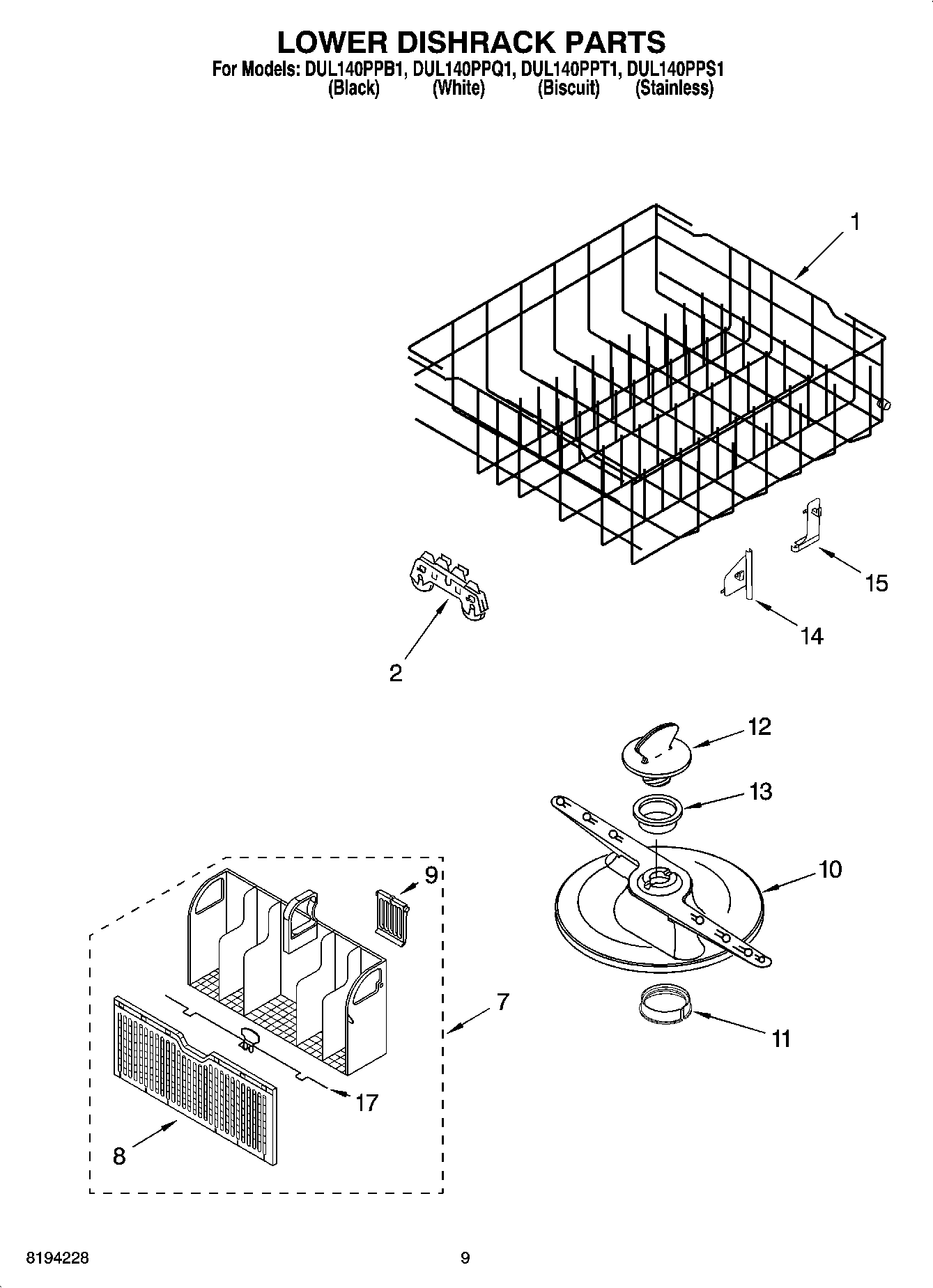

DUL140PPB1 06 – LOWER DISHRACK PARTS, OPTIONAL PARTS

DUL140PPB1 06 – LOWER DISHRACK PARTS, OPTIONAL PARTS

Written by

in

DUL140PPB1 06 – LOWER DISHRACK PARTS, OPTIONAL PARTS

Products

PositionProduct
72017 Whirlpool Appliance Touch-Up Paint White
Door Spring Kit:
ACCESSORY PARTS
DISHRACK REPAIR
DOOR SPRING KIT: (HEAVY DUTY)
Side Panel Kit (White)
WP676455 Whirlpool Dishwasher Touch-Up
WP676453 Whirlpool Dishwasher Touch-Up
WPL 677967
72032 Whirlpool Touch Up Paint Black
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Enamel, Black (1 Qt. Uncut)
285006 Whirlpool Spray
1W10161215 Whirlpool Dishwasher Dishrack
2WP8268645 Whirlpool Dishwasher Lower Dishrack Roller Assembly
7Silverware Basket Asembly
8Door, Silverware Basket
9Lid, Silverware Basket
10WP8268874 Whirlpool Dishwasher Spray Arm
11WP3376846 Whirlpool Seal
12WP8268873 Whirlpool Dishwasher Nut
13WP9742946 Whirlpool Dishwasher Spray Arm Bearing
148268867 Whirlpool Dishwasher Clip
158268868 Whirlpool Dishwasher Clip
17Latch Assembly
