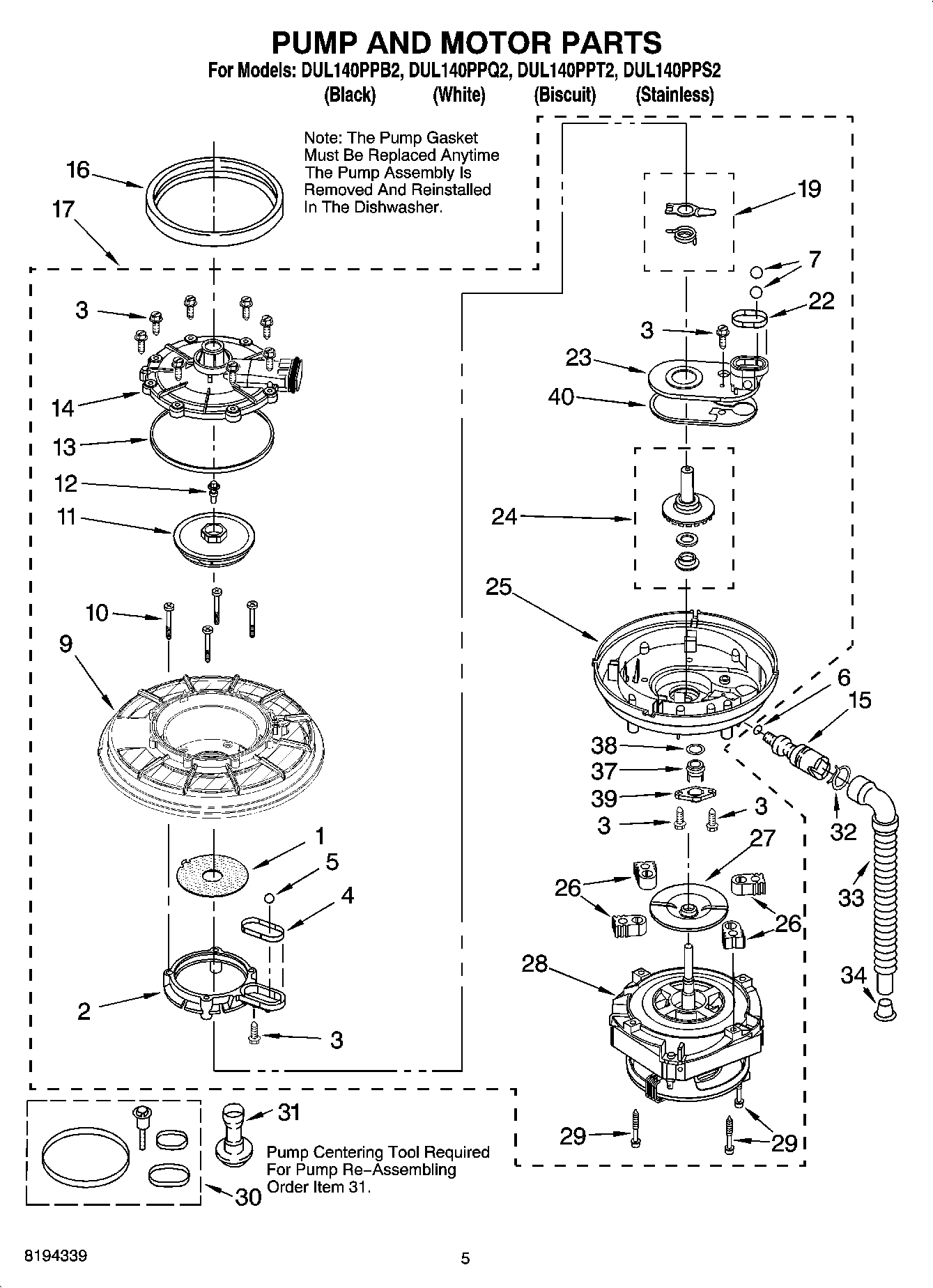

DUL140PPB2 04 – PUMP AND MOTOR PARTSadmin2025-04-26T11:43:57+00:00DUL140PPB2 04 – PUMP AND MOTOR PARTS ProductsPositionProduct1Plate, Perforated (Also Order Item 30) See Note A.2Base, Inlet (Includes Items 1 & 5) (Also Order Item 30) See Note A.3WP9741232 Whirlpool Dishwasher Screw4WP302710 Whirlpool Dishwasher Ring Seal5Ball, Check6``O`` Ring7WP719929 Whirlpool Dishwasher Check Ball9Filter10Screw12WP3371152 Whirlpool Dishwasher Screw13WP302711 Whirlpool Dishwasher Ring Seal148194582 Whirlpool Dishwasher Outlet15675238 Whirlpool Check Valve16717000 Whirlpool Dishwasher Gasket17W10428167 Whirlpool Dishwasher Pump and Motor19675806 Whirlpool Dishwasher Pump Impeller and Seal Kit22Seal, Drain Cover23Cover, Drain (Also Order Item 30 & 40) See Note A.24WP8274950 Whirlpool Dishwasher Impeller25Base, Pump (Also Order Item 30) See Note A.26WP3367197 Whirlpool Dishwasher Support27W10909679 Whirlpool Dishwasher Slinger28Motor (Includes Item 27) (Also Order Item 30) See Note A.29Screw30W10428168 Whirlpool Dishwasher Pump and Motor31Tool, Pump Centering32WP356138 Whirlpool Hose Clamp33WP3374077 Whirlpool Dishwasher Drain Hose343371748 Whirlpool Dishwasher Cap37Thermostat38WP3376723 Whirlpool Dishwasher Seal39WP3376358 Whirlpool Dishwasher Retainer40WP9740674 Whirlpool Dishwasher Gasket40NOTE A: Pump Centering Tool Required For Pump Re-
