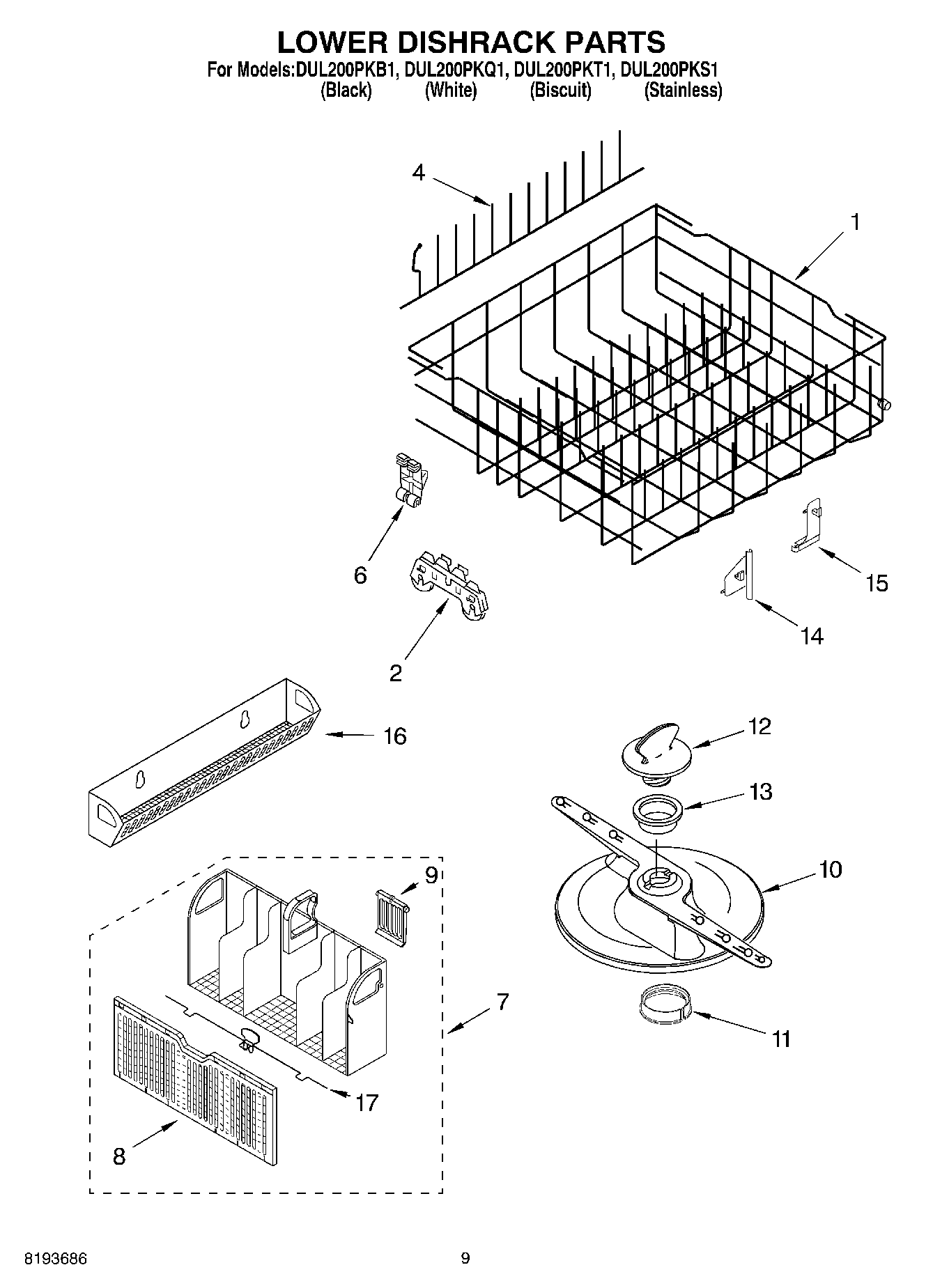

DUL200PKQ1 06 – LOWER DISHRACK PARTS

Products

Position	Product
1	W10161215 Whirlpool Dishwasher Dishrack
2	WP8268645 Whirlpool Dishwasher Lower Dishrack Roller Assembly
4	Tinerow, Folding
6	WP8268522 Whirlpool Dishwasher Retainer
7	Silverware Basket Assembly
8	Door, Silverware Basket
9	Lid, Silverware Basket
10	WP8268874 Whirlpool Dishwasher Spray Arm
11	WP3376846 Whirlpool Seal
12	WP8268873 Whirlpool Dishwasher Nut
13	WP9742946 Whirlpool Dishwasher Spray Arm Bearing
14	8268867 Whirlpool Dishwasher Clip
15	8268868 Whirlpool Dishwasher Clip
16	Basket, Utensil
17	Latch Assembly
