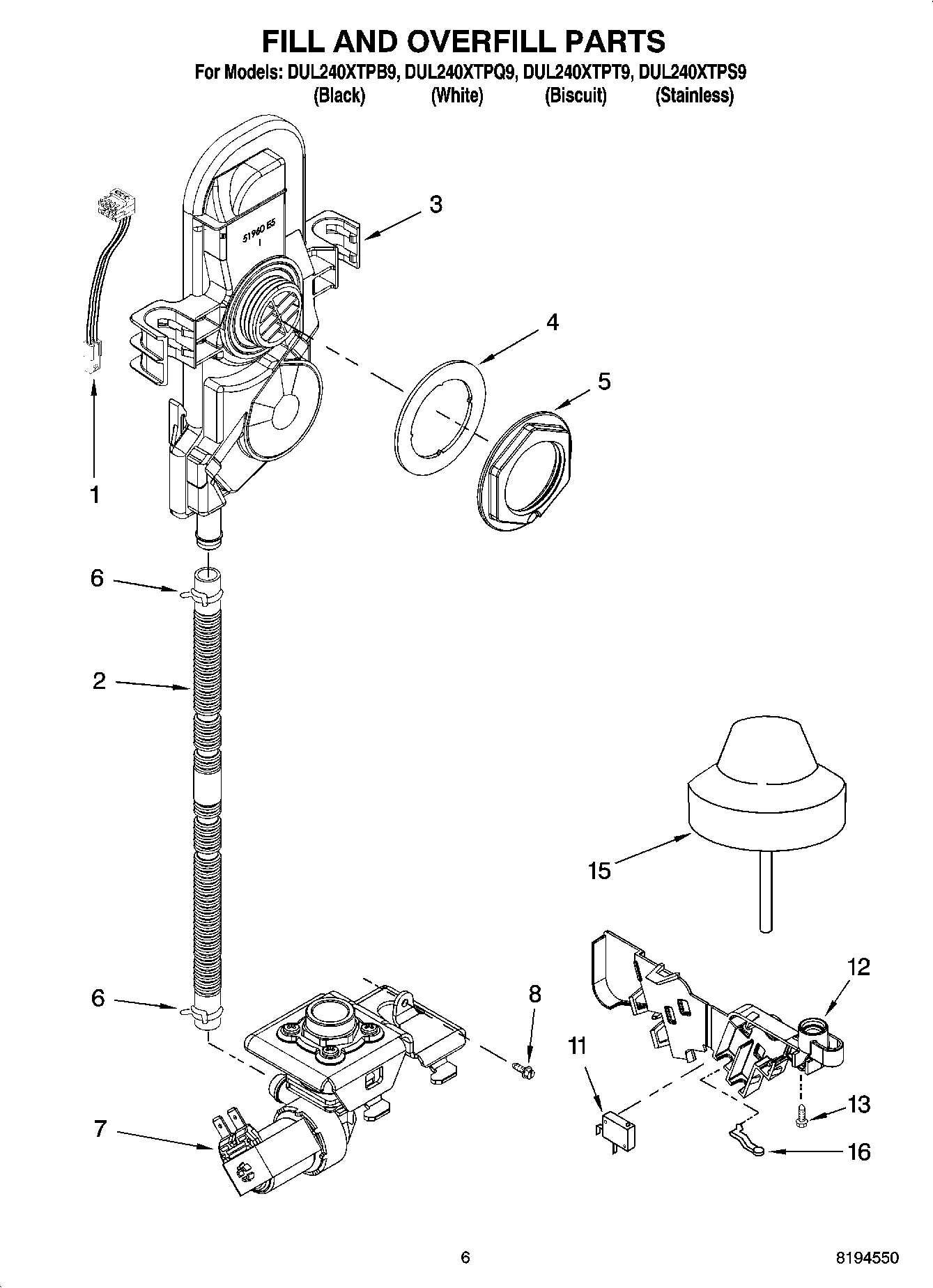

DUL240XTPB9 06 – FILL AND OVERFILL PARTS

DUL240XTPB9 06 – FILL AND OVERFILL PARTS

Written by

in

DUL240XTPB9 06 – FILL AND OVERFILL PARTS

Products

PositionProduct
1Wire, Jumper
2WPW10041920 Whirlpool Dishwasher Fill Hose
3Water Inlet (Also Order Item 4)
4WP8531323 Whirlpool Gasket Seal
5WPW10508676 Whirlpool Dishwasher Tube Nut
6WP596669 Whirlpool Hose Clamp
7WPW10158389 Whirlpool Dishwasher Inlet Valve
8WP489069 Whirlpool Compactor Screw
11WP8268909 Whirlpool Dishwasher Switch
12WPW10175383 Whirlpool Dishwasher Standpipe
13WP304231 Whirlpool Dishwasher Screw
15WP8268913 Whirlpool Dishwasher Float Assembly
16WP8268892 Whirlpool Dishwasher Lever
