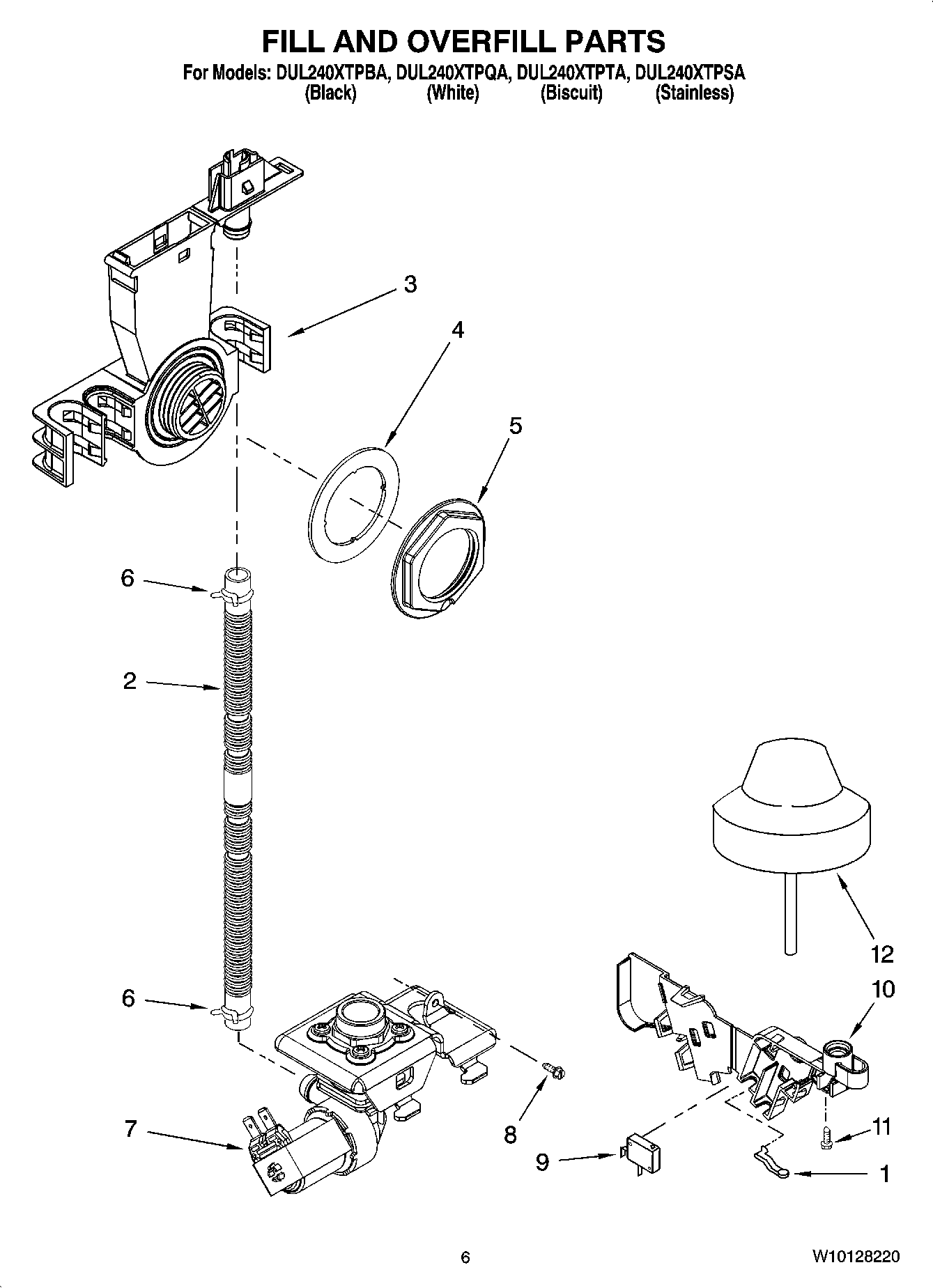

DUL240XTPBA 06 – FILL AND OVERFILL PARTS

DUL240XTPBA 06 – FILL AND OVERFILL PARTS

Written by

in

DUL240XTPBA 06 – FILL AND OVERFILL PARTS

Products

PositionProduct
1WP8268892 Whirlpool Dishwasher Lever
2W10878507 Whirlpool Inlet Hose
3WPW10195536 Whirlpool Water Inlet Valve
4WP8531323 Whirlpool Gasket Seal
5WPW10508676 Whirlpool Dishwasher Tube Nut
6WP596669 Whirlpool Hose Clamp
7WPW10158389 Whirlpool Dishwasher Inlet Valve
8WP489069 Whirlpool Compactor Screw
9WP8268909 Whirlpool Dishwasher Switch
10WPW10175383 Whirlpool Dishwasher Standpipe
11WP304231 Whirlpool Dishwasher Screw
12WP8268913 Whirlpool Dishwasher Float Assembly
