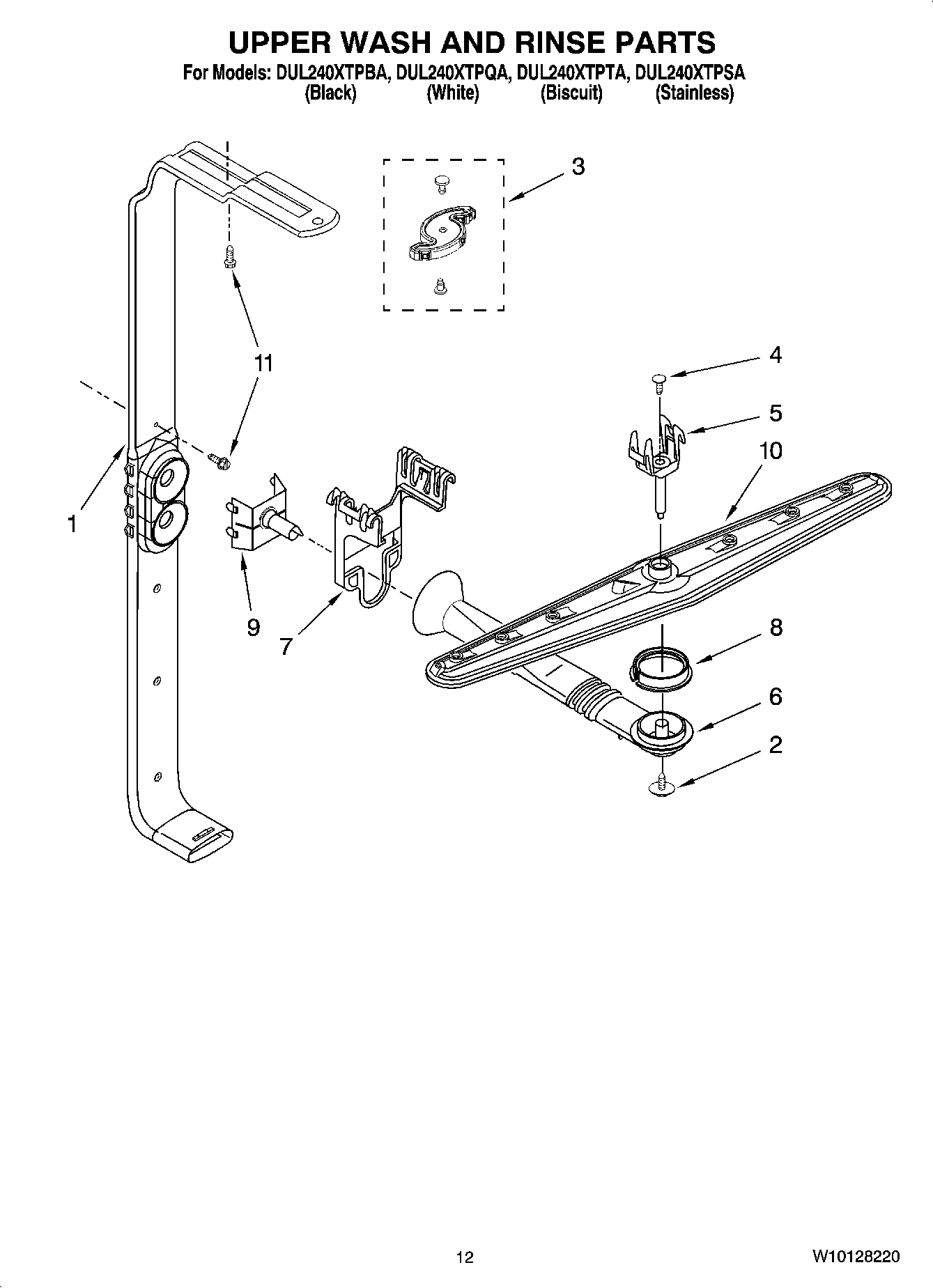

DUL240XTPBA 10 – UPPER WASH AND RINSE PARTS

DUL240XTPBA 10 – UPPER WASH AND RINSE PARTS

Written by

in

DUL240XTPBA 10 – UPPER WASH AND RINSE PARTS

Products

PositionProduct
1Feed Tube Assembly (Also Includes Items 3 & 9)
2WPW10349488 Whirlpool Screw
38193983 Whirlpool Spinner Kit
4WP3400919 Whirlpool Dishwasher Screw Cover
5WP8268321 Whirlpool Dishwasher Mount
6WP8268326 Whirlpool Dishwasher Tube
7Holder, Feed Tube
8WP8268433 Whirlpool Seal Assembly
9Nozzle
10WP8269024 Whirlpool Dishwasher Spray Arm
11WP489443 Whirlpool Refrigerator Screw
