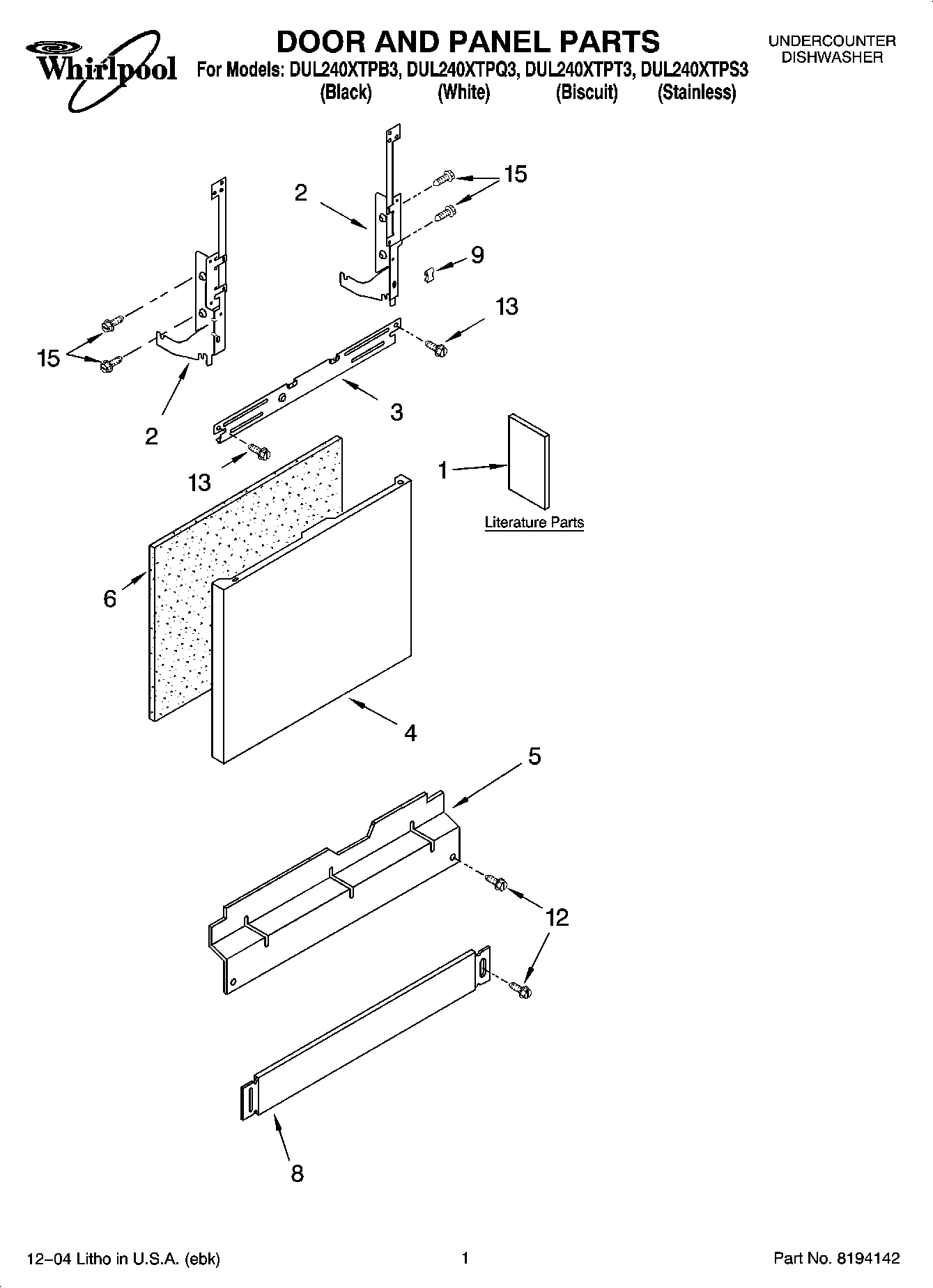

DUL240XTPQ3 01 – DOOR AND PANEL PARTS

DUL240XTPQ3 01 – DOOR AND PANEL PARTS

Written by

in

DUL240XTPQ3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Instructions, Installation
1Guide, Use & Care Tech Sheet
1Energy Guide
1English/French
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4W10384707 Whirlpool Dishwasher Panel
4W10301571 Whirlpool Dishwasher Panel
4W10301577 Whirlpool Outer Door Panel
4Panel Front (White)
5W10871198 Whirlpool Dishwasher Panel
5W10909066 Whirlpool Dishwasher Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
8W10909064 Whirlpool Dishwasher Black Access Panel
8Toe Panel (Biscuit)
8WPW10586591 Whirlpool Dishwasher Toe Panel
9Clip, Grounding
12WP302868 Whirlpool Screw
12WPW10503549 Whirlpool Dishwasher Retainer Clip
12WPW10503550 Whirlpool Dishwasher Retainer
13SCREW
15Screw 10-16, Hi-Lo (4)
