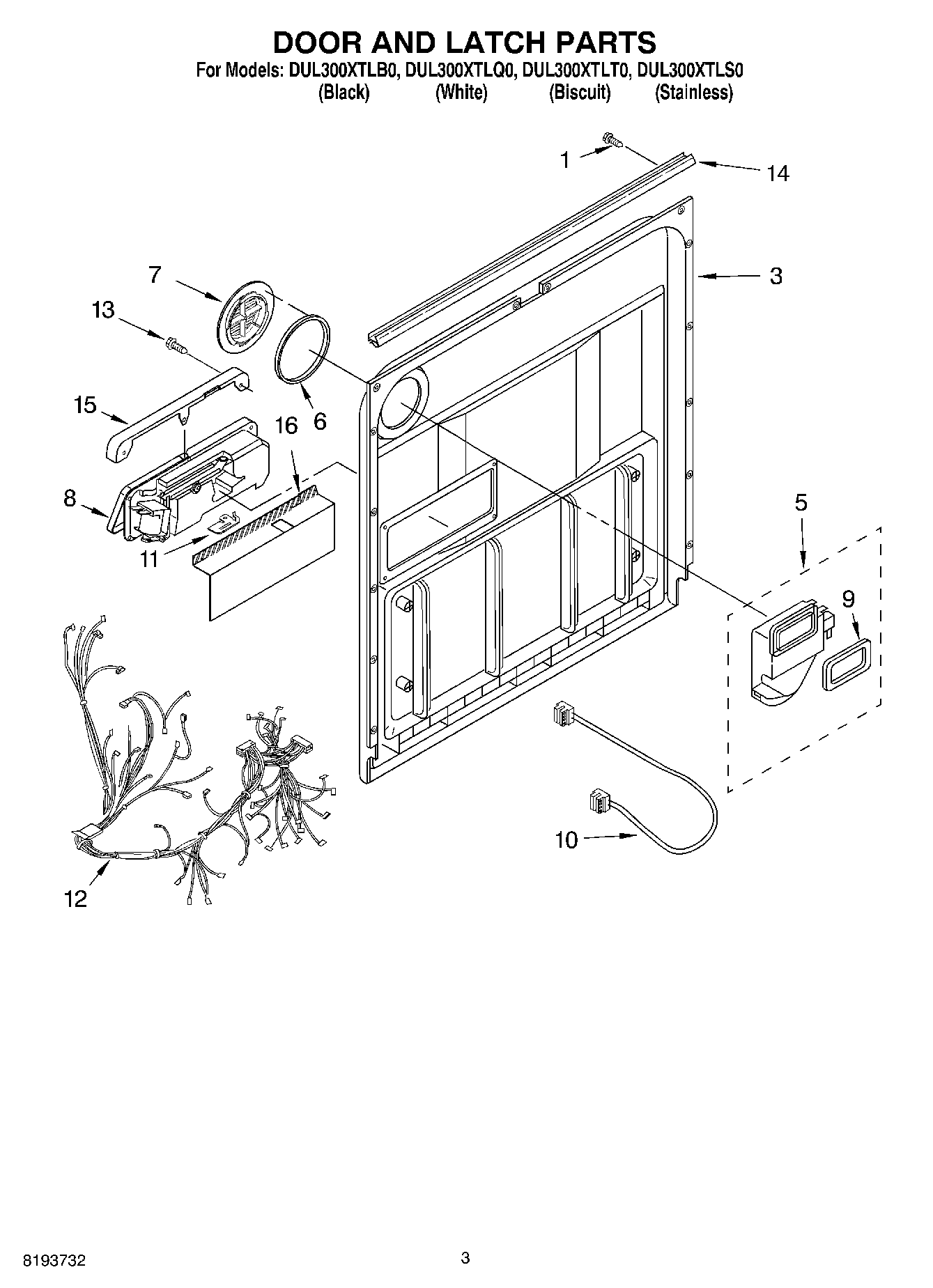

DUL300XLTS0 03 – DOOR AND LATCH

Products

Position	Product
1	WPW10348409 Whirlpool Screw
3	WP8269311 Whirlpool Dishwasher Inner Door
5	WP8545533 Whirlpool Dishwasher Vent
6	WP8269259 Whirlpool Air Vent Gasket
7	DEFLECTOR
8	Dispenser, Assembly
9	WP8269258 Whirlpool Dishwasher Gasket
10	Dispenser, Wiring Harness
11	WP8533381 Whirlpool Dishwasher Sensor
12	Wiring Harness Main
13	WPW10177098 Whirlpool Dishwasher Screw
14	WP8269296 Whirlpool Dishwasher Seal
15	WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
16	Shield, Dispenser
