DUL300XLTS0 11 – LOWER RACK

DUL300XLTS0 11 – LOWER RACK

Written by

in

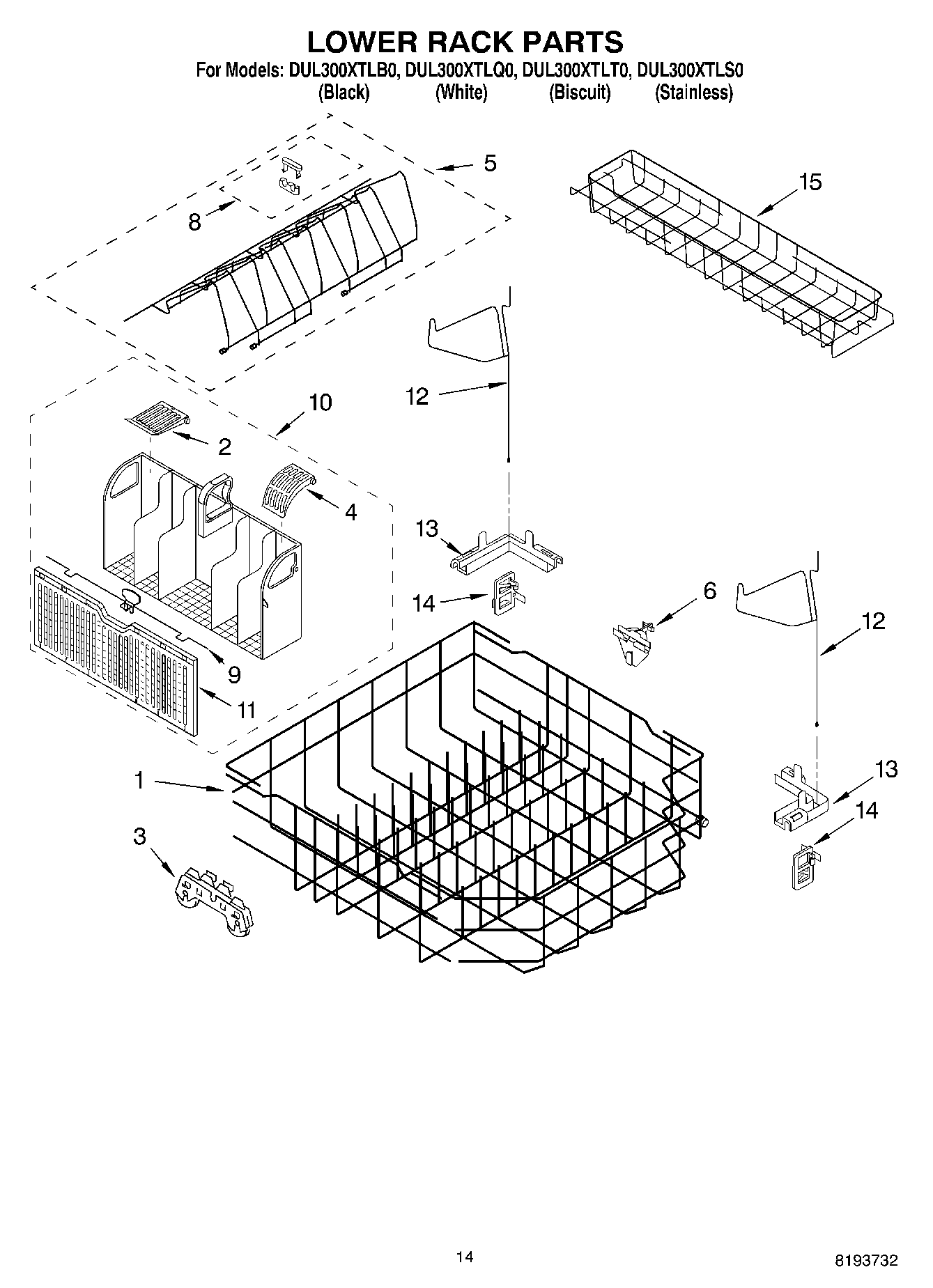

DUL300XLTS0 11 – LOWER RACK

Products

PositionProduct
1W10311986 Whirlpool Dishwasher Lower Rack
2Lid, Small Items
3WP8268645 Whirlpool Dishwasher Lower Dishrack Roller Assembly
4Cover, Small Items
5Holder, Plate
68269308 Whirlpool Dishwasher Clip
88193634 Whirlpool Dishwasher Clip Assembly
9Latch Assembly
10Silverware Basket Assembly
11Door, Silverware Basket
12Support, Third Level
13Pivot, Support Top
14Pivot, Support Lower
15Basket, 3rd Level
