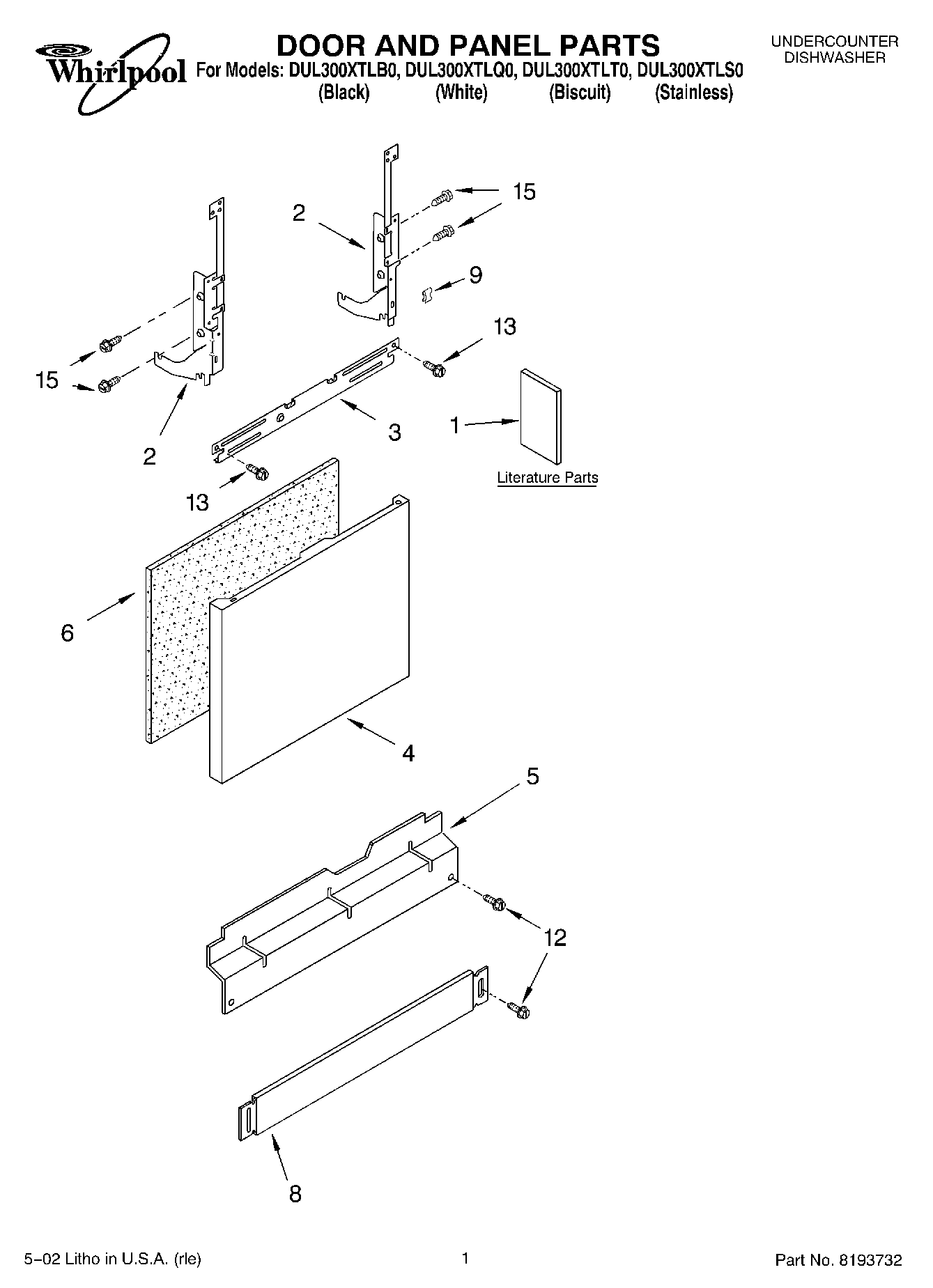

DUL300XLTT0 01 – DOOR AND PANEL, LITERATURE

DUL300XLTT0 01 – DOOR AND PANEL, LITERATURE

Written by

in

DUL300XLTT0 01 – DOOR AND PANEL, LITERATURE

Products

PositionProduct
1Literature Parts (Energy Guide)
1Instructions, Installation
1Literature Parts (Guide, Use & Care Tech Sheet)
1Literature Parts (English)
1Literature Parts (French)
2W11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3Stiffener, Door
4W10301577 Whirlpool Outer Door Panel
4W10384707 Whirlpool Dishwasher Panel
4Panel Front (White)
4W10301571 Whirlpool Dishwasher Panel
5W10909066 Whirlpool Dishwasher Panel
5W10871198 Whirlpool Dishwasher Panel
5W10909064 Whirlpool Dishwasher Black Access Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
8Toe Panel (Biscuit)
8WPW10586591 Whirlpool Dishwasher Toe Panel
9Clip, Grounding
12WPW10503550 Whirlpool Dishwasher Retainer
12WPW10503549 Whirlpool Dishwasher Retainer Clip
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
15Screw 10-16, Hi-Lo (4)
