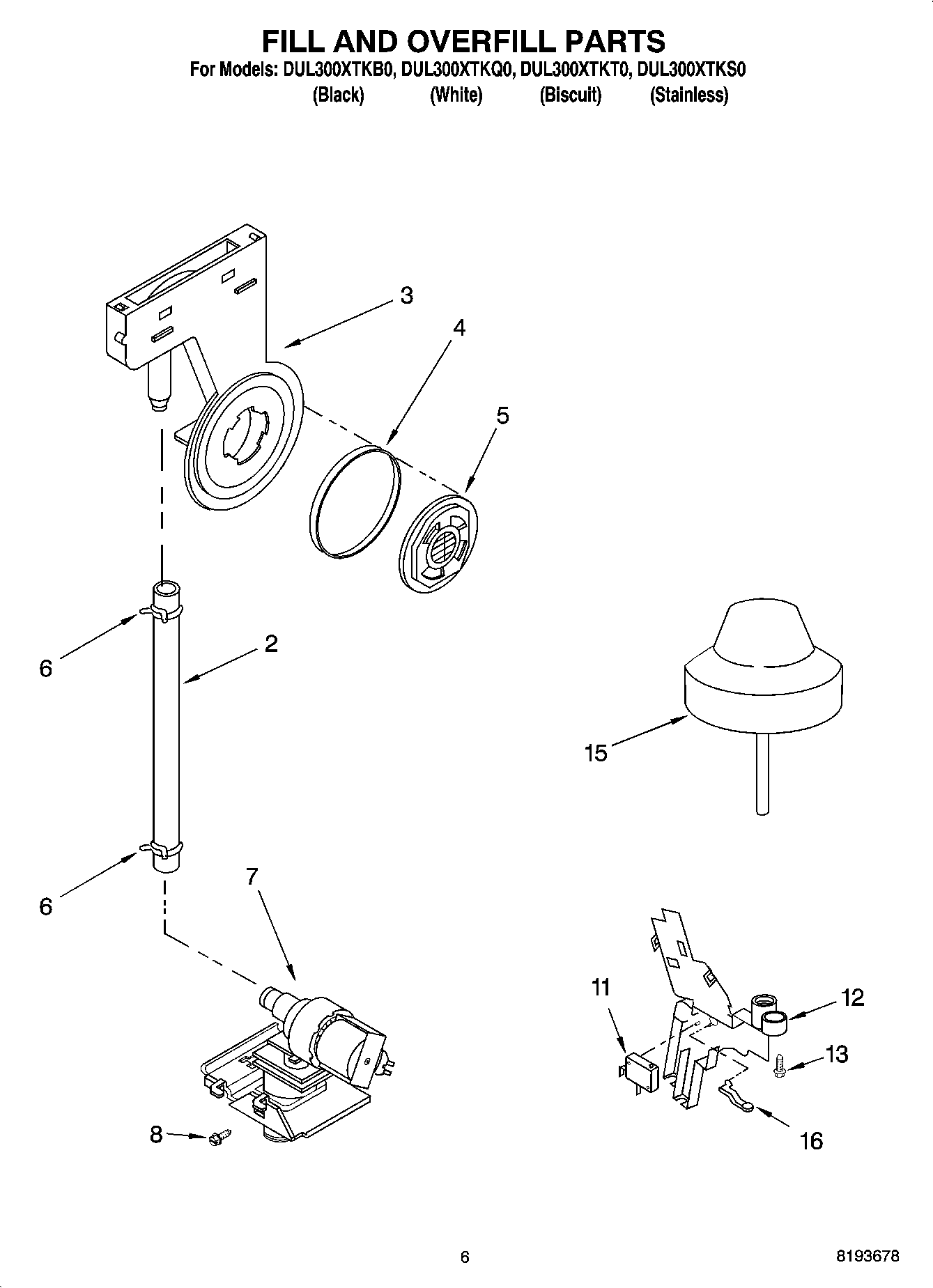

DUL300XTKS0 06 – FILL AND OVERFILL PARTS

Products

PositionProduct
2WP8269242 Whirlpool Dishwasher Fill Hose
3Water Inlet Assembly (Includes Items 4 & 5)
4Gasket
5Bezel, Inlet
6WP596669 Whirlpool Hose Clamp
7WP8531669 Whirlpool Dishwasher Inlet Valve
8WP489069 Whirlpool Compactor Screw
11WP8268909 Whirlpool Dishwasher Switch
12WPW10175383 Whirlpool Dishwasher Standpipe
13WP304231 Whirlpool Dishwasher Screw
15WP8268913 Whirlpool Dishwasher Float Assembly
16WP8268892 Whirlpool Dishwasher Lever
