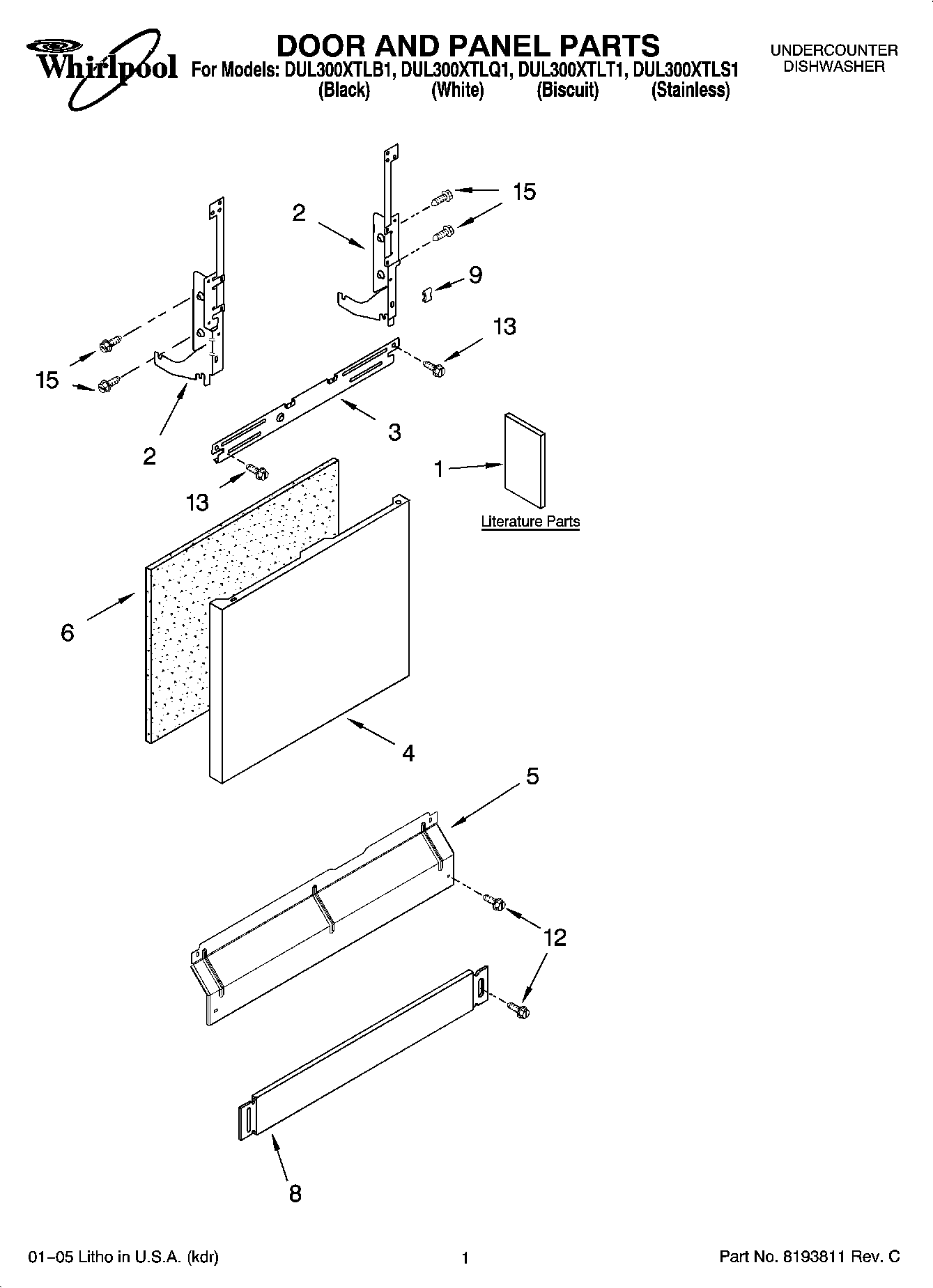

DUL300XTLQ1 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Literature Parts (Energy Guide)
1	Literature Parts (Guide, Use & Care Tech Sheet)
1	Instructions, Installation
1	Literature Parts (English/French)
2	W11613573 Whirlpool Door Hinge
2	W11613572 Whirlpool Dishwasher Door Hinge
3	Stiffener, Door
4	Panel Front (White)
4	W10301571 Whirlpool Dishwasher Panel
4	W10384707 Whirlpool Dishwasher Panel
4	W10301577 Whirlpool Outer Door Panel
5	W10909066 Whirlpool Dishwasher Panel
5	W10871198 Whirlpool Dishwasher Panel
6	WPW10073520 Whirlpool Dishwasher Insulation Pad
8	W10909064 Whirlpool Dishwasher Black Access Panel
8	WPW10586591 Whirlpool Dishwasher Toe Panel
8	Toe Panel (Biscuit)
9	Clip, Grounding
12	WP302868 Whirlpool Screw
12	WPW10503550 Whirlpool Dishwasher Retainer
12	WPW10503549 Whirlpool Dishwasher Retainer Clip
13	WP489069 Whirlpool Compactor Screw
15	WPW10109200 Whirlpool Screw
