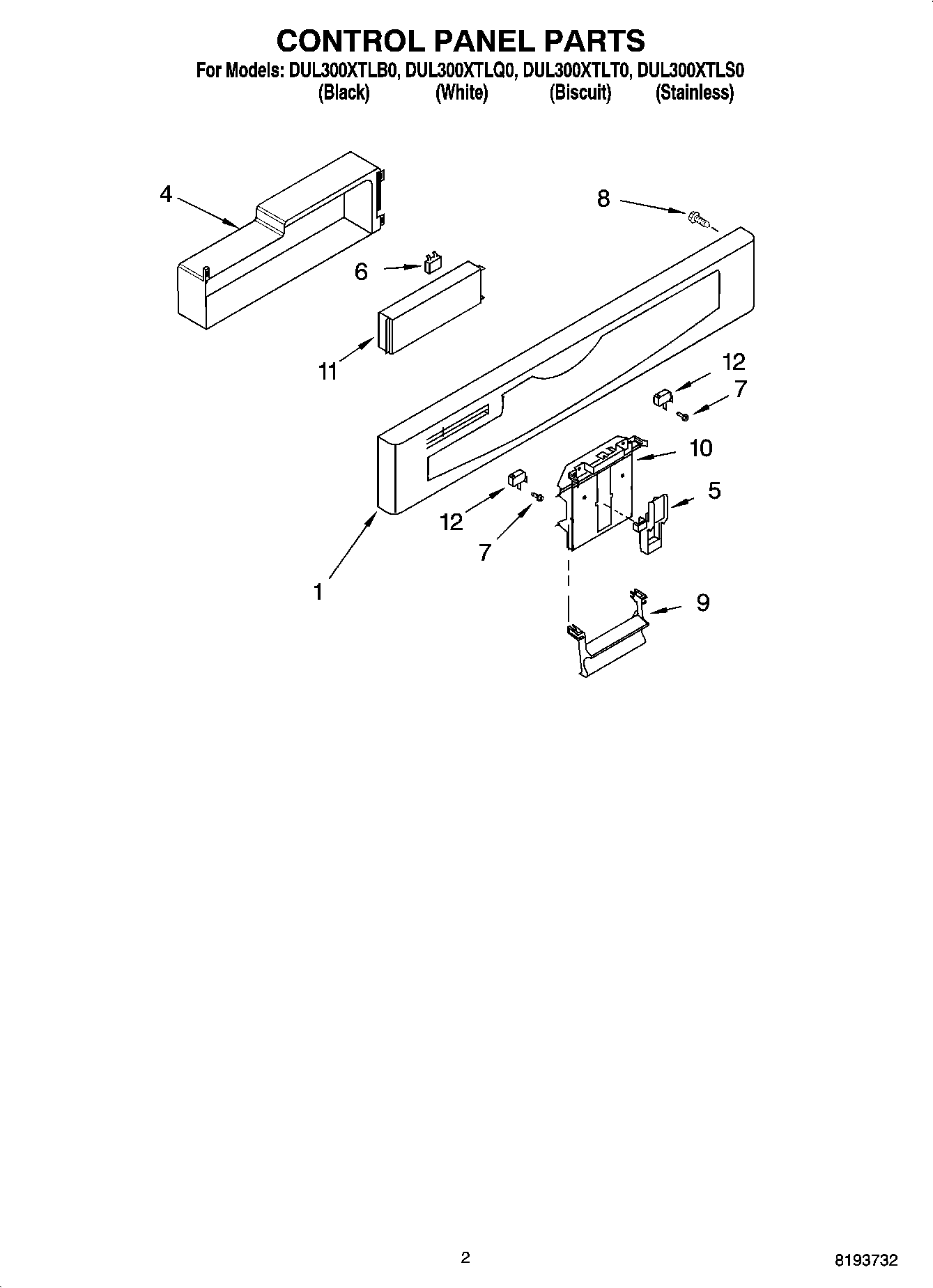

DUL300XTLS0 02 – CONTROL PANEL PARTS

DUL300XTLS0 02 – CONTROL PANEL PARTS

Written by

in

DUL300XTLS0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Asm. includes Active Overlay & Insert (Biscuit)
1Console Asm. includes Active Overlay & Insert (White)
1Console Asm. includes Active Overlay & Insert (Black)
4Cover Control Shield Assembly
5WP8524471 Whirlpool Dishwasher Actuator
68193762 Whirlpool Fuse Kit
7WP3400412 Whirlpool Dishwasher Screw
8WPW10348409 Whirlpool Screw
9WP8269323 Whirlpool Dishwasher Handle
108193882 Whirlpool Dishwasher Primary Latch Bolt
11Control, Electronic
12WP8269209 Whirlpool Door Switch
