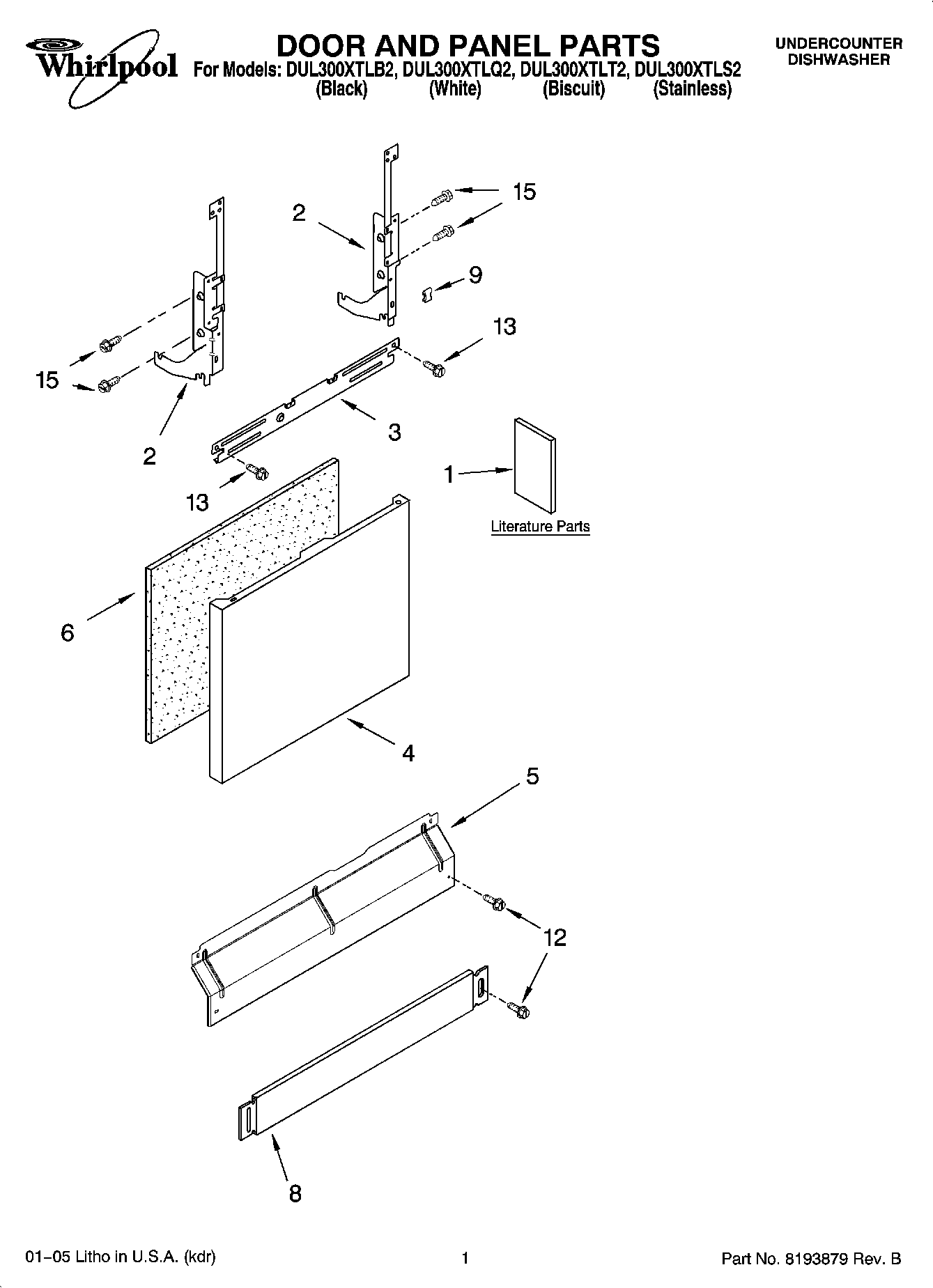

DUL300XTLS2 01 – DOOR AND PANEL PARTS

DUL300XTLS2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Literature Parts (Energy Guide)
1Literature Parts (Guide, Use & Care Tech Sheet)
1Instructions, Installation
1Literature Parts (English/French)
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4Panel Front (White)
4W10301571 Whirlpool Dishwasher Panel
4W10384707 Whirlpool Dishwasher Panel
4W10301577 Whirlpool Outer Door Panel
5W10909066 Whirlpool Dishwasher Panel
5W10871198 Whirlpool Dishwasher Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
8W10909064 Whirlpool Dishwasher Black Access Panel
8WPW10586591 Whirlpool Dishwasher Toe Panel
8Toe Panel (Biscuit)
9Clip, Grounding
12WP302868 Whirlpool Screw
12WPW10503550 Whirlpool Dishwasher Retainer
12WPW10503549 Whirlpool Dishwasher Retainer Clip
13WP489069 Whirlpool Compactor Screw
15WPW10109200 Whirlpool Screw
