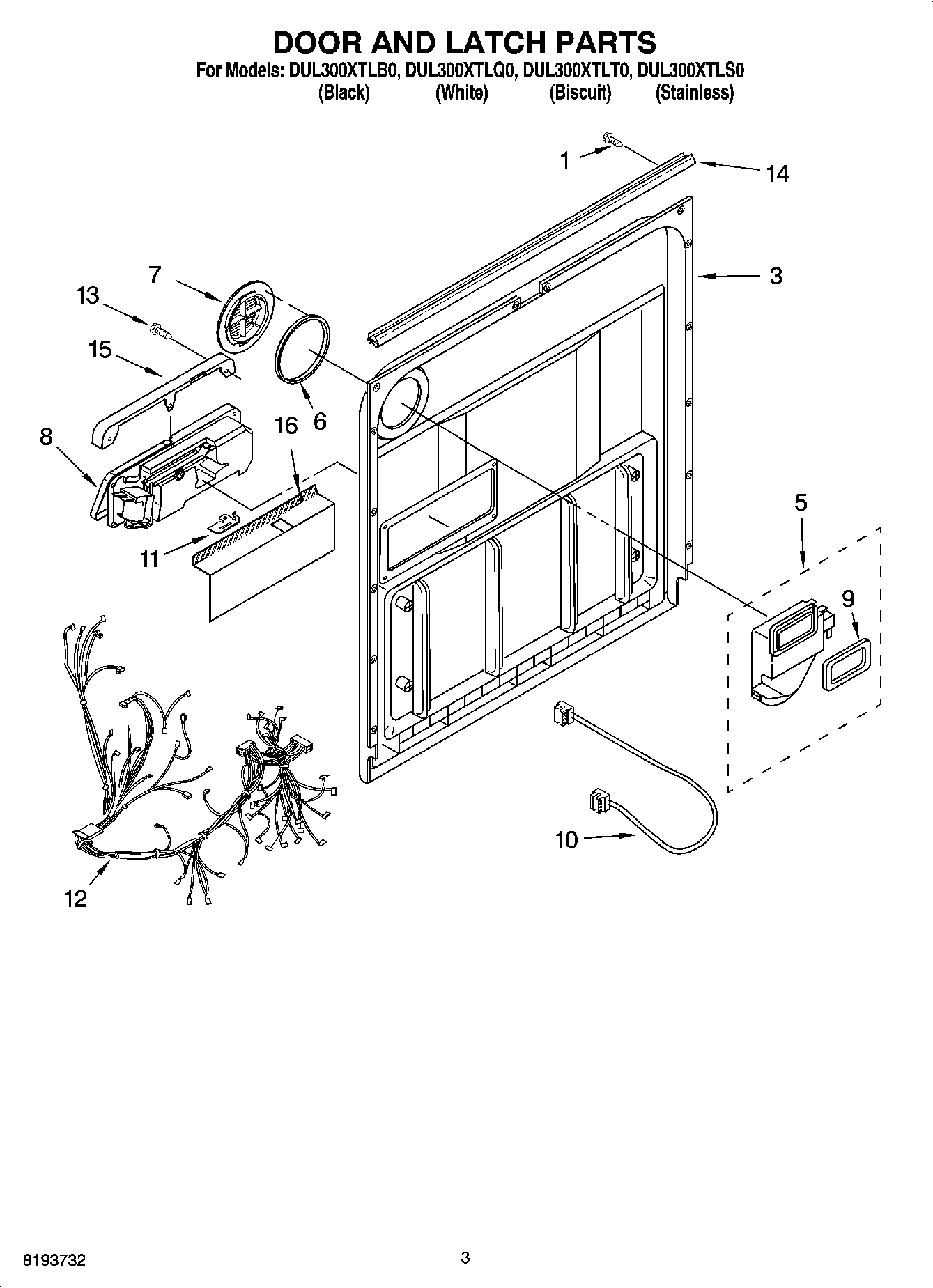

DUL300XTLT0 03 – DOOR AND LATCH PARTS

Products

Position	Product
1	WPW10348409 Whirlpool Screw
3	WP8269311 Whirlpool Dishwasher Inner Door
5	WP8545533 Whirlpool Dishwasher Vent
6	WP8269259 Whirlpool Air Vent Gasket
7	DEFLECTOR
8	Dispenser, Assembly
9	WP8269258 Whirlpool Dishwasher Gasket
10	Dispenser, Wiring Harness
11	WP8533381 Whirlpool Dishwasher Sensor
12	Wiring Harness & Protector
13	WPW10177098 Whirlpool Dishwasher Screw
14	WP8269296 Whirlpool Dishwasher Seal
15	WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
16	Shield, Dispenser
