DV306LGW 01 – BLOWER/HEATER/MOTOR – Aparts

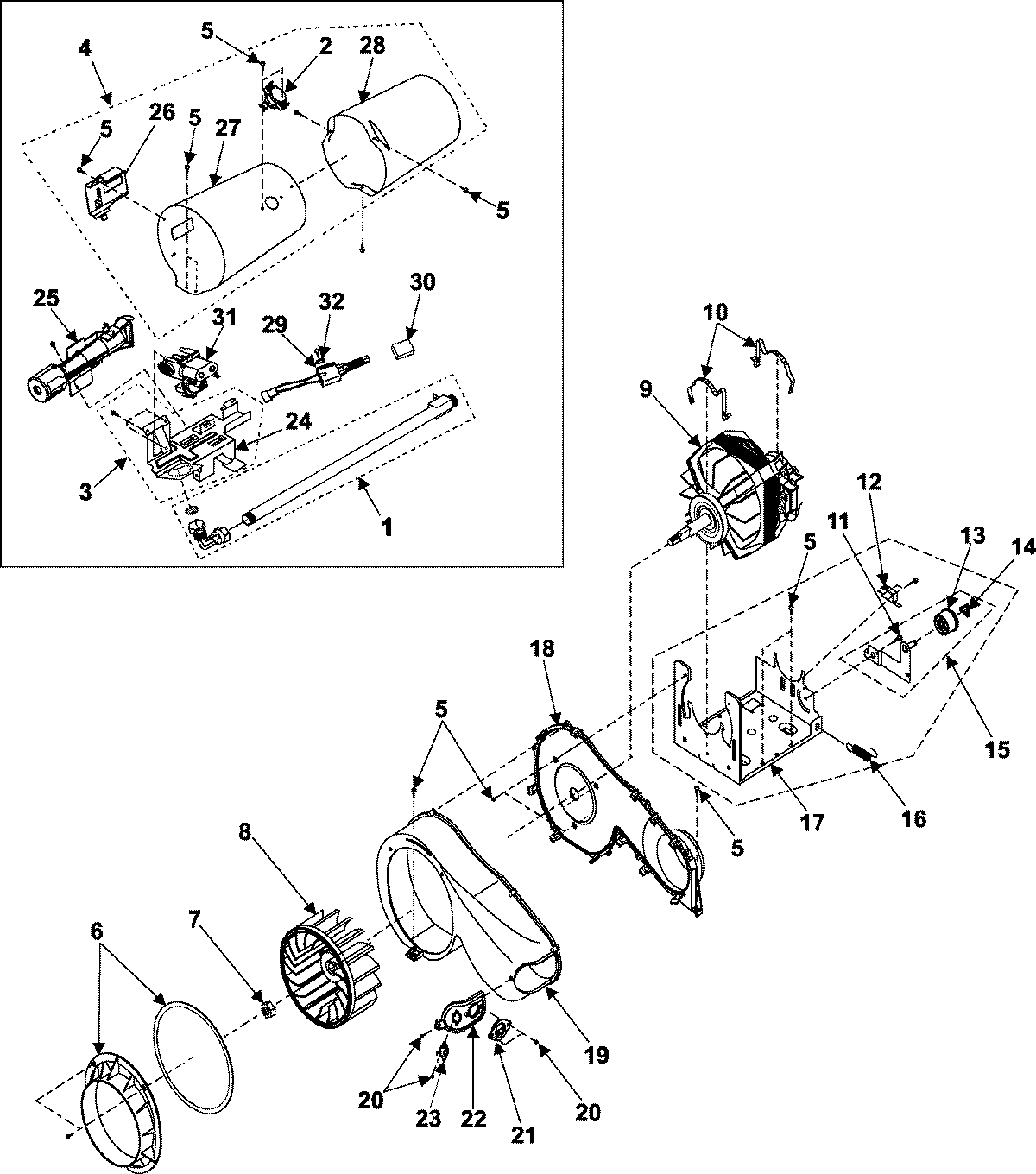

DV306LGW 01 – BLOWER/HEATER/MOTOR

Products

Position	Product
1	MAY DC99-00507A
2	MAY DC47-00017A
3	MAY DC96-00806A
4	MAY DC97-07602B
5	Screw-Tapping (5)
6	MAY DC97-07895A
7	MAY 6021-001201
8	MAY DC67-00180A
9	MAY DC31-00055A
10	MAY DC61-01214A
11	Retainer, Idler
12	MAY 3405-001077
13	MAY DC97-07509B
13	MAY DC66-00402A
13	MAY DC66-00401A
14	MAY DC61-01228A
15	MAY DC96-00882B
16	MAY DC61-01215A
17	MAY DC61-01213A
18	MAY DC61-01241A
19	MAY DC63-00536A
20	Screw-Tapping (4)
21	MAY DC32-00007A
22	MAY DC61-01240A
23	MAY DC47-00016A
24	MAY DC61-01232A
25	MAY DC62-00200A
26	MAY DC32-00008A
27	MAY DC67-00136B
28	MAY DC67-00137B
29	MAY DC47-00022A
30	MAY DC63-00623A
31	MAY DC62-00201A
32	SEE NOTE GROUND WIRE, GREEN
