DV316BGW 03 – CONTROL PANEL

DV316BGW 03 – CONTROL PANEL

Written by

in

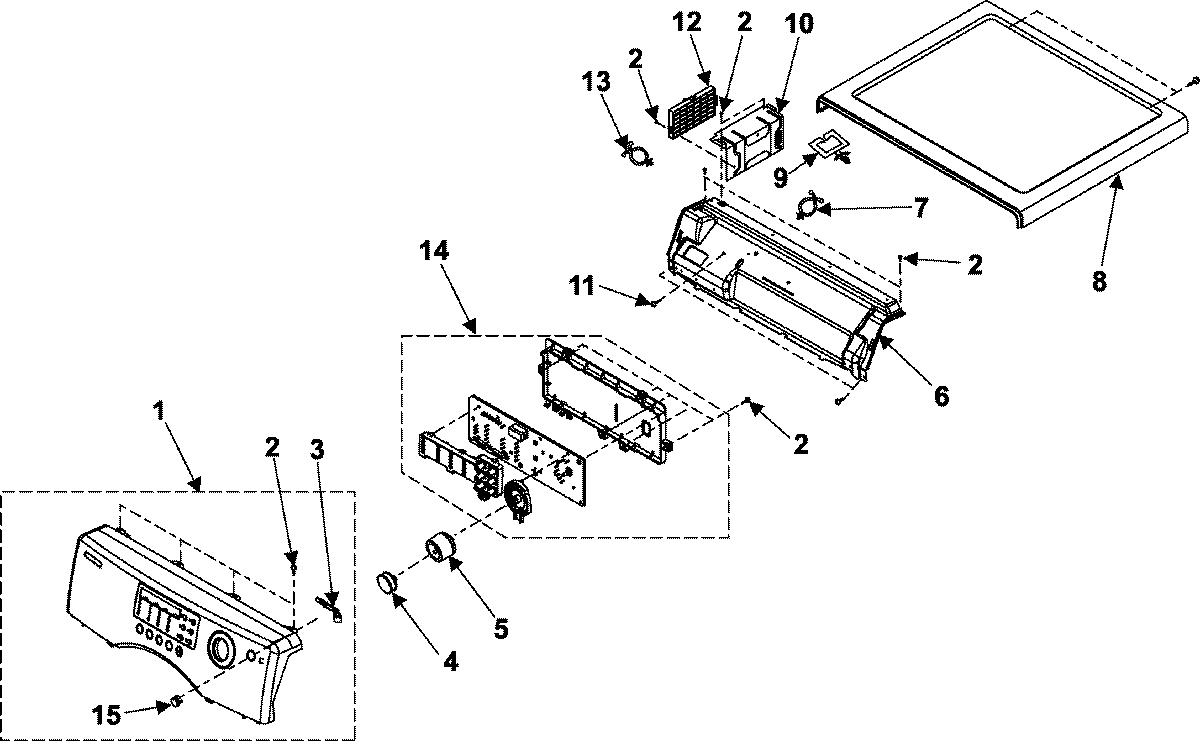

DV316BGW 03 – CONTROL PANEL

Products

PositionProduct
1MAY DC97-10866A
2Screw-Tapping (5)
3MAY DC66-00413A
4MAY DC64-01132A
5MAY DC97-10526A
6SEE NOTE GROUND WIRE, GREEN
7MAY DC61-40081A
8MAY DC63-00523A
9MAY DC61-60074A
10MAY DC61-01229A
11Screw-Tapping
12MAY MFS-FTDT-00
13MAY 6502-000127
14MAY YMFSF12DBS0
15MAY DC64-01105A
