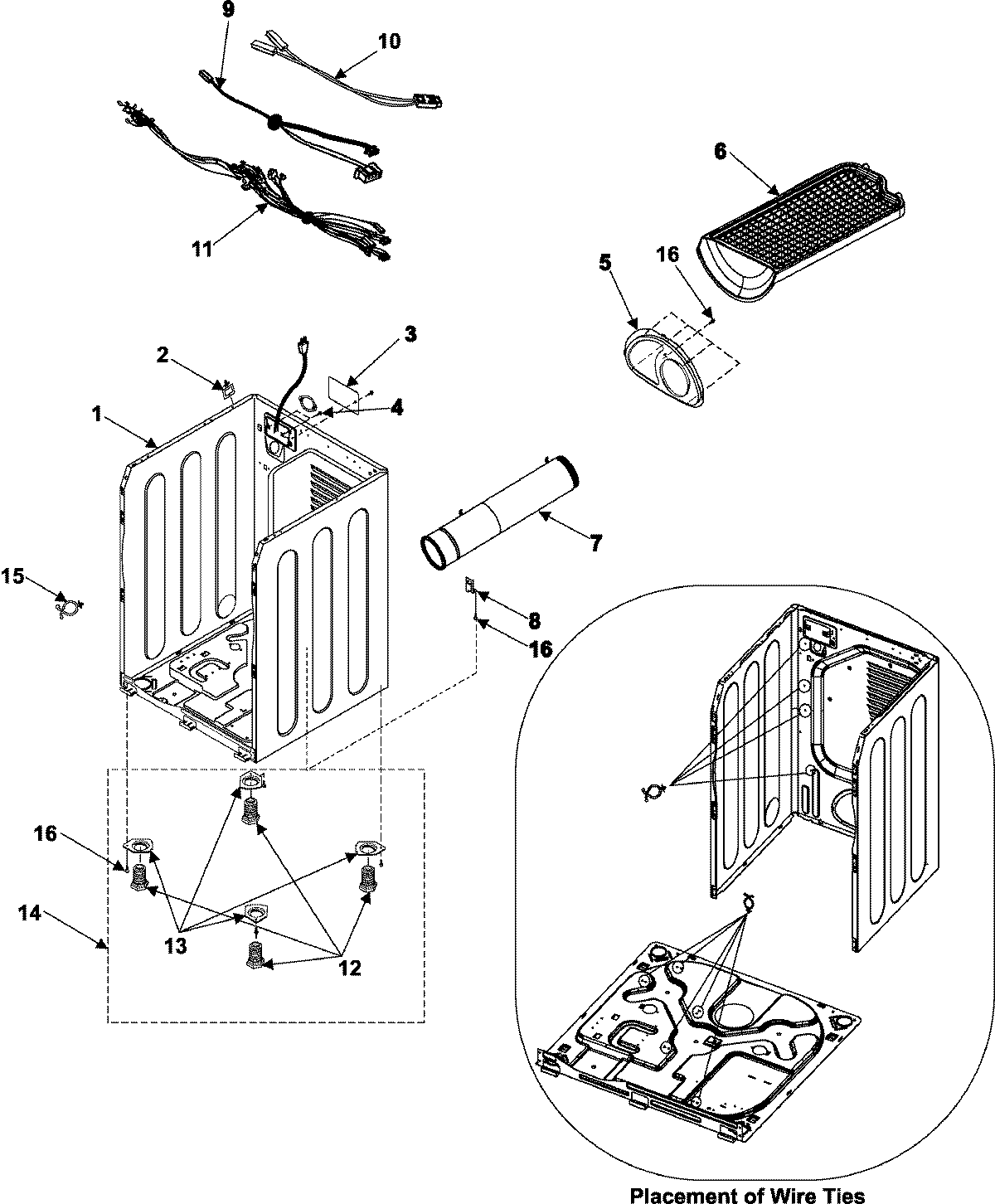

DV316LES 02 – CABINET

Products

PositionProduct
1SEE NOTE GROUND WIRE, GREEN
2MAY DC61-60074A
3MAY DC97-08855A
4Screw-Tapping (5)
5MAY DC63-00534B
6MAY DC61-01522A
7MAY DC97-07519A
8MAY DC61-01233A
9MAY DC96-00763A
10MAY DC96-00766A
11MAY DC96-00764C
12MAY DC61-01212A
13MAY DC61-01226A
14DC97-07514A Samsung Leg Assembly
15MAY DC61-40081A
166002-000239 Samsung Appliance Tapping Screw TH + No 2S M4
